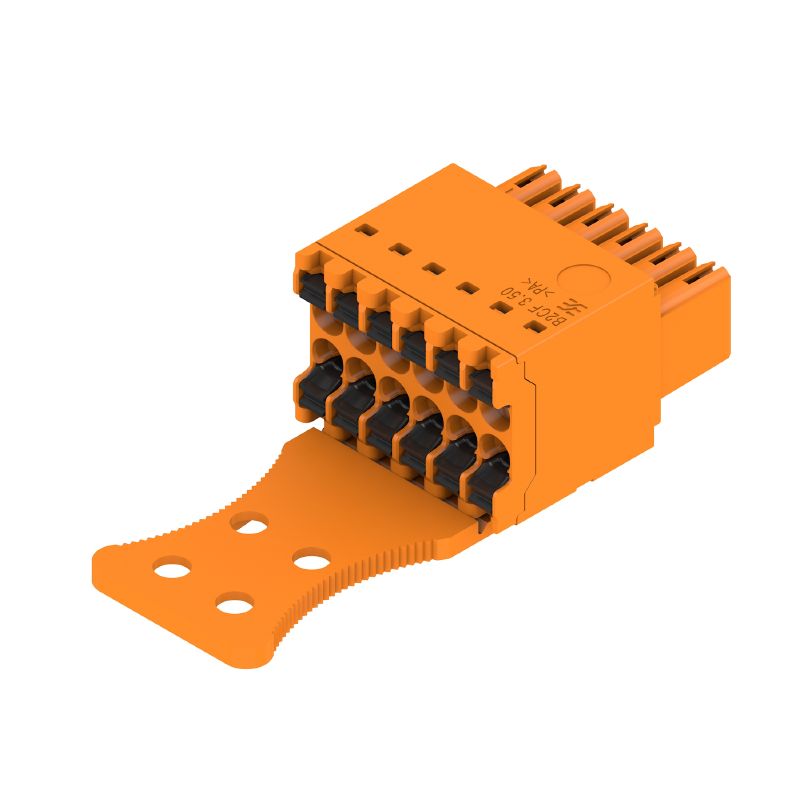

NYÁK dugaszoló csatlakozó, hüvelyes csatlakozó, 3.50 mm, Pólusszám: 12, 180°, PUSH IN, működtető gombbal, Rögzítési tartomány, névleges csatlakozás, max.: 1.5 mm², Doboz

Produkt-ID 2730830000
Ladda ner datablad Nedladdningar av produkter
Använda produkter 7
Omologazioni Általános rendelési adatok Dimensions et poids Termékek környezetvédelmi megfelelősége System Parameters Anyagjellemzők Csatlakoztatható vezetékek Données nominales selon CEI Dati di dimensionamento secondo CSA Dane znamionowe wg UL 1059 Csomagolás Controlli sulla tipologia Fontos megjegyzés Classificazioni

Omologazioni

ROHS
Conforme

Általános rendelési adatok

Version
NYÁK dugaszoló csatlakozó, hüvelyes csatlakozó, 3.50 mm, Pólusszám: 12, 180°, PUSH IN, működtető gombbal, Rögzítési tartomány, névleges csatlakozás, max.: 1.5 mm², Doboz
Order No.
2730830000
Type
B2CF 3.50/12/180ZE SN OR BX
GTIN (EAN)
4050118807745
Qté.
84 items
Product data
IEC: 320 V / 13.4 A / 0.14 - 1.5 mm²
UL: 300 V / 9.5 A / AWG 30 - AWG 16
Packaging
Box

Dimensions et poids

Depth
49,04 mm
Mélység (coll)
1,931 inch
Height
15,2 mm
Altezza (pollici)
0,598 inch
Width
21 mm
폭 (인치)
0,827 inch
Net weight
7,898 g

Termékek környezetvédelmi megfelelősége

Statut de conformité RoHS
Megfelel, kivétel nélkül
REACH SVHC
No SVHC superiori a 0,1 wt%
Empreinte carbone du produit
  • Cradle to gate:
    0.313 kg CO2eq.

System Parameters

Product family
OMNIMATE Signal - sorozat B2C/S2C 3.50 - 2-soros
Type of connection
Collegamento al campo
Wire connection method
작동 버튼으로 PUSH IN
Pitch in mm (P)
3,5 mm
Pitch in inches (P)
0,138 "
Conductor outlet direction
180°
Number of poles
12
L1 in mm
17,5 mm
L1 in inches
0,689 "
Number of rows
1
Pin series quantity
2
Rated cross-section
15 mm²
Touch-safe protection acc. to DIN VDE 57 106
защита от доступа пальцем
Touch-safe protection acc. to DIN VDE 0470
IP20 plugged
Protection degree
IP20
when fully mounted
Can be coded
Yes
Stripping length
10 mm
Screwdriver blade
0.4 x 2.5
相关标准
DIN 5264
Stickcykler
25
Max. instickskraft/pol
3,5 N
Max. dragkraft/pol
3,5 N

Anyagjellemzők

Matériau isolant
PA 66 GF 30
Couleur
narancssárga
Éléments d'actionnement de couleurs
nero
Tableau des couleurs (similaire)
RAL 2000과 유사
Groupe de matériaux isolants
II
Indice de Poursuite Comparatif (CTI)
≥ 600
Résistance d'isolation
≥ 108 Ω
Klasa palności wg UL 94
V-0
Matériau des contacts
Сплав медный
Surface du contact
tinned
Structure en couches du contact mâle
2...5 µm Sn hot-dip tinned
Lagertemperatur, min.
−40 °C
Lagertemperatur, max.
70 °C
Driftstemperatur, min.
−50 °C
Driftstemperatur, max
120 °C
Temperaturområde Montage, min.
−40 °C
Temperaturområde Montage, max.
120 °C

Csatlakoztatható vezetékek

Plage de serrage, min.
0,14 mm²
Plage de serrage, max.
1,5 mm²
Section de raccordement du conducteur, AWG, min.
AWG 30
Section de raccordement du conducteur, AWG, max.
AWG 16
Rigide, min. H05(07) V-U
0,14 mm²
Rigide, max. H05(07) V-U
1,5 mm²
souple, min. H05(07) V-K
0,14 mm²
souple, max. H05(07) V-K
1,5 mm²
w. plastic collar ferrule, DIN 46228 pt 4, min.
0,14 mm²
avec embout isolé DIN 46 228/4, max.
1 mm²
avec embout, DIN 46228 pt 1, min.
0,14 mm²
avec embout selon DIN 46 228/1, max.
1,5 mm²
Clampable conductor
  • Cross-section for conductor connection:
    • nominal:
      0,14 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        10 mm
    • Recommended wire-end ferrule:
      9028240000
  • Cross-section for conductor connection:
    • nominal:
      0,25 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        10 mm
    • Recommended wire-end ferrule:
      9025780000
  • Cross-section for conductor connection:
    • nominal:
      0,34 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        10 mm
    • Recommended wire-end ferrule:
      9025790000
  • Cross-section for conductor connection:
    • nominal:
      0,5 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        12 mm
    • Recommended wire-end ferrule:
      9028270000
    • Stripping length:
      • nominal:
        10 mm
    • Recommended wire-end ferrule:
      9004050000
  • Cross-section for conductor connection:
    • nominal:
      0,75 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        12 mm
    • Recommended wire-end ferrule:
      9028290000
    • Stripping length:
      • nominal:
        10 mm
    • Recommended wire-end ferrule:
      0542500000
  • Cross-section for conductor connection:
    • nominal:
      1
  • wire end ferrule:
    • Stripping length:
      • nominal:
        12 mm
    • Recommended wire-end ferrule:
      9028320000
    • Stripping length:
      • nominal:
        10 mm
    • Recommended wire-end ferrule:
      0282800000
  • Cross-section for conductor connection:
    • nominal:
      1,5 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        10 mm
    • Recommended wire-end ferrule:
      0186500000
Texte de réference
The outside diameter of the plastic collar should not be larger than the pitch (P)
Length of ferrules is to be chosen depending on the product and the rated voltage.

Données nominales selon CEI

testé selon la norme
IEC 60664-1
IEC 61984
Courant nominal, nombre de pôles min. (Tu = 20 °C)
13,4 A
Courant nominal, nombre de pôles max. (Tu = 20 °C)
10 A
Courant nominal, nombre de pôles min. (Tu = 40 °C)
12 A
Courant nominal, nombre de pôles max. (Tu = 40 °C)
9 A
Tension de choc nominale pour classe de surtension/Degré de pollution II/2
320 V
Tension de choc nominale pour classe de surtension/Degré de pollution III/2
160 V
Tension de choc nominale pour classe de surtension/Degré de pollution III/3
160 V
Tension de choc nominale pour classe de surtension/Degré de pollution II/2
2,5 kV
Tension de choc nominale pour classe de surtension/Degré de pollution III/2
2,5 kV
Tension de choc nominale pour classe de surtension/Degré de pollution III/3
2,5 kV
Tenue aux courants de faible durée
3 x 1s with 80 A

Dati di dimensionamento secondo CSA

Rated voltage (Use group B / CSA)
300 V
Rated voltage (Use group C / CSA)
50 V
Rated voltage (Use group D / CSA)
300 V
Rated current (Use group B / CSA)
9,5 A
Rated current (Use group C / CSA)
9,5 A
Rated current (Use group D / CSA)
9,5 A
Wire cross-section, AWG, min.
AWG 30
Wire cross-section, AWG, max.
AWG 16

Dane znamionowe wg UL 1059

Rated voltage (Use group B / UL 1059)
300 V
Rated voltage (Use group C / UL 1059)
50 V
Rated voltage (Use group D / UL 1059)
300 V
Rated current (Use group B / UL 1059)
9,5 A
Rated current (Use group C / UL 1059)
9,5 A
Rated current (Use group D / UL 1059)
9,5 A
Section de raccordement de câble AWG, min.
AWG 30
Wire cross-section, AWG, max.
AWG 16

Csomagolás

Packaging
Doboz
VPE length
354 mm
VPE width
137 mm
VPE height
62 mm

Controlli sulla tipologia

Test: Durability of markings
  • Standard:
    IEC 61984 sezione 6.2 e 7.3.2 / 10.11 prendendo lo schema da IEC 60068-2-70 / 12.95
  • Test:
    siglatura di origine, identificazione della tipologia, passo, tipo di materiale, orologio della data, siglatura di omologazione UL, siglatura di omologazione cULus
  • Valutazione:
    disponibile
  • Test:
    robustezza
  • Valutazione:
    passato
Test: Misengagement (Non-interchangeability)
  • 표준:
    IEC 61984 섹션 6.3 및 6.9.1 / 10.11, IEC 60512-13-5 / 02.06
  • 테스트:
    180 회전, 코딩 요소 불포함
  • 평가:
    통과
  • 테스트:
    180° 회전, 코딩 요소 포함
  • 평가:
    통과
  • 테스트:
    육안 검사
  • 평가:
    통과
Test: Clampable cross section
  • 표준:
    IEC 60999-1 섹션 7 및 9.1 / 11.99, IEC 60947-1 섹션 8.2.4.5.1 / 03.11
  • 컨덕터 유형:
    • 컨덕터 유형 및 컨덕터 단면:
      경질 0.14 mm²
    • 컨덕터 유형 및 컨덕터 단면:
      꼬임 0.14 mm²
    • 컨덕터 유형 및 컨덕터 단면:
      경질 1.5 mm²
    • 컨덕터 유형 및 컨덕터 단면:
      꼬임 1.5 mm²
    • 컨덕터 유형 및 컨덕터 단면:
      AWG 26/1
    • 컨덕터 유형 및 컨덕터 단면:
      AWG 26/19
    • 컨덕터 유형 및 컨덕터 단면:
      AWG 16/1
    • 컨덕터 유형 및 컨덕터 단면:
      AWG 16/19
  • 평가:
    통과
Test for damage to and accidental loosening of conductors
  • Standard:
    IEC 60999-1 section 9.4 / 11.99
  • Requirement:
    0.2 kg
  • Conductor type:
    • Type of conductor and conductor cross-section:
      AWG 26/1
    • Type of conductor and conductor cross-section:
      AWG 26/19
  • Evaluation:
    passed
  • Requirement:
    0.3 kg
  • Conductor type:
    • Type of conductor and conductor cross-section:
      H05V-U0.75
    • Type of conductor and conductor cross-section:
      H05V-K0.75
  • Evaluation:
    passed
  • Requirement:
    0.4 kg
  • Conductor type:
    • Type of conductor and conductor cross-section:
      H07V-U1.5
    • Type of conductor and conductor cross-section:
      H07V-K1.5
    • Type of conductor and conductor cross-section:
      AWG 16/1
    • Type of conductor and conductor cross-section:
      AWG 16/19
  • Evaluation:
    passed
Pull-out test
  • 표준:
    IEC 60999-1 섹션 9.5 / 11.99
  • 요구 사항:
    ≥10 N
  • Conductor type:
    • Type of conductor and conductor cross-section:
      AWG 26/1
    • Type of conductor and conductor cross-section:
      AWG 26/19
  • Ocena:
    sprawdzony
  • Требование:
    ≥20 N
  • Тип проводника:
    • Typ av ledare och för ledararea:
      H05V-U0.75
    • Typ av ledare och för ledararea:
      H05V-K0.75
  • Utvärdering:
    passed
  • Requirement:
    ≥40 N
  • 导线类型:
    • Type of conductor and conductor cross-section:
      H07V-U1.5
    • Type of conductor and conductor cross-section:
      H07V-K1.5
    • Type of conductor and conductor cross-section:
      AWG 16/1
    • Type of conductor and conductor cross-section:
      AWG 16/19
  • Evaluation:
    passed

Fontos megjegyzés

Conformité IPC
A termékek fejlesztése, gyártása és szállítása a nemzetközileg elismert IPC-A-610 szabvány „megengedhető” kategóriája szerint történt. A termékekkel kapcsolatos további követelményeket kérésre kiértékeljük.
Notes

• Altre varianti su richiesta
• A richiesta contatti con superfici dorate
• Corrente nominale relativa alla sezione nominale e al numero min. di poli
• Per crimpare i terminali si consiglia la forma di crimpatura A della pinza PZ 1,5 (cod. art. 9005990000) o, per conduttori con sezioni maggiori, la PZ 6/5 (cod. art. 9011460000).
• P su disegno = passo
• I dati di dimensionamento si riferiscono ai singoli componenti. Per le distanze in aria e superficiali rispetto agli altri componenti, fare riferimento alle relative norme in funzione dell'applicazione.
• Diametro max. del conduttore 2,6 mm
• In conformità alla norma IEC 61984, i connettori OMNIMATE sono connettori senza potere di interruzione (COC). Durante l'uso designato non è consentito innestare o disinnestare connettori sotto tensione o sotto carico
• Stoccaggio a lungo termine del prodotto con una temperatura media di 50 °C e un’umidità massima del 70 %, 36 mesi

Classificazioni

ETIM 8.0
EC002638
ETIM 9.0
EC002638
ETIM 10.0
EC002638
ECLASS 14.0
27-46-02-02
ECLASS 15.0
27-46-02-02
