BLF 5.08HC/05/180DF SN OR BX

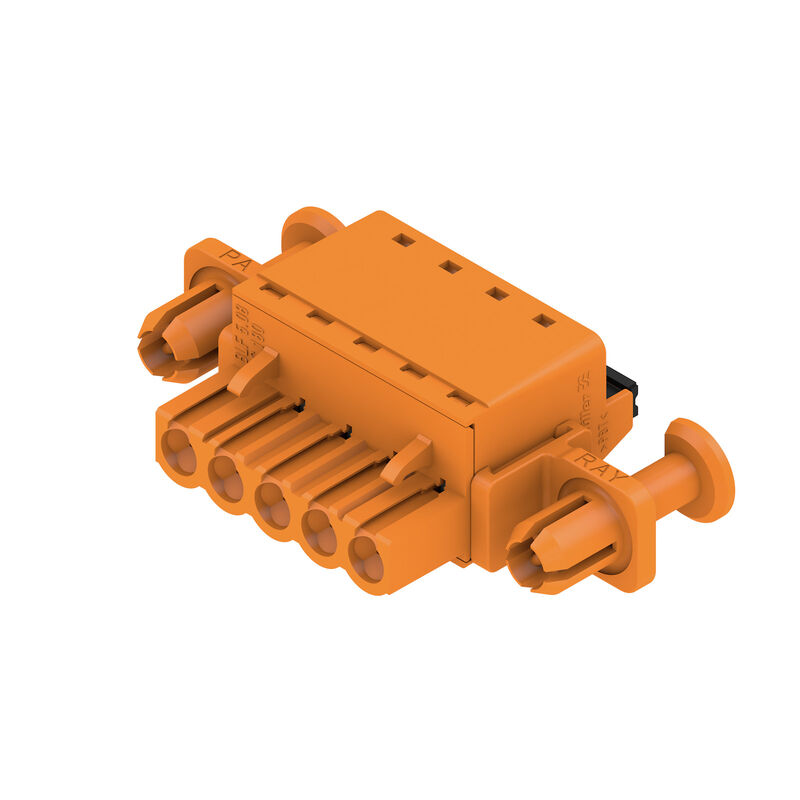

Product image
BLF 5.08HC/05/180DF SN OR BX

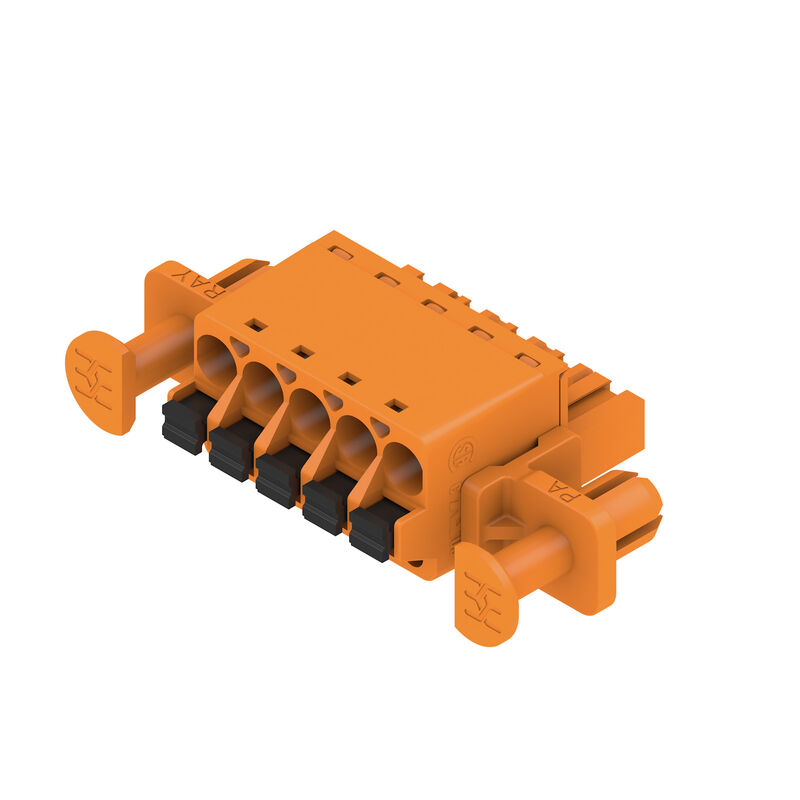

Product image
BLF 5.08HC/05/180DF SN OR BX
Dimensional drawing
BLF 5.08HC/05/180DF SN OR BX
Graph
BLF 5.08HC/05/180DF SN OR BX
Graph
BLF 5.08HC/05/180DF SN OR BX
Product benefits
Uncompromising functionality
High vibration resistance
BLF 5.08HC/05/180DF SN OR BX
Product benefits
Solid PUSH IN contact
Safe and durable
BLF 5.08HC/05/180DF SN OR BX
Product benefits
Cost-effective wiring
Quick and intuitive operation
BLF 5.08HC/05/180DF SN OR BX
Product benefits
Wide clamping range
Tool-free wire connection

BLF 5.08HC/05/180DF SN OR BX

Connettore per circuito stampato, Connettore femmina, 5.08 mm, Numero di poli: 5, 180°, PUSH IN con attuatore, Campo di sezioni, max. : 3.31 mm², Box

Product ID 1353280000
Gegevensblad downloaden Engineeringondersteuning Productdownloads
Toebehoren 4 Contradelen 5 Verwante producten 9
Tanúsítványok Dati generali per l’ordinazione Méretek és tömegek Conformità ambientale del prodotto Parametri del sistema Dati del materiale Csatlakoztatható vezetékek Données nominales selon CEI CSA névleges adatok Rated data acc. to UL 1059 Imballaggio 유형 테스트 중요 참고 사항 Klasyfikacje

Tanúsítványok

Approvals
![](https://assets.dam.weidmueller.com/assets/api/7849a070-6e16-4866-9b5a-c610b7f622e5/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/33feeb02-46e9-4a14-9d79-8ec5ee409fe3/DAP_Master_ICON,w_80,q_80)
ROHS
Соответствовать
UL File Number Search
[UL-webbplats](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificat Nº (cURus)
E60693

Dati generali per l’ordinazione

Version
Connettore per circuito stampato, Connettore femmina, 5.08 mm, Numero di poli: 5, 180°, PUSH IN con attuatore, Campo di sezioni, max. : 3.31 mm², Box
Order No.
1353280000
Type
BLF 5.08HC/05/180DF SN OR BX
GTIN (EAN)
4050118155655
Qty.
36 adet
Product data
IEC: 400 V / 24 A / 0.2 - 2.5 mm²
UL: 300 V / 18.5 A / AWG 26 - AWG 12
Packaging
Box

Méretek és tömegek

Depth
27,7 mm
Profondeur (pouces)
1,091 inch
Height
14,2 mm
Wysokość (cale)
0,559 inch
Width
49,6 mm
Ширина (в дюймах)
1,953 inch
Net weight
11,718 g

Conformità ambientale del prodotto

RoHS Compliance Status
Conforme senza esenzione
REACH SVHC
Нет SVHC выше 0,1 wt%
Empreinte carbone du produit
  • Vagga till grind:
    0 kg CO2 eq.

Parametri del sistema

Product family
OMNIMATE Signal - Serie BL/SL 5.08
Type of connection
필드 결선
Wire connection method
PUSH IN с исполнительным устройством
Pitch in mm (P)
5,08 mm
Pitch in inches (P)
0,2 "
Conductor outlet direction
180°
Number of poles
5
L1 en mm
20,32 mm
L1 en pulgadas
0,8 "
Number of rows
1
Pin series quantity
1
Rated cross-section
2,5 mm²
Protection au toucher selon DIN VDE 57 106
Safe from finger touch
Touch-safe protection acc. to DIN VDE 0470
IP20 plugged/ IP10 unplugged
Protection degree
IP20
Volume resistance
≤5 mΩ
Codificable
Yes
Longueur de dénudage
10 mm
Screwdriver blade
0.6 x 3.5
Screwdriver blade standard
DIN 5264
Plugging cycles
25
Plugging force/pole, max.
7 N
Pulling force/pole, max.
5,5 N

Dati del materiale

Matériau isolant
PBT
Couleur
주황색
Éléments d'actionnement de couleurs
czarny
Colour chart (similar)
RAL 2000
Groupe de matériaux isolants
IIIa
Comparative Tracking Index (CTI)
≥ 200
UL 94 flammability rating
V-0
Contact material
Cu-alloy
Surface du contact
tinned
Layer structure of plug contact
4...8 µm Sn hot-dip tinned
Storage temperature, min.
-40 °C
Storage temperature, max.
70 °C
Operating temperature, min.
-50 °C
Operating temperature, max.
100 °C
Temperature range, installation, min.
-30 °C
Temperature range, installation, max.
100 °C

Csatlakoztatható vezetékek

Clamping range, min.
0,13 mm²
Clamping range, max.
3,31 mm²
Wire connection cross section AWG, min.
AWG 26
Wire connection cross section AWG, max.
AWG 12
Solid, min. H05(07) V-U
0,2 mm²
Solid, max. H05(07) V-U
2,5 mm²
souple, min. H05(07) V-K
0,2 mm²
souple, max. H05(07) V-K
2,5 mm²
w. plastic collar ferrule, DIN 46228 pt 4, min.
0,25 mm²
avec embout isolé DIN 46 228/4, max.
2,5 mm²
avec embout, DIN 46228 pt 1, min.
0,25 mm²
w. wire end ferrule, DIN 46228 pt 1, max.
2,5 mm²
Jauge à bouchon selon EN 60999 a x b ; ø
2.8 mm x 2.0 mm
Clampable conductor
  • Cross-section for conductor connection:
    • Type:
      fine-wired
    • nominal:
      0,5 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        12 mm
    • Recommended wire-end ferrule:
      9025870000
    • Stripping length:
      • nominal:
        10 mm
    • Recommended wire-end ferrule:
      9004050000
  • Cross-section for conductor connection:
    • Type:
      fine-wired
    • nominal:
      0,75 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        12 mm
    • Recommended wire-end ferrule:
      9025860000
    • Stripping length:
      • nominal:
        10 mm
    • Recommended wire-end ferrule:
      0542500000
  • Cross-section for conductor connection:
    • Type:
      fine-wired
    • nominal:
      1 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        12 mm
    • Recommended wire-end ferrule:
      9019100000
    • Stripping length:
      • nominal:
        10 mm
    • Recommended wire-end ferrule:
      0282800000
  • Cross-section for conductor connection:
    • Type:
      fine-wired
    • nominal:
      1,5 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        10 mm
    • Recommended wire-end ferrule:
      0186500000
    • Stripping length:
      • nominal:
        12 mm
    • Recommended wire-end ferrule:
      0635100000
  • Cross-section for conductor connection:
    • Type:
      fine-wired
    • nominal:
      2,5 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        10 mm
    • Recommended wire-end ferrule:
      9004080000
    • Stripping length:
      • nominal:
        10 mm
    • Recommended wire-end ferrule:
      1333100000
Reference text
The outside diameter of the plastic collar should not be larger than the pitch (P)
Length of ferrules is to be chosen depending on the product and the rated voltage.

Données nominales selon CEI

testé selon la norme
IEC 60664-1
IEC 61984
Courant nominal, nombre de pôles min. (Tu = 20 °C)
24 A
Courant nominal, nombre de pôles max. (Tu = 20 °C)
19 A
Rated current, min. number of poles (Tu=40°C)
21 A
Courant nominal, nombre de pôles max. (Tu = 40 °C)
16,5 A
Tension de choc nominale pour classe de surtension/Degré de pollution II/2
400 V
Tension de choc nominale pour classe de surtension/Degré de pollution III/2
320 V
Tension de choc nominale pour classe de surtension/Degré de pollution III/3
250 V
Tension de choc nominale pour classe de surtension/Degré de pollution II/2
4 kV
Tension de choc nominale pour classe de surtension/Degré de pollution III/2
4 kV
Tension de choc nominale pour classe de surtension/Degré de pollution III/3
4 kV
Short-time withstand current resistance
3 x 1s with 120 A

CSA névleges adatok

Institute (CSA)
CSA
Certificate No. (CSA)
200039-1121690
Rated voltage (Use group B / CSA)
300 V
Rated voltage (Use group D / CSA)
300 V
Rated current (Use group D / CSA)
10 A
Wire cross-section, AWG, min.
AWG 26
Wire cross-section, AWG, max.
AWG 12
Reference to approval values
Specifications are maximum values, details - see approval certificate.

Rated data acc. to UL 1059

Institute (cURus)
CURUS
Núm. de certificación (cURus)
E60693
Tensión nominal (Use Group B / UL 1059)
300 V
Rated voltage (Use group D / UL 1059)
300 V
Rated current (Use group B / UL 1059)
18,5 A
Rated current (Use group D / UL 1059)
10 A
Wire cross-section, AWG, min.
AWG 26
Sección de conexión del conductor AWG, máx.
AWG 12
Reference to approval values
Specifications are maximum values, details - see approval certificate.

Imballaggio

Packaging
Box
VPE length
351 mm
VPE width
135 mm
VPE height
38 mm

유형 테스트

Test: Durability of markings
  • 표준:
    DIN EN 61984 섹션 7.3.2 / 09.02, DIN EN 60068-2-70 / 07.96에서 패턴 가져옴
  • 테스트:
    원산지 표시, 유형 식별, 피치, 재질 유형, 날짜 시계
  • 평가:
    사용 가능
  • 테스트:
    내구성
  • 평가:
    통과
Test: Misengagement (Non-interchangeability)
  • Стандарт:
    DIN EN 61984, раздел 6.3 и 6.9.1/09.02, DIN EN 60512-13-5 / 11.08
  • Испытание:
    развернуто на 180° с кодирующими элементами
  • Оценивание:
    пройдено
  • Испытание:
    визуальный контроль
  • Оценивание:
    пройдено
Test: Clampable cross section
  • Standard:
    DIN EN 60999-1 avsnitt 7 och 9.1 / 12.00, DIN EN 60947-1 avsnitt 8.2.4.5.1 / 04.08
  • Typ av ledare:
    • Typ av ledare och för ledararea:
      massiv 0,2 mm²
    • Typ av ledare och för ledararea:
      flertrådig 0,2 mm²
    • Typ av ledare och för ledararea:
      massiv 2,5 mm²
    • Typ av ledare och för ledararea:
      flertrådig 2,5 mm²
    • Typ av ledare och för ledararea:
      AWG 26/1
    • Typ av ledare och för ledararea:
      AWG 26/19
    • Typ av ledare och för ledararea:
      AWG 14/1
    • Typ av ledare och för ledararea:
      AWG 14/19
  • Utvärdering:
    godkänd
Test for damage to and accidental loosening of conductors
  • Standard:
    DIN EN 60999-1 section 9.4 / 12.00
  • Requirement:
    0.2 kg
  • Conductor type:
    • Type of conductor and conductor cross-section:
      AWG 26/1
    • Type of conductor and conductor cross-section:
      AWG 26/19
  • Evaluation:
    passed
  • Requirement:
    0.3 kg
  • Conductor type:
    • Type of conductor and conductor cross-section:
      H05V-U0.5
    • Type of conductor and conductor cross-section:
      H05V-K0.5
  • Evaluation:
    passed
  • Requirement:
    0.7 kg
  • Conductor type:
    • Type of conductor and conductor cross-section:
      H07V-U2.5
    • Type of conductor and conductor cross-section:
      H07V-K2.5
  • Evaluation:
    passed
  • Requirement:
    0.9 kg
  • Conductor type:
    • Type of conductor and conductor cross-section:
      AWG 12/1
    • Type of conductor and conductor cross-section:
      AWG 12/19
  • Evaluation:
    passed
Pull-out test
  • Standard:
    DIN EN 60999-1 section 9.5 / 12.00
  • Requirement:
    ≥10 N
  • Conductor type:
    • Type of conductor and conductor cross-section:
      AWG 26/1
    • Type of conductor and conductor cross-section:
      AWG 26/19
  • Evaluation:
    passed
  • Requirement:
    ≥20 N
  • Conductor type:
    • Type of conductor and conductor cross-section:
      H05V-K0.5
    • Type of conductor and conductor cross-section:
      H05V-U0.5
  • Evaluation:
    passed
  • Requirement:
    ≥50 N
  • Conductor type:
    • Type of conductor and conductor cross-section:
      H07V-U2.5
    • Type of conductor and conductor cross-section:
      H07V-K2.5
  • Evaluation:
    passed
  • Requirement:
    ≥60 N
  • Conductor type:
    • Type of conductor and conductor cross-section:
      AWG 12/1
    • Type of conductor and conductor cross-section:
      AWG 12/19
  • Evaluation:
    passed

중요 참고 사항

IPC conformity
적합성:본 제품은 국제 공인 표준 및 기준에 따라 개발, 제조 및 납품되고, 해당 데이터 시트에 명시된 보증 특성을 준수하며 IPC-A-610 "Class 2"에 따른 디자인 특성을 충족합니다. 본 제품에 대한 추가 클레임은 요청 시 검토할 수 있습니다.
Notes
  • Dodatkowe warianty na specjalne zamówienie
  • Na życzenie złocone powierzchnie zestyków
  • Prąd znamionowy przy nominalnym przekroju i min. liczbie biegunów.
  • Końcówka tulejkowa bez kołnierza z tworzywa sztucznego według DIN 46228/1
  • Końcówka tulejkowa z kołnierzem z tworzywa sztucznego według DIN 46228/4
  • Symbol P na rysunkach oznacza raster
  • Kształt zaciskowy „A” to tulejek kablowych z zalecaną zaciskarką PZ 6/5.
  • Odczep probierczy można wykorzystywać tylko jako punkt pomiaru potencjału.
  • Zgodnie z normą IEC 61984, złącza OMNIMATE są złączami bez zdolności wyłączania (COC). Podczas stosowania zgodnie z przeznaczeniem złącza nie mogą być włączane ani wyłączane pod napięciem ani w obciążeniem
  • Długoterminowe składowanie produktu przy średniej temperaturze 50°C i maksymalnej wilgotności 70%, 36 miesięcy
    •

    Klasyfikacje

    ETIM 8.0
    EC002638
    ETIM 9.0
    EC002638
    ETIM 10.0
    EC002638
    ECLASS 14.0
    27-46-02-02
    ECLASS 15.0
    27-46-02-02
