ELS 7/40 MC SDR

ELS 7/40 MC SDR

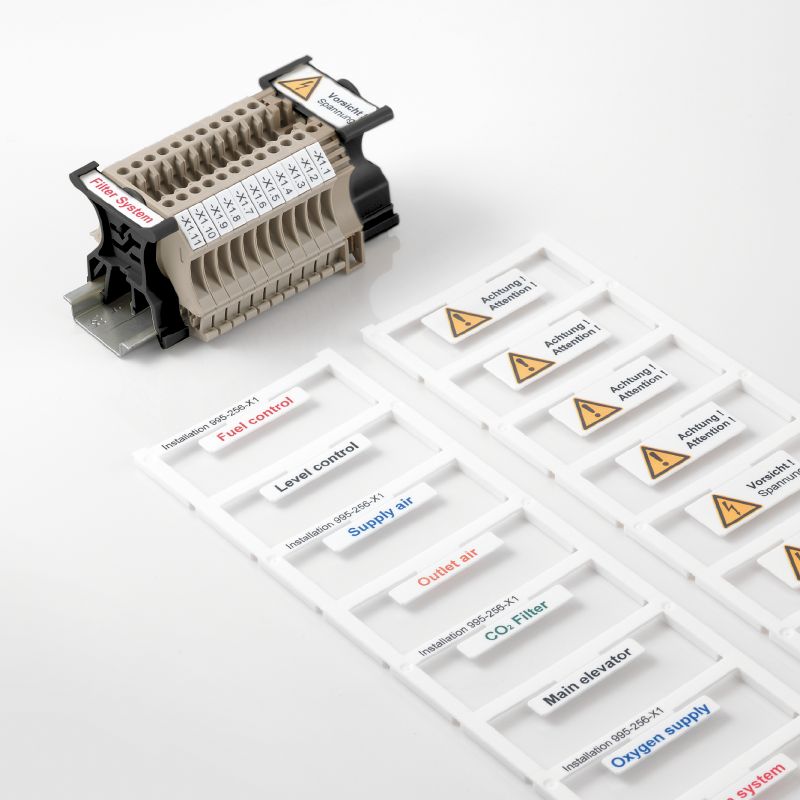

ELS, Insert markers, 0 - 0 mm, 40 x 7 mm, To customer specification

Produkt ID 1045700000
Download datablad Product Downloads Engineering Support
Tilbehør 3 Anvendte produkter 2
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance General data Conductor and cable markers Classifications

Approvals

ROHS
Conform

General ordering data

Version
ELS, Insert markers, 0 - 0 mm, 40 x 7 mm, To customer specification
Référence
1045700000
Type
ELS 7/40 MC SDR
GTIN (EAN)
4032248779673
Qty.
8 items

Dimensions and weights

Profondeur
1 mm
Depth (inches)
0,039 inch
Hauteur
40 mm
Height (inches)
1,575 inch
Largeur
7 mm
Width (inches)
0,276 inch
Net weight
1,36 g

Temperatures

plage de température d'utilisation
-40...100 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%
Uhlíková stopa výrobku
  • Von der Wiege bis zum Werkstor:
    0.015 kg CO2 eq.

General data

Basic material
Polyamide 66
Colour
To customer specification
Colour of printing
black
compatible printer
[PRINTJET CONNECT](~/p/2715590000)
Halogen
No
Number of markers per combination
1 MultiCard = Insert markers
Number of markers per packaging unit
  • Form of supply:
    MultiCard
Number per sheet
8
Operating temperature range
-40...100 °C
Operating temperature range, max.
100 °C
Operating temperature range, min.
-40 °C
Printed characters
Requires M-Print PRO File
Printing method
MC Laser
Type of printing
To customer specification
UL 94 flammability rating
V-2
Version
halogen-free
Width
7 mm

Conductor and cable markers

Diametro esterno del conduttore, max.
0 mm
Ledarytterdiameter
0 - 0 mm
Zewnętrzna średnica przewodu, min.
0 mm
할로겐
No

Classifications

ETIM 8.0
EC001530
ETIM 9.0
EC001530
ETIM 10.0
EC001530
ECLASS 14.0
27-28-11-02
ECLASS 15.0
27-28-11-02
