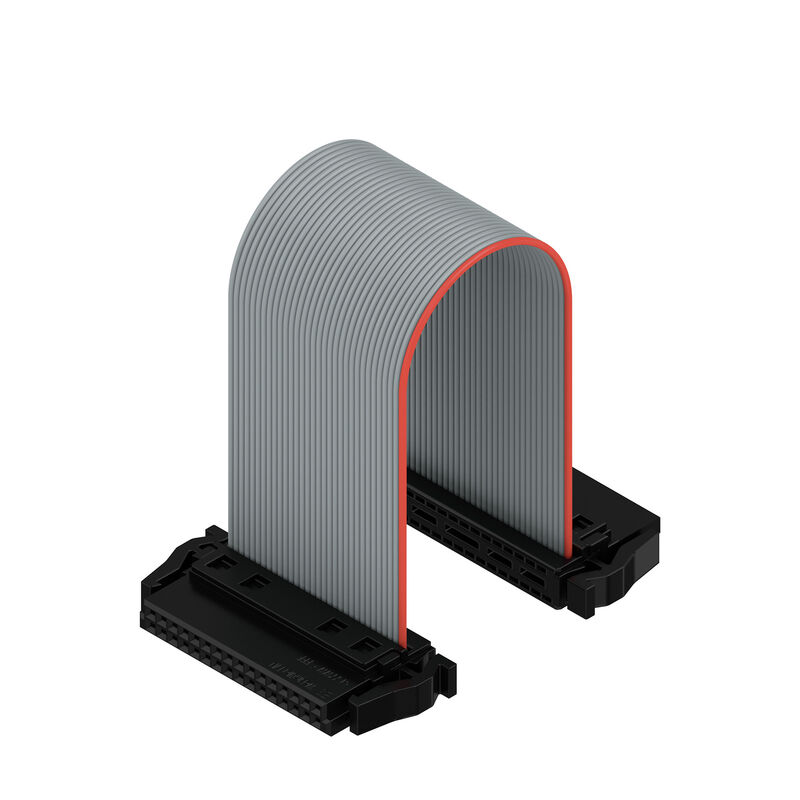

FC10 TN/32A S1 B BX
Product image

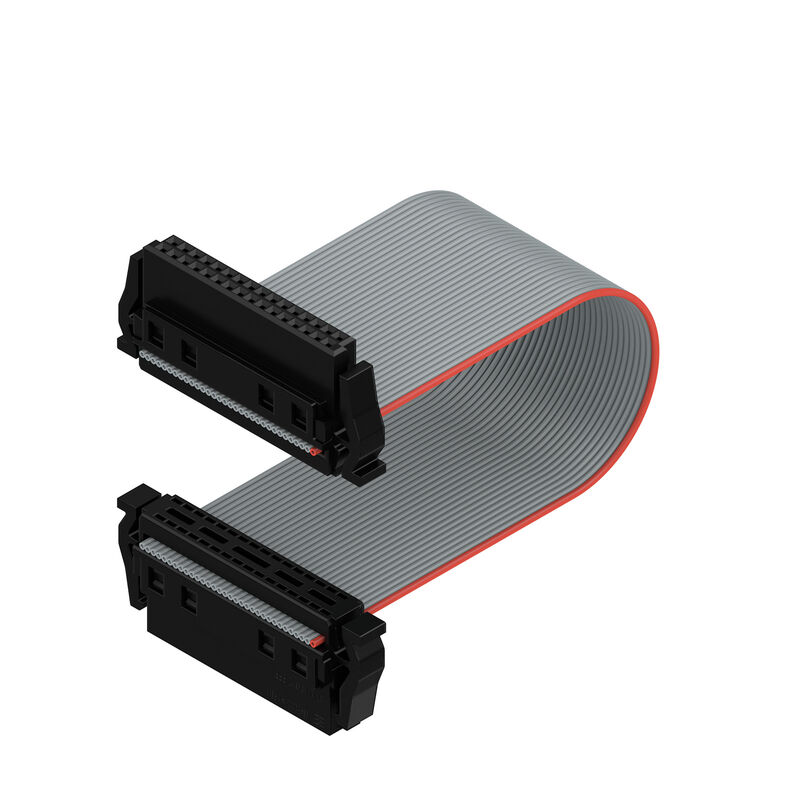

FC10 TN/32A S1 B BX
Product image
FC10 TN/32A S1 B BX
FC10 TN/32A S1 B BX
FC10 TN/32A S1 B BX

FC10 TN/32A S1 B BX

Bu ürün yakında mevcut olmayacak.

Son Sipariş Tarihi: /Date(1798671600000)/

Leiterplattensteckverbinder, Buchsenstecker, Raster in mm (P): 1.27 mm, Polzahl: 32, Box

Ürün No. 2827150000
Veri sayfasını indir Mühendislik desteği Ürün İndirmleri
İlgili ürünler 27
Agréments Allgemeine Bestelldaten Dimensions and weights Umweltanforderungen Systemkennwerte Material data Conduttori adatti al collegamento Bemessungsdaten nach IEC Packing Important note Clasificaciones

Agréments

ROHS
Megfelel

Allgemeine Bestelldaten

Version
Leiterplattensteckverbinder, Buchsenstecker, Raster in mm (P): 1.27 mm, Polzahl: 32, Box
Order No.
2827150000
Type
FC10 TN/32A S1 B BX
GTIN (EAN)
4064675363750
Qty.
10 adet
Product data
IEC: / 1.9 A
UL:
Packaging
Box

Dimensions and weights

Net weight
7,5 g

Umweltanforderungen

RoHS Compliance Status
Konform ohne Ausnahme
REACH SVHC
Pas de SVHC au-dessus de 0,1 % en poids

Systemkennwerte

Product family
OMNIMATE Signal – Board-to-Board
Type of connection
Insulation displacement connection (IDC)
Wire connection method
IDC terminal
Длина кабеля
100 mm
Pitch in mm (P)
1,27 mm
Pitch in inches (P)
0,05 "
Conductor outlet direction
90°/270°
Number of poles
32
Number of rows
2
Pin series quantity
2
Protection degree
IP20
Volume resistance
<25 mΩ
Plugging cycles
500
Plugging force/pole, max.
0,6 N
Pulling force/pole, max.
0,6 N

Material data

Insulating material
LCP
Colour
grey
Colour chart (similar)
RAL 7035
Insulation resistance
≥ 20 MΩ
Moisture Level (MSL)
1
UL 94 flammability rating
V-0
Contact base material
Copper alloy
Contact material
Cu-alloy
Contact surface
Ni/Au
Layer structure of plug contact
≥ 2 µm Ni / ≥ 0.4 µm PdNi / ≥ 0.05 µm Au
Storage temperature, min.
-40 °C
Storage temperature, max.
70 °C
Operating temperature, min.
-40 °C
Operating temperature, max.
125 °C

Conduttori adatti al collegamento

Wire connection cross section AWG, min.
AWG 30/1, 30/7
Wire connection cross section AWG, max.
AWG 30/1, 30/7

Bemessungsdaten nach IEC

Rated current, min. number of poles (Tu=20°C)
1,9 A
Clearance, min.
0,4 mm
Creepage distance, min.
0,4 mm

Packing

Packaging
Box
VPE length
155 mm
VPE width
64 mm
VPE height
38 mm

Important note

IPC conformity
Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request.

Clasificaciones

ETIM 8.0
EC002599
ETIM 9.0
EC002599
ETIM 10.0
EC002599
ECLASS 14.0
27-06-03-08
ECLASS 15.0
27-06-03-07
