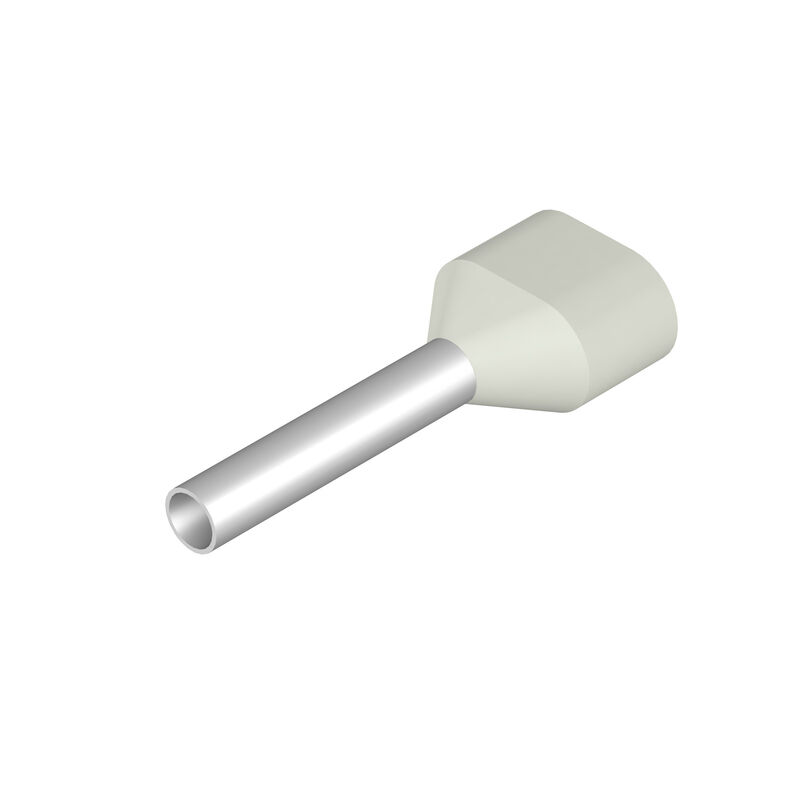

Aderendhülse, Zwillings-Aderendhülse, 13 mm, 10 mm, weiß

항목 번호 9004900000
데이터 시트 다운로드 Tekninen tuki Tuotelataukset
Tartozéka 10 Kapcsolódó termékek 6
Osvědčení Allgemeine Bestelldaten Dimensions and weights Umweltanforderungen Technical data Wire-end ferrules Classifications

Osvědčení

Approvals
![](https://assets.dam.weidmueller.com/assets/api/bd70fd7c-25a7-46d9-a404-2588bf18d09f/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/b770a92f-60fd-42c9-876f-9d6366f8928c/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate no. (cULus)
E499744

Allgemeine Bestelldaten

Version
Aderendhülse, Zwillings-Aderendhülse, 13 mm, 10 mm, weiß
Order No.
9004900000
Type
H0,75/16 ZH W SV
GTIN (EAN)
4008190482671
Qty.
500 items
Packaging
Multipack bag

Dimensions and weights

Net weight
0,155 g

Umweltanforderungen

RoHS Compliance Status
Konform ohne Ausnahme
REACH SVHC
No SVHC above 0.1 wt%

Technical data

Description of article
Twin wire end ferrule, white
Version
Twin wire-end ferrule

Wire-end ferrules

Collar height (A)
5,5 mm
Collar width (B)
3 mm
Colour code
Weidmueller
Conductor cross-section
0,75 mm²
Contact surface diameter (D1)
1,7 mm
Contact surface length (L2)
10 mm
L1 in mm
16 mm
Metal sleeve thickness (S1)
0,15 mm
Plastic collar thickness (S2)
0,3 mm
Stripping length
13 mm
Wire connection cross section AWG, max.
AWG 18

Classifications

ETIM 8.0
EC000005
ETIM 9.0
EC000005
ETIM 10.0
EC000005
ECLASS 14.0
27-40-02-01
ECLASS 15.0
27-40-02-01
