HDC 64D TSBU 1M50 BP
HDC 64D TSBU 1M50 BP

HDC 64D TSBU 1M50 BP

HDC enclosures, Size: 8, Protection degree: IP65 (in plugged condition), Cable entry from side, Plug housing, Side-locking clamp on lower side, high, Size of cable entries: M 50

Produkt ID 3107210000
Download datablad Engineering Support Product Downloads
Tilbehør 4 Er tilbehør til 1 Anvendte produkter 2
General ordering data Dimensions and weights Temperatures Environmental Product Compliance Dimensions General data Version Classifications Approvals

General ordering data

Version
HDC enclosures, Size: 8, Protection degree: IP65 (in plugged condition), Cable entry from side, Plug housing, Side-locking clamp on lower side, high, Size of cable entries: M 50
Order No.
3107210000
Type
HDC 64D TSBU 1M50 BP
GTIN (EAN)
4099987172141
Qty.
1  Styk

Dimensions and weights

Depth
72  mm
Depth (inches)
2,835  inch
Height
93  mm
Height (inches)
3,661  inch
Width
121  mm
Width (inches)
4,764  inch
Length
121  mm
Length (inches)
4,764  inch
Net weight
261  g

Temperatures

Limit temperature
-40 °C ... 125 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%
Chemical resistance
  • Substance:
    Acetone
  • Chemical resistance:
    Conditionally resistant
  • Substance:
    Drilling oil
  • Chemical resistance:
    Resistant
  • Substance:
    Diesel
  • Chemical resistance:
    Resistant
  • Substance:
    Ethyl alcohol
  • Chemical resistance:
    Resistant
  • Substance:
    Transmission oil
  • Chemical resistance:
    Resistant
  • Substance:
    Hydraulic oil
  • Chemical resistance:
    Resistant
  • Substance:
    Coolant
  • Chemical resistance:
    Resistant
  • Substance:
    Petroleum benzine
  • Chemical resistance:
    Resistant
  • Substance:
    Sweat
  • Chemical resistance:
    Resistant
  • Substance:
    Premium gasoline
  • Chemical resistance:
    Conditionally resistant
  • Substance:
    Water
  • Chemical resistance:
    Resistant
  • Substance:
    UV
  • Chemical resistance:
    Unstable
  • Substance:
    Ozone
  • Chemical resistance:
    Unstable

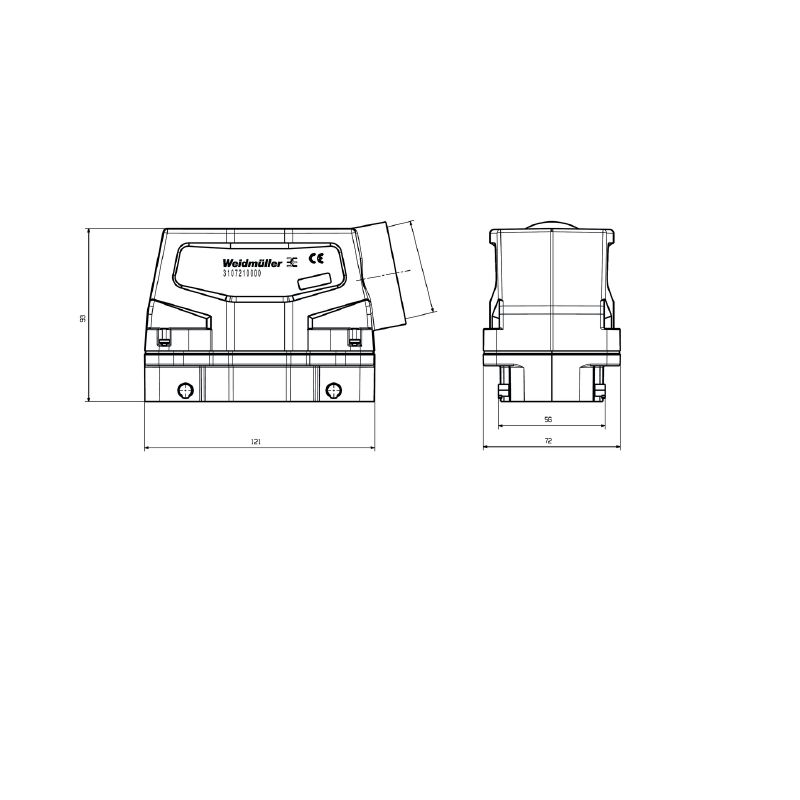

Dimensions

Cable entry
w. thread

General data

EMC housings
No
Housing main material
Polyamide
Material of locking element
Polyamide
Protection degree
IP65 (in plugged condition)
UL 94 flammability rating
V-0

Version

BG
8
Cable entry
w. thread
Colour (RAL)
RAL 9005
Design
high
Design of housing
Cable entry from side
Plug housing
Design of locking system
Side-locking clamp on lower side
Internal thread
M 50
Number of cable entry on top
0
Number of cable entry sideways
1
Size
8
Size of cable entries
M 50
Suitable for ModuPlug®
Yes
Top part/bottom part/lid
upper part

Classifications

ETIM 6.0
EC000437
ETIM 7.0
EC000437
ETIM 8.0
EC000437
ETIM 9.0
EC000437
ETIM 10.0
EC000437
ECLASS 9.0
27-44-02-02
ECLASS 9.1
27-44-02-02
ECLASS 10.0
27-44-02-02
ECLASS 11.0
27-44-02-02
ECLASS 12.0
27-44-02-02
ECLASS 13.0
27-44-02-02
ECLASS 14.0
27-44-02-02
ECLASS 15.0
27-44-02-02

Approvals

ROHS
Conform
