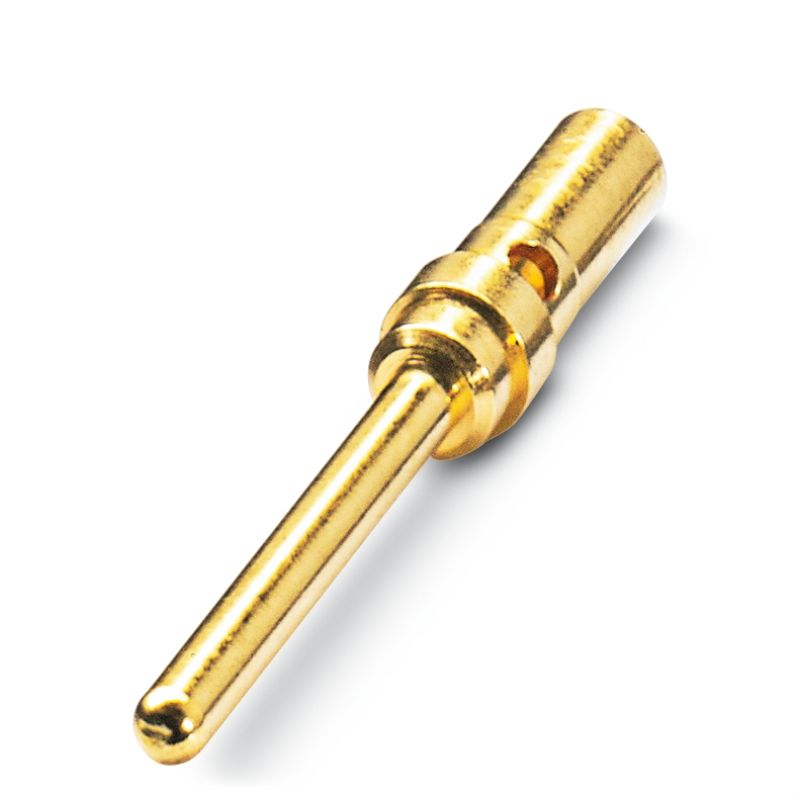

| Version | Male, gold, 0.08 - 0.12 mm² |
| Order No. | 2748710000 |
| Type | HDC C HS SM0.08-0.12 AU |
| GTIN (EAN) | 4050118890556 |
| Qty. | 100 Styk |
| Net weight | 0,18 g |
| Limit temperature | -55 °C ... 130 °C |
| RoHS Compliance Status | Compliant with exemption |
| RoHS Exemption (if applicable/known) | 6c |
| REACH SVHC | Lead 7439-92-1 |
| SCIP | 6eabd5ae-2d6b-409e-8bdf-87c27ee10e40 |
| Conductor cross-section, max. | 0,12 mm² |
| Conductor cross-section, min. | 0,08 mm² |
| Contact diameter, male Ø | 1 mm |
| Cross-section for connected wire | 0.08 - 0.12 mm² |
| Material | Copper alloy |
| Plugging cycles | ≥ 200 |
| Production methods | turned |
| Surface finish | gold |
| Type | Male |
| Type of connection | Crimp connection |
| Version insert | DSUB |
| Wire connection cross section AWG, max. | AWG 28 |
| Wire connection cross section AWG, min. | AWG 24 |
| Engineering Data | |
| CADENAS eCATALOG | |
| User Documentation | |
| Catalogues |
| ETIM 6.0 | EC000796 |
| ETIM 7.0 | EC000796 |
| ETIM 8.0 | EC000796 |
| ETIM 9.0 | EC000796 |
| ETIM 10.0 | EC000796 |
| ECLASS 9.0 | 27-44-02-04 |
| ECLASS 9.1 | 27-44-02-04 |
| ECLASS 10.0 | 27-44-02-04 |
| ECLASS 11.0 | 27-44-02-04 |
| ECLASS 12.0 | 27-44-02-04 |
| ECLASS 13.0 | 27-44-02-04 |
| ECLASS 14.0 | 27-44-02-04 |
| ECLASS 15.0 | 27-44-02-04 |
| ROHS | Conform |
-
