HDC insert, Male, 230 V, 16 A, Number of poles: 5, PUSH IN, Installation size: 1

Tuotteen tunnus 3023900000
Lataa tietosivu Engineering Support Product Downloads
Lisävarusteet 3 On lisävaruste 2 Samankaltaiset tuotteet 2
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Dimensions General data Connection data PE Power contact Signal contact Version Classifications

Approvals

Approvals
![CE](/picture/CE.gif)
ROHS
Conform

General ordering data

Version
HDC insert, Male, 230 V, 16 A, Number of poles: 5, PUSH IN, Installation size: 1
Order No.
3023900000
Type
HDC HQ 5 MP
GTIN (EAN)
4099986946484
Qty.
1 items

Dimensions and weights

Height
41 mm
Height (inches)
1,614 inch
Width
21 mm
Width (inches)
0,827 inch
Length
21 mm
Length (inches)
0,827 inch
Net weight
50 g

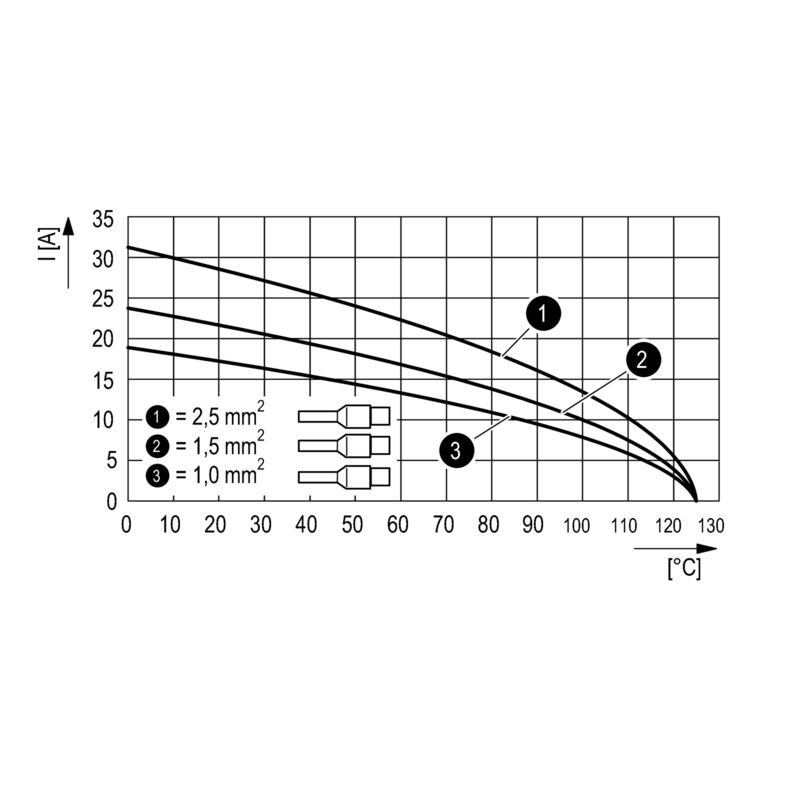

Temperatures

Limit temperature
-40 °C ... 125 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

Dimensions

Height of plug
38 mm
Total length base
21 mm
Width
21 mm

General data

Basic material
Copper alloy
BG
1
Colour
beige
Installation size
1
Insulating material
PC glass-fibre reinforced (UL-listed and railway-certified)
Low smoke acc. DIN EN 45545-2
Yes
Number of poles
5
Plugging cycles, gold
≥ 500
Plugging cycles, silver
≥ 500
Pollution severity
3
Rated current (DIN EN 61984)
16 A
Rated impulse voltage (DIN EN 61984)
6 kV
Rated voltage (DIN EN 61984)
230 V
Rated voltage according to UL/CSA
600 V AC/DC
Series
HQ
Surge voltage category
III
Type
Male
Type of connection
PUSH IN
UL 94 flammability rating
V-0
Volume resistance
≤2 mΩ

Connection data PE

Connection type PE
Screw connection
Rated cross-section
2,5 mm²
Tightening torque, max. PE connection
0,55 Nm
Tightening torque, min. PE connection
0,5 Nm
Wire cross section, AWG (PE), max.
AWG 20
Wire cross section, AWG (PE), min.
AWG 14

Power contact

Tightening torque, max.
0,8 Nm
Tightening torque, min.
0,5 Nm

Signal contact

Tightening torque, max.
0,8 Nm
Tightening torque, min.
0,5 Nm

Version

Basic material
Copper alloy
BG
1
Conductor cross-section, max.
2,5 mm²
Conductor cross-section, min.
0,5 mm²
Installation size
1
Stripping length, rated connection
10 mm
Type of connection
PUSH IN
Volume resistance
≤2 mΩ
Wire connection cross section AWG, max.
AWG 20
Wire connection cross section AWG, min.
AWG 14
Wire connection cross section, finely stranded, max.
2,5 mm²
Wire connection cross section, finely stranded, min.
0,5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.
2,5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.
0,5 mm²

Classifications

ETIM 6.0
EC000438
ETIM 7.0
EC000438
ETIM 8.0
EC000438
ETIM 9.0
EC000438
ETIM 10.0
EC000438
ECLASS 9.0
27-44-02-05
ECLASS 9.1
27-44-02-05
ECLASS 10.0
27-44-02-05
ECLASS 11.0
27-44-02-05
ECLASS 12.0
27-44-02-05
ECLASS 13.0
27-44-02-05
ECLASS 14.0
27-44-02-05
ECLASS 15.0
27-44-02-05
