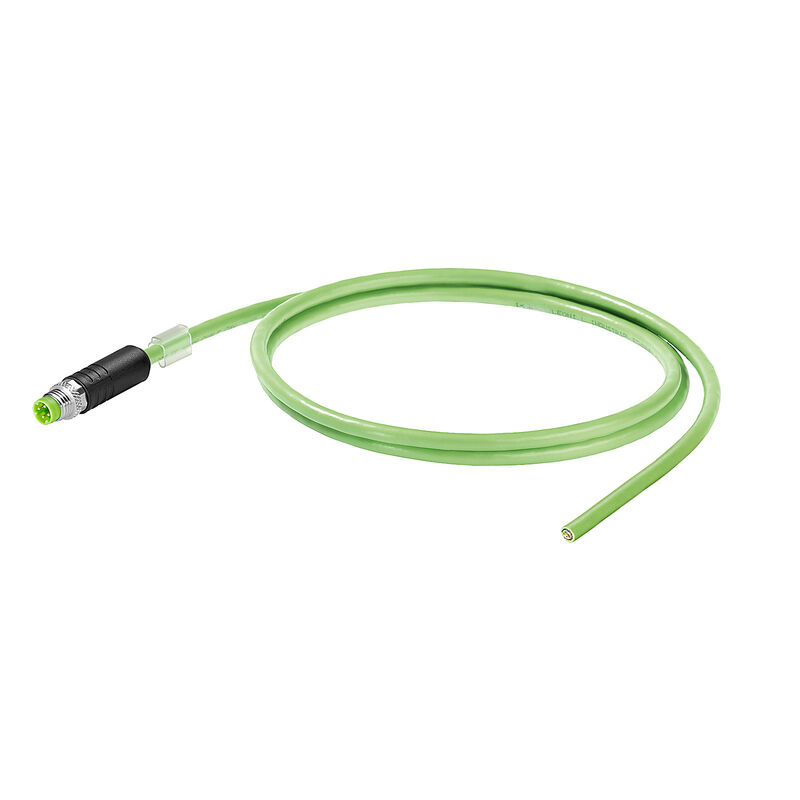

Dragline cable, PROFINET, M8 D-code - IP67 straight pin, Open, Cat.5 (ISO/IEC 11801) / Cat.5e (TIA T568-B), PUR, 20 m

Produkt ID 2706150200
Download datablad Engineering Support Product Downloads
Anvendte produkter 57
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Cable specific standards General standards Standards Cable structure Electrical properties of cable Mechanical and material properties of cable Plug, left Plug, right Classifications

Approvals

ROHS
Conform

General ordering data

Version
Dragline cable, PROFINET, M8 D-code - IP67 straight pin, Open, Cat.5 (ISO/IEC 11801) / Cat.5e (TIA T568-B), PUR, 20 m
Order No.
2706150200
Type
IE-C5DD4UG0200DCSXXX-E
GTIN (EAN)
4050118742787
Qty.
1 Styk

Dimensions and weights

Length
20 m
Length (inches)
787,402 inch
Net weight
1.188 g

Temperatures

Storage temperature
-50 °C...70 °C
Operating temperature
-40 °C...70 °C
Installation temperature
-20 °C...60 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant with exemption
RoHS Exemption (if applicable/known)
6c
REACH SVHC
Lead 7439-92-1
SCIP
67cf1078-beca-4687-860b-dc475a6ec24a

Cable specific standards

Standard, insulating material
DIN EN 50290-2-23 (VDE 0819) Table 2/A (HD 624.3)
Standard, shielding material
DIN EN 13602 Cu-ETP-A..B
Standard, wire material
DIN EN 13602 Cu-ETP-A

General standards

Connector standard
IEC 61076-2-114

Standards

Connector standard
IEC 61076-2-114
Standard, insulating material
DIN EN 50290-2-23 (VDE 0819) Table 2/A (HD 624.3)
Standard, shielding material
DIN EN 13602 Cu-ETP-A..B
Standard, wire material
DIN EN 13602 Cu-ETP-A

Cable structure

Apantallamiento total
Aluminium foil
Shielding braid made from copper wiring
Arrangement of wire cores
Star-quad
Cross-section
4*AWG 22/7 - 0.32 mm²
Diamètre de gaine intérieure
3,9 mm
Espesor del aislamiento del conductor
0,38 mm
Füller
As central element
Insulation
PE
Insulation cross-section
1,5 mm
Köpeny anyagvastagsága
0,9 mm
Material del conductor
Stranded tin-plated copper wire
Materiál pláště
PUR
Number of wires
4
Recubrimiento trenzado de apantallamiento
85 %
Sheath diameter, max.
6,7 mm
Sheath diameter, min.
6,3 mm
Sheathing colour
green (RAL 6018)
Shielding
SF/UTP
Standard designations
2YH(ST)C11Y 2x2x0,75/1,5-100 LI VZN GN FRNC
Strands
7
Vezetékek – vezetékpárok színsorrendje
white, yellow, blue, orange
차폐 편조물 두께
0,13 mm

Electrical properties of cable

Category
Cat.5 (ISO/IEC 11801) / Cat.5e (TIA T568-B)
Characteristic impedance
100 ± 15 Ω at 1–100 MHz
Delay skew
40 ns/100m
Kapacitet vid 1 kHz
52 nF/km
Loop resistance
120 Ω/km
Operating voltage (UL rating)
600 V
Operating voltage, UL
600 V
Resistance differential
3 %
Signal propagation time
5,3 ns/m
Test voltage: wire-wire-shield
2000 Veff, 50 Hz, 1 min
Transfer impedance
20 mΩ/m at 10 MHz
Скорость
180 m/min

Mechanical and material properties of cable

Abrasion resistance
very good
Acceleration
4 m/s²
Bending cycles
3 Mio
Fire propagation
No
Halogen
halogen-free, according to IEC 60754-2
Min. bending radius, once only
5 x cable diameter
Min. bending radius, repetitive
7.5 x cable diameter
Pulling force
≤ 150 N
Resistance to oils
in accordance with IEC 60811-2-1
Resistance to spread of flame
in accordance with IEC 60332-1
Silicone-free
Yes
Speed
180 m/min
UV-resistant
Yes

Plug, left

Plug left
M8, D-coded, IP67, male contact, straight, plug, Plastic, shielded

Plug, right

Plug right
free conductor end

Classifications

ETIM 8.0
EC002599
ETIM 9.0
EC002599
ETIM 10.0
EC002599
ECLASS 14.0
27-06-03-08
ECLASS 15.0
27-06-03-08
