IE-FCM-USB-A
IE-FCM-USB-A
Dimensioned drawing
IE-FCM-USB-A
Installation cut-out

IE-FCM-USB-A

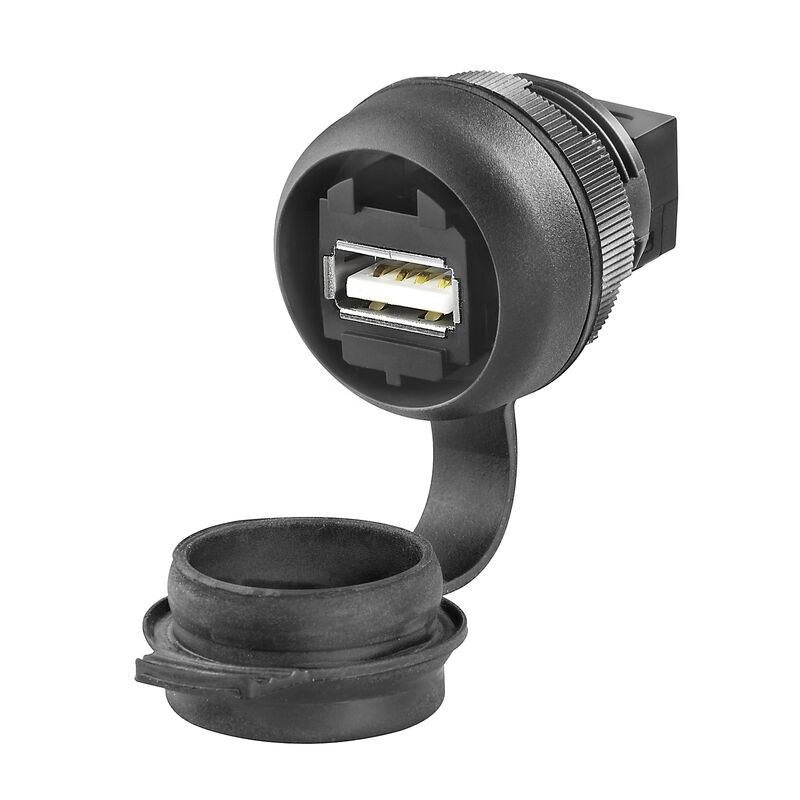

FrontCom Micro USB coupling, USB 2.0, Type A

Item No. 1018840000
Download data sheet Engineering Support Product Downloads
Accessories 5 Related products 3
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance General Info General standards Classifications

Approvals

Approvals
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319228/-S800/-T1z1mm-S80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate no. (cULus)
E316369

General ordering data

Version
FrontCom Micro USB coupling, USB 2.0, Type A
Order No.
1018840000
Type
IE-FCM-USB-A
GTIN (EAN)
4032248730094
Qty.
10  items

Dimensions and weights

Depth
42.9  mm
Depth (inches)
1.689  inch
Height
44  mm
Height (inches)
1.732  inch
Width
29.5  mm
Width (inches)
1.161  inch
Wall thickness, min.
1  mm
Wall thickness, max.
5  mm
Net weight
16.915  g

Temperatures

Operating temperature
-40 °C...70 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

General Info

Connection 1
USB A
Connection 2
USB A
Description of article
FrontCom Micro USB coupling
USB 2.0
Wiring
Type A
Colour
black
Housing main material
PA UL 94 V0
Type of mounting
Cabinet
Distribution box
Shielding
360° shield contact
Protection degree
IP65
in closed state
Plugging cycles
≥ 1500

General standards

Certificate no. (cULus)
E316369
Connector standard
IEC 61076-3-107

Classifications

ETIM 6.0
EC001031
ETIM 7.0
EC001031
ETIM 8.0
EC001031
ETIM 9.0
EC001031
ETIM 10.0
EC001031
ECLASS 9.0
27-18-27-02
ECLASS 9.1
27-18-27-90
ECLASS 10.0
27-18-27-02
ECLASS 11.0
27-18-27-02
ECLASS 12.0
27-18-28-92
ECLASS 13.0
27-18-28-92
ECLASS 14.0
27-18-28-92
ECLASS 15.0
27-18-28-92
