Detailed drawing
Cable cross-section

IE-FM6D2UE0005MLD0LD0X

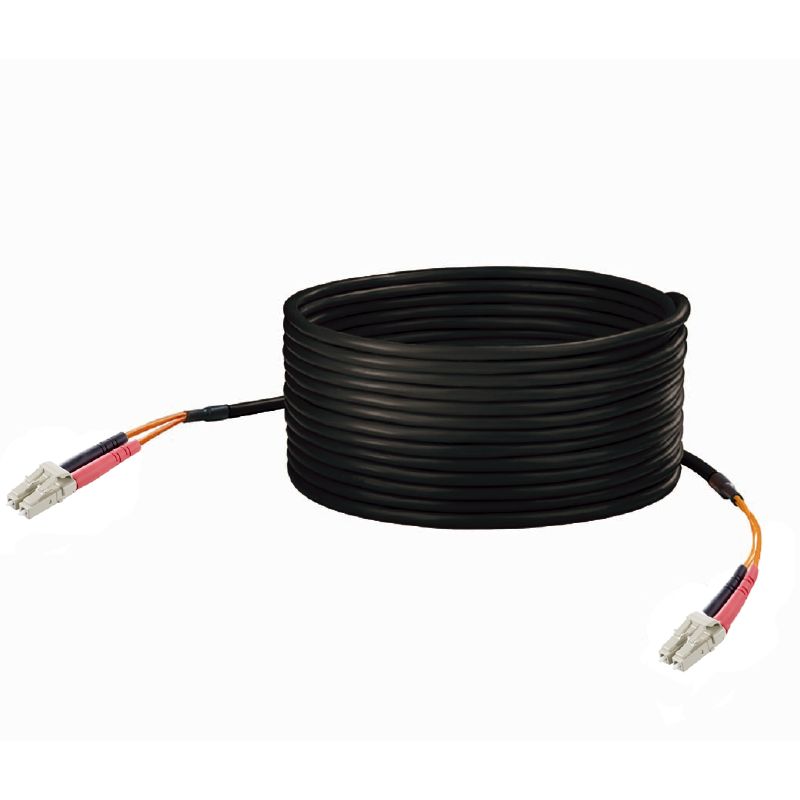

Dragline cable, LC-Duplex IP 20, LC-Duplex IP 20, 62.5 µm, PUR, 5 m

Product ID 1220930000
Gegevensblad downloaden Product Downloads
Toebehoren 2 Verwante producten 2
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance General standards Standards Fibre-optic Cable structure Mechanical and material properties of cable Plug Plug, left Plug, right Classifications

Approvals

ROHS
Conform

General ordering data

Version
Dragline cable, LC-Duplex IP 20, LC-Duplex IP 20, 62.5 µm, PUR, 5 m
Order No.
1220930000
Type
IE-FM6D2UE0005MLD0LD0X
GTIN (EAN)
4050118004007
Qty.
1  items

Dimensions and weights

Length
5  m
Length (inches)
196,85  inch
Net weight
143  g

Temperatures

Storage temperature
-40 °C...80 °C
Operating temperature
-40 °C...80 °C
Installation temperature
-20 °C...60 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant
REACH SVHC
Lead 7439-92-1

General standards

Connector standard
IEC 61754-20

Standards

Connector standard
IEC 61754-20

Fibre-optic

Attenuation
2.7 dB/km at 850 nm
≤ 0.5 dB/km at 1300 nm
Bandwidth
200 MHz*km at 850 nm
500 MHz*km at 1300 nm
Fibre type
GOF
Multimode
OM1
Insertion loss
≤ 0.4 dB
Return loss (attenuation)
≥ 30 dB

Cable structure

Cable layout
Break-out dragline
Core diameter
62,5  µm
Material sheath
PUR
Primary coating
245  µm
Sheath diameter
6 mm
Sheathing colour
black

Mechanical and material properties of cable

Bending cycles
100,000
Min. bending radius, once only
25 mm
Min. bending radius, repetitive
77 mm

Plug

Plug left
LC-Duplex, IP20, male contact, straight, plug, Plastic, unshielded
Plug right
LC-Duplex, IP20, male contact, straight, plug, Plastic, unshielded

Plug, left

Plug left
LC-Duplex, IP20, male contact, straight, plug, Plastic, unshielded

Plug, right

Plug right
LC-Duplex, IP20, male contact, straight, plug, Plastic, unshielded

Classifications

ETIM 6.0
EC002607
ETIM 7.0
EC002607
ETIM 8.0
EC002607
ETIM 9.0
EC002607
ETIM 10.0
EC002607
ECLASS 9.0
27-06-10-03
ECLASS 9.1
27-06-10-03
ECLASS 10.0
27-06-10-03
ECLASS 11.0
27-06-10-03
ECLASS 12.0
27-06-10-03
ECLASS 13.0
27-06-10-03
ECLASS 14.0
27-06-10-03
ECLASS 15.0
27-06-10-03
