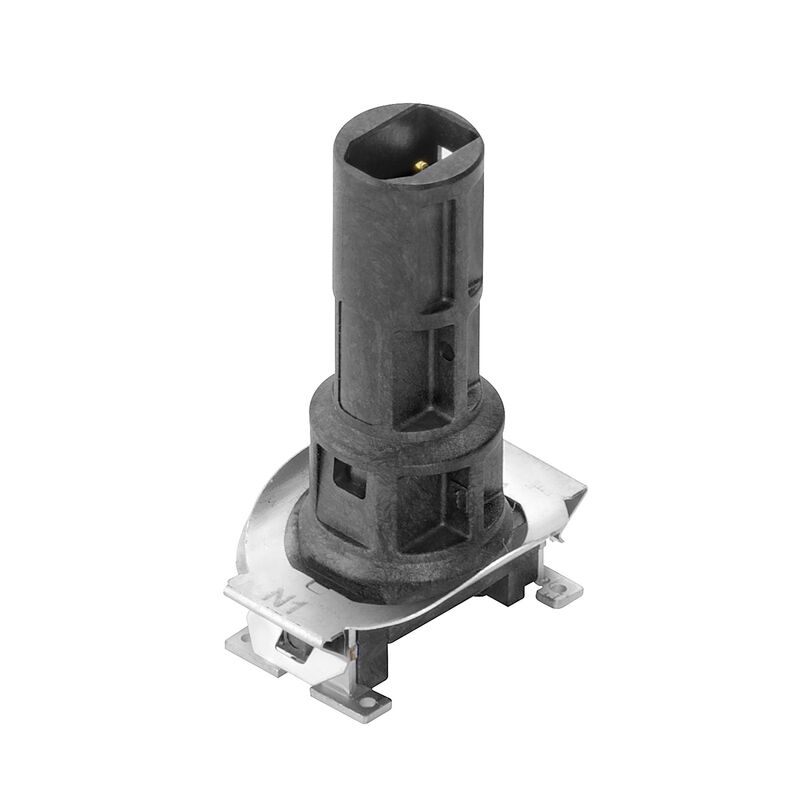

Built-in plugs, M8 PCB insert, Solder connection, IP67 with housing, SMD solder connection, 180°, Number of poles: 2, Tape

Item No. 2795110000
Download data sheet Engineering Support Product Downloads
Related products 10
General ordering data Dimensions and weights Temperatures Environmental Product Compliance System specifications Electrical properties Standards Material data Packing Classifications Approvals

General ordering data

Version
Built-in plugs, M8 PCB insert, Solder connection, IP67 with housing, SMD solder connection, 180°, Number of poles: 2, Tape
Order No.
2795110000
Type
IE-PCB-SPM-P-180-SMD
GTIN (EAN)
4064675119166
Qty.
100  items
Packaging
Tape

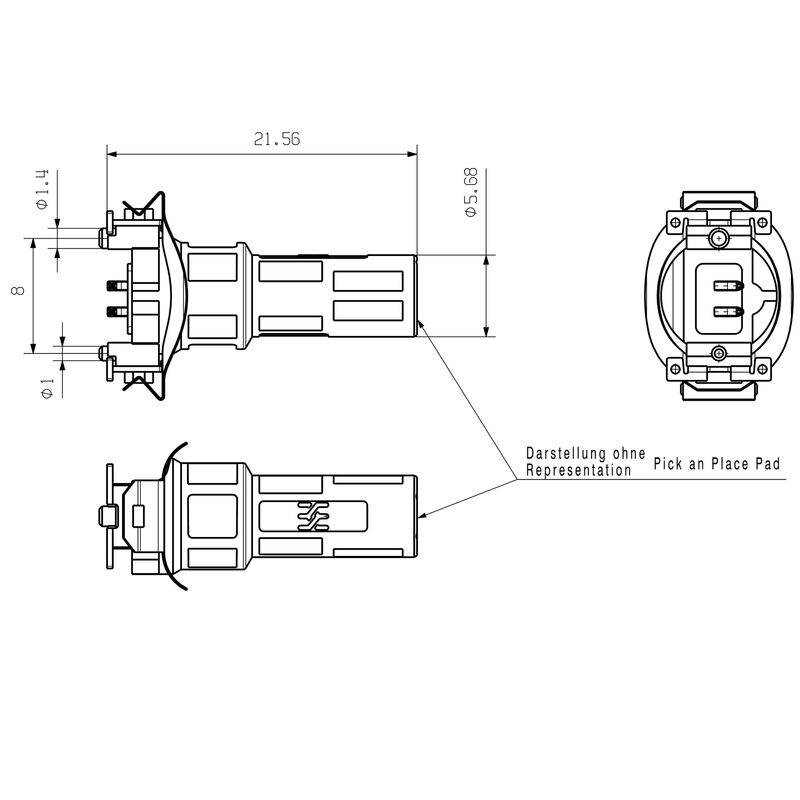

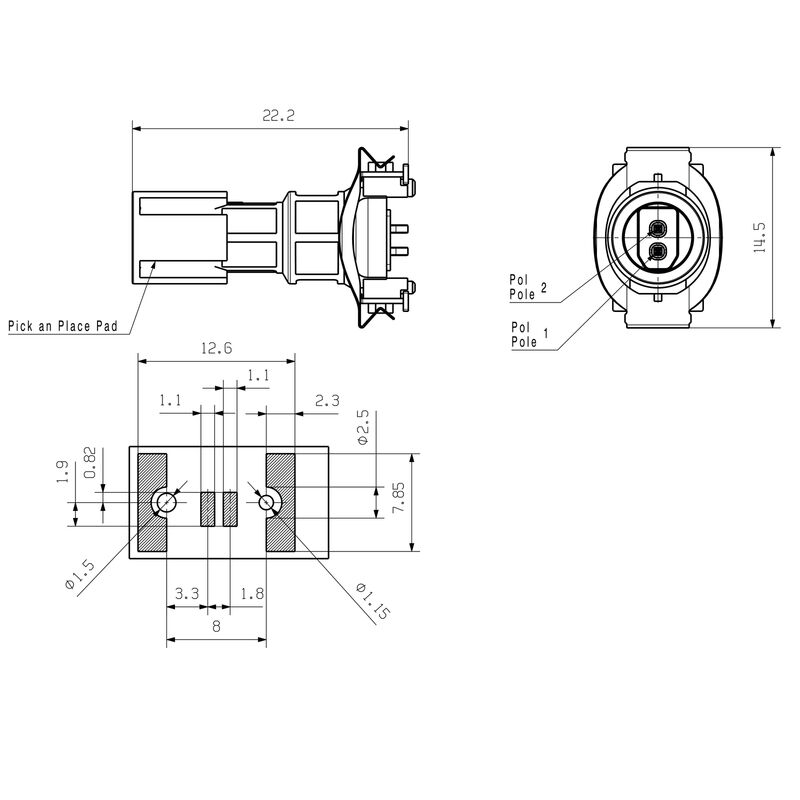

Dimensions and weights

Depth
14.5  mm
Depth (inches)
0.571  inch
Height
22.1  mm
Height (inches)
0.87  inch
Width
10.1  mm
Width (inches)
0.398  inch
Net weight
5.14  g

Temperatures

Operating temperature
-40 °C...85 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

System specifications

Category
T1-B
Mounting onto the PCB
SMD solder connection
Number of poles
2
Outgoing elbow
180°
Performance-Category
T1-B
Plugging cycles
≥ 100
Product family
Industrial Ethernet
Protection degree
IP67 with housing
Soldering process
Reflow soldering
Manual soldering
Type of connection
Solder connection

Electrical properties

Insulation strength
≥ 500 MΩ
Rated current
4 A
Rated voltage
72  V

Standards

Connector standard
IEC 63171-5

Material data

Insulating material
LCP
Colour
black
Colour chart (similar)
RAL 9011
Insulation strength
≥ 500 MΩ
Moisture Level (MSL)
1
UL 94 flammability rating
V-0
Contact material
Copper alloy
Contact surface
Ni/Au
Operating temperature, min.
-40  °C
Operating temperature, max.
85  °C

Packing

Packaging
Tape
VPE length
327  mm
VPE width
327  mm
VPE height
52  mm

Classifications

ETIM 6.0
EC002637
ETIM 7.0
EC002637
ETIM 8.0
EC002637
ETIM 9.0
EC002637
ETIM 10.0
EC002637
ECLASS 9.1
27-44-04-02
ECLASS 10.0
27-44-04-02
ECLASS 11.0
27-46-02-01
ECLASS 12.0
27-46-02-01
ECLASS 13.0
27-46-02-01
ECLASS 14.0
27-46-02-01
ECLASS 15.0
27-46-02-01

Approvals

ROHS
Conform
