IE-PS-SCRJ1-POF
IE-PS-SCRJ1-POF

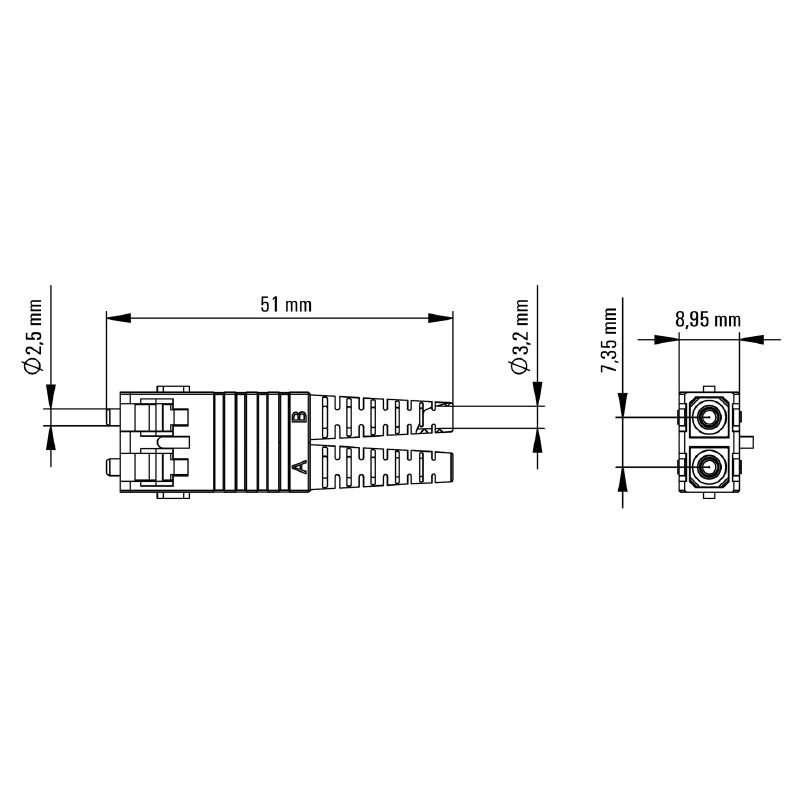

Dimensioned drawing

IE-PS-SCRJ1-POF

Stecker LWL, Steckereinsatz SCRJ, POF, IP20

Produkt ID 1206720000
Download datablad Produktdownloads
Tilbehør 3 Anvendte produkter 3
Zulassungen Allgemeine Bestelldaten Abmessungen und Gewichte Températures Umweltanforderungen General data General standards Classifications

Zulassungen

Approvals
![](https://assets.dam.weidmueller.com/assets/api/a5387a11-3584-42f1-9c6a-815af76ec080/DAP_Master_ICON,w_80,q_80)
ROHS
준수
UL File Number Search
[Сайт UL](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certifikat nr. (UL)
E477798

Allgemeine Bestelldaten

Version
Stecker LWL, Steckereinsatz SCRJ, POF, IP20
Order No.
1206720000
Type
IE-PS-SCRJ1-POF
GTIN (EAN)
4032248988570
Qty.
10 adet

Abmessungen und Gewichte

Depth
51 mm
Tiefe (inch)
2,008 inch
Height
14,7 mm
Hauteur (pouces)
0,579 inch
Width
8,95 mm
Szerokość (cale)
0,352 inch
Net weight
10 g

Températures

Operating temperature
-20 °C...80 °C
Humidity
0...93 % rel. humidity

Umweltanforderungen

RoHS Compliance Status
Konform mit Ausnahme
RoHS Exemption (if applicable/known)
6c
REACH SVHC
Lead 7439-92-1
SCIP
67cf1078-beca-4687-860b-dc475a6ec24a

General data

Bending protection sleeve material
TPE
Cable pull-out force, min.
100 N
Colour
yellow
black
Connection 1
SCRJ
Connection 2
Rapid connection system: crimping, cutting
Crimp barrel material
Copper
nickel-plated
Description of article
Plug SCRJ, POF
Dust protection cap material
TPE
Ferrule material
Nickel silver
Fibre type
POF
Housing main material
PC UL 94 V0
Housing material, insert
Zinc diecast
nickel-plated
Humidity
0...93 % rel. humidity
Insertion loss
≤ 1.0 dB
Plugging cycles
1000
Pressure spring material
Stainless steel, rust-proof
Protection degree
IP20
Single conductor diameter, max
2,3 mm
Single conductor diameter, min
2,1 mm

General standards

Certificate No. (UL)
E477798
Connector standard
IEC 61754-24

Classifications

ETIM 8.0
EC001122
ETIM 9.0
EC001122
ETIM 10.0
EC001122
ECLASS 14.0
19-17-01-22
ECLASS 15.0
19-17-01-22
