LM MT300 30/20 WS
LM MT300 30/20 WS

LM MT300 30/20 WS

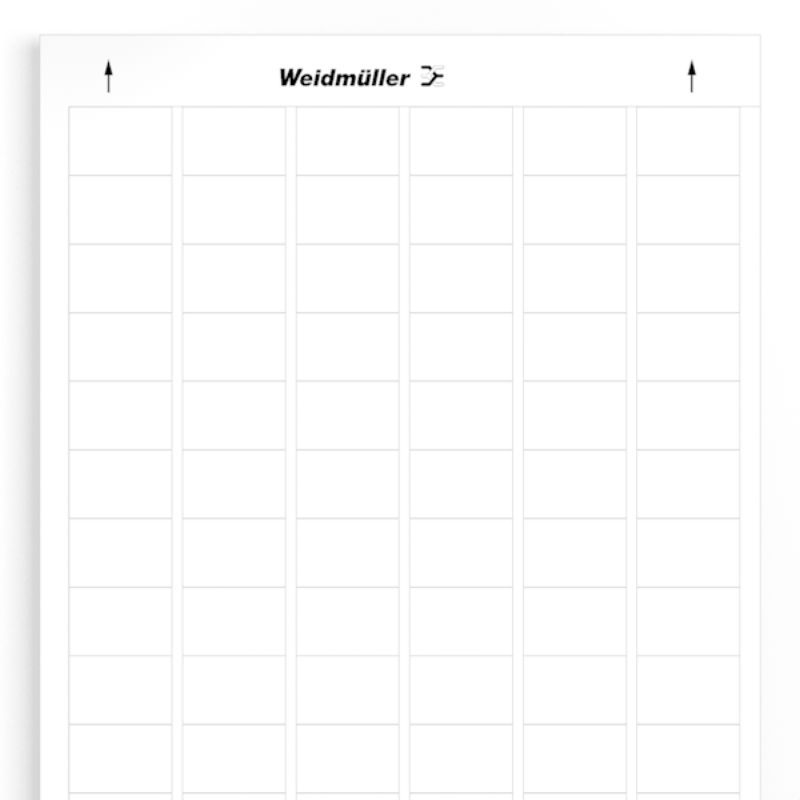

LaserMark, Device markers, 20 x 30 mm, white

Produkt ID 1724161044
Download datablad Engineering-support Produktdownloads
Anvendte produkter 3
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance General data Device markers Classifications

Approvals

ROHS
Conform

General ordering data

Version
LaserMark, Device markers, 20 x 30 mm, white
Order No.
1724161044
Type
LM MT300 30/20 WS
GTIN (EAN)
4008190369019
Qty.
10 Styk

Dimensions and weights

Depth
0,08 mm
Depth (inches)
0,003 inch
Height
20 mm
Height (inches)
0,787 inch
Width
30 mm
Width (inches)
1,181 inch
Net weight
10,648 g

Temperatures

Operating temperature range
-40...150 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

General data

Adhesive
Acrylate adhesive
Antal märkningar per förpackningsenhet
  • Form of supply:
    Label sheet
  • Number of combinations per packaging unit:
    10
  • Number of markers per combination:
    78
Barva materiálu podle kódu odporu
9
Classe d'inflammabilité selon UL 94
HB
Couleur
white
Godkännande enligt UL 969
Yes
Halogène
No
Materiale di base
Polyester, PVC-free
Nadrukowane znaki
without
Number of markers per combination
1 Label sheet = 78 Device markers
Number per sheet
78
Plage de température d'utilisation, max.
150 °C
Plage de température d'utilisation, min.
-40 °C
Procedimiento de impresión
Laser print
Versión
Self-adhesive
Width
30 mm
Количество маркировочных элементов в упаковочной единице
780
Температурный диапазон вставки
-40...150 °C

Device markers

Halogen
No

Classifications

ETIM 8.0
EC001288
ETIM 9.0
EC001288
ETIM 10.0
EC001288
ECLASS 14.0
27-28-11-04
ECLASS 15.0
27-28-11-04
