MCZ OVP VARISTOR S10K30
MCZ OVP VARISTOR S10K30
Electric symbol
Circuit diagram

MCZ OVP VARISTOR S10K30

Surge protection for instrumentation and control, Surge protection for measurement and control

Item No. 8449140000
Open in Configurator
Download data sheet Engineering Support Product Downloads
Accessories 4 Related products 10
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance General data Insulation coordination acc. to EN 50178 Rated data IEC / EN Connection data Electrical data General data Classifications

Approvals

Approvals
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
ROHS
Conform

General ordering data

Version
Surge protection for instrumentation and control, Surge protection for measurement and control
Order No.
8449140000
Type

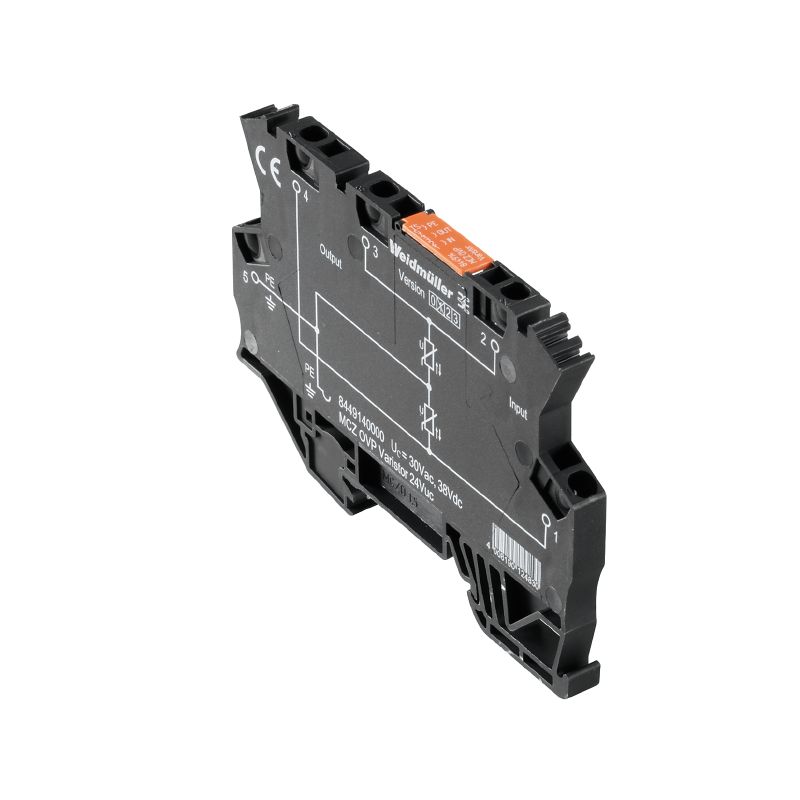

MCZ OVP VARISTOR S10K30
GTIN (EAN)
4008190124830
Qty.
10 items

Dimensions and weights

Depth
63.5 mm
Depth (inches)
2.5 inch
Height
91 mm
Height (inches)
3.583 inch
Width
6 mm
Width (inches)
0.236 inch
Net weight
26 g

Temperatures

Storage temperature
-20 °C...85 °C
Operating temperature
-40 °C...60

Environmental Product Compliance

RoHS Compliance Status
Compliant
REACH SVHC
Lead 7439-92-1
SCIP
c9db83e7-2b25-44e1-8d26-da64d426373f

General data

Colour
black
Design
Terminal
Height with TS 35
63.5 mm
Mounting rail
TS 35
Protection degree
IP20
Segment
Measurement - Monitoring - Setting
UL 94 flammability rating
V-0
Version
Surge protection for measurement and control

Insulation coordination acc. to EN 50178

Kategorie rázového napětí
III
Verschmutzungsgrad
2

Rated data IEC / EN

Capacitance
2,700 pF
Corrente di dimensionamento IN
13 A
Discharge current, max. (8/20 µs)
125 A
Fuse protection
10A
Lightning test current Iimp (10/350 µs)
< 0.5 kA
Max. continuous voltage, Uc (AC)
30 V
Névleges feszültség (DC)
24 V
Operating current, Imax.
13 A
Operating voltage
38 V
Protection level on output side Wire-PE 1kV/µs, typically
45 V
Protection level on output side Wire-PE 8/20 µs, typically
55 V
Rated voltage (DC), max.
38 V
Response time / fallback time
≤ 25 ns
Tensión nominal (AC)
24 V
Voltage type
AC/DC
Volume resistance
0.20 Ω
Уровень защиты со стороны выхода, предварительная проводка 8/20 µс, типичный
55 V
출력측 와이어-와이어 1 kV/µs의 보호 레벨, 일반
45 V

Connection data

Cross-section
1.5 mm²
Stripping length
8 mm
Wire connection method
Spring connection
Type of connection
Tension-clamp connection
Stripping length, rated connection
8 mm
Clamping range, rated connection
1.5 mm²
Clamping range, min.
0.5 mm²
Clamping range, max.
1.5 mm²
Wire connection cross section AWG, min.
AWG 26
Wire connection cross section AWG, max.
AWG 16
Wire cross-section, solid, min.
0.5 mm²
Wire cross-section, solid, max.
1.5 mm²
Wire cross-section, solid, min. (AWG)
AWG 26
Wire cross-section, solid, max. (AWG)
AWG 16
Wire connection cross section, finely stranded, min.
0.5 mm²
Wire connection cross section, finely stranded, max.
1.5 mm²
Wire cross-section, finely stranded, min. (AWG)
AWG 26
Wire cross-section, finely stranded, max. (AWG)
AWG 16
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.
0.5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.
1.5 mm²
Conductor cross-section, flexible, AEH (DIN 46228-1), min.
0.5 mm²
Conductor cross-section, flexible, AEH (DIN 46228-1), max.
1.5 mm²
Blade size
0.6 x 3.5 mm

Electrical data

Voltage type
AC/DC

General data

Protection degree
IP20
Colour
black

Classifications

ETIM 8.0
EC000943
ETIM 9.0
EC000943
ETIM 10.0
EC000943
ECLASS 14.0
27-17-15-01
ECLASS 15.0
27-17-15-01
