PWR173730L
Product image
Similar to illustration
PWR173730L

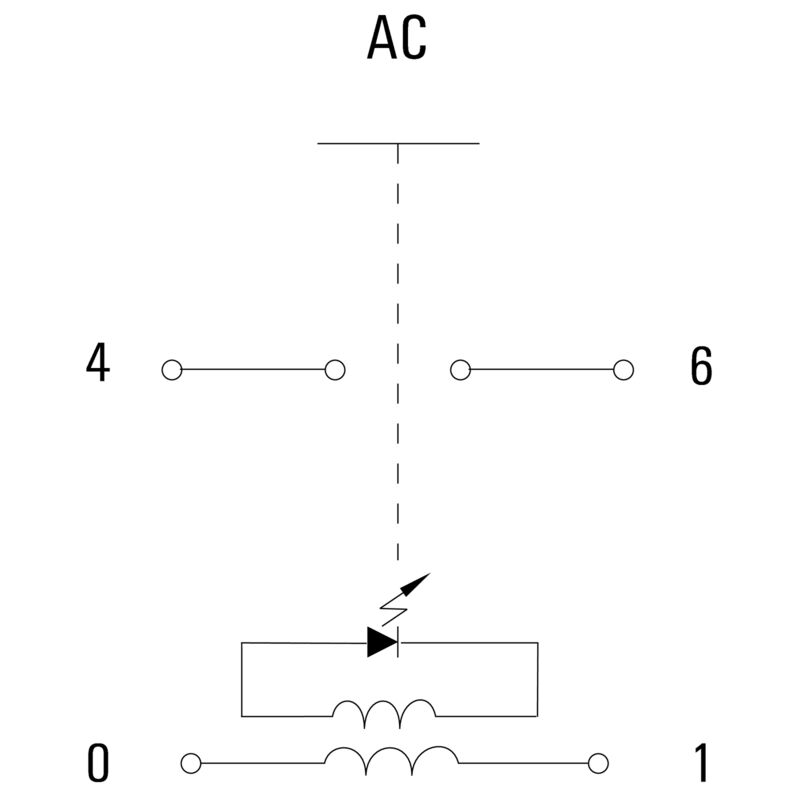

Wiring diagram
PWR173730L

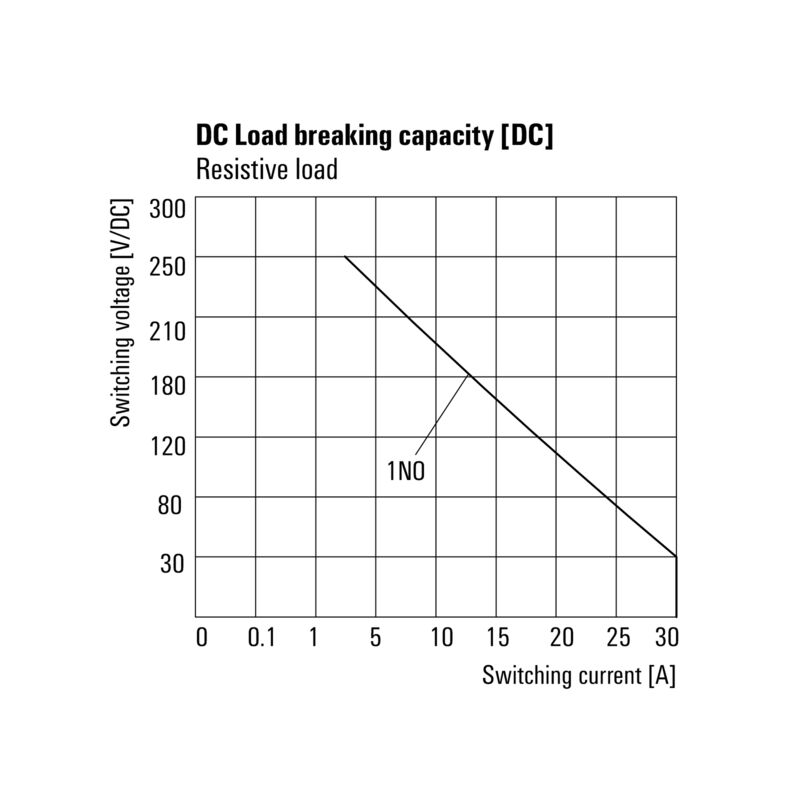

Graph
DC load limit curve
Resistive load
PWR173730L

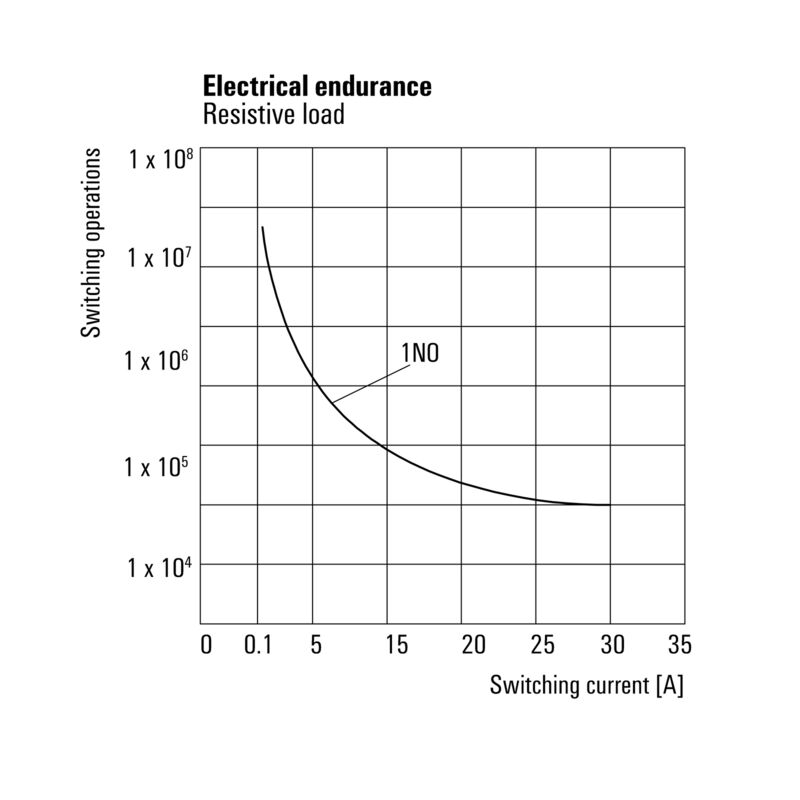

Graph
Electrical service life
Resistive load
PWR173730L

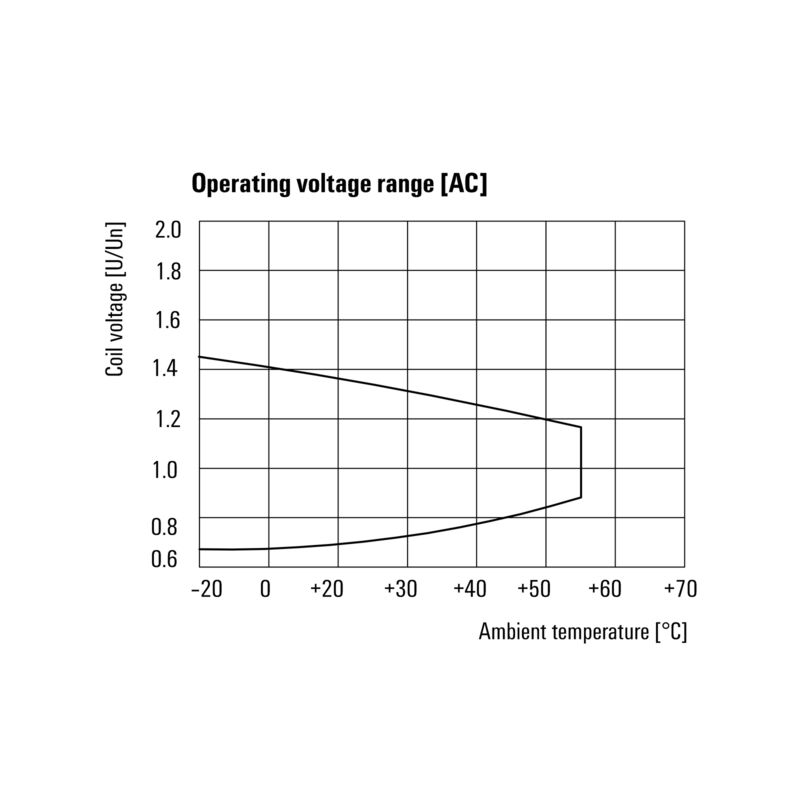

Graph
AC operational voltage range
PWR173730L

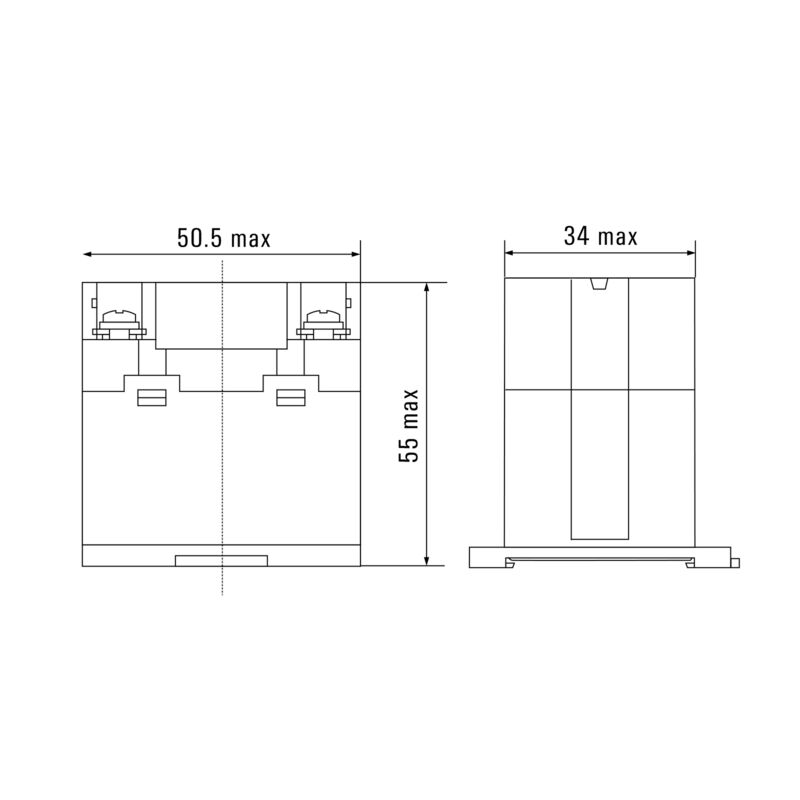

Dimensional drawing
PWR173730L

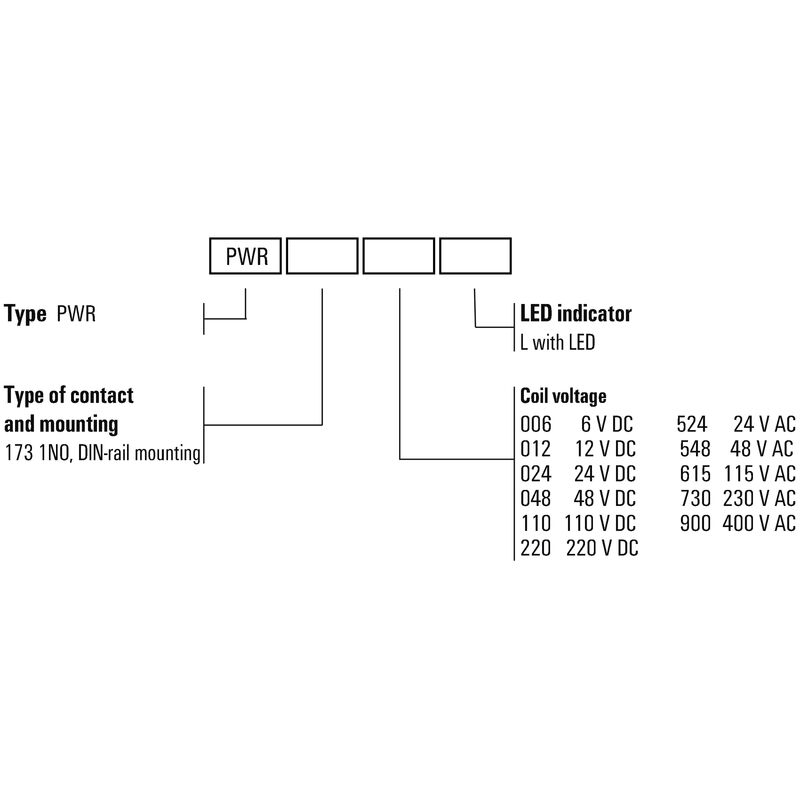

Miscellaneous
Type codes

PWR173730L

D-SERIES PWR, Relay module, Number of contacts: 1, NO contact AgSnO, Rated control voltage: 230 V AC, Continuous current: 30 A, Screw connection, Test button available: No

Tuotteen tunnus 1219140000
Avaa konfiguraattorissa
Lataa tietosivu Tekninen tuki Tuotelataukset
Samankaltaiset tuotteet 6
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Rated data UL Control side Load side General data Insulation coordination Further details of approvals / standards Connection data (control side) Connection data (load side) Connection data Classifications

Approvals

Godkännanden
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/33feeb02-46e9-4a14-9d79-8ec5ee409fe3/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/5855f480-81e6-48e1-aa53-1e87419df7ba/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certifikat nr (cURus)
E312083

General ordering data

Utförande
D-SERIES PWR, Relay module, Number of contacts: 1, NO contact AgSnO, Rated control voltage: 230 V AC, Continuous current: 30 A, Screw connection, Test button available: No
Art.nr.
1219140000
Typ
PWR173730L
GTIN (EAN)
4032248999002
Förp.
10 items

Dimensions and weights

Djup
55 mm
Depth (inches)
2,165 inch
Höjd
34 mm
Height (inches)
1,339 inch
Bredd
50,5 mm
Byggbredd (tum)
1,988 inch
Nettovikt
119,3 g

Temperatures

Lagertemperatur
-25 °C...55 °C
Omgivningstemperatur
-25 °C…55 °C
Fuktighet
35...85 % rel. páratartalom, páralecsapódás nélkül

Environmental Product Compliance

RoHS-kompatibilitetsstatus
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

Rated data UL

Certificate No. (cURus)
E312083

Control side

Märkstyrspänning
230 V AC
Rated current AC
11 mA
Märkeffekt
2,5 VA
Spolmotstånd
21000 Ω ± 10 %
Status indicator
Green LED

Load side

Märkkopplingsspänning
277 V AC
Normalspänning
30 A
max. Kopplingsfrekvens vid märklast
0,1 Hz
Max. switching voltage, AC
250 V
Min. switching power
100 mA @ 12 V
Inkopplingsströmmen
150 A / 50 ms
Schaltleistung AC (ohmsch), max.
8300 VA
Schaltleistung DC (ohmsch), max.
720 W @ 24 V
Inkopplingsfördröjning
<20 ms
Frånslagsfördröjning
<10 ms
Contact type
1 NO contact (AgSnO)

General data

Montageskena obestyckad
TS 35
Testknapp finns
No
Mekanisk indikator för brytarläge
No
Farbe
beige
UL94 가연성 등급 구성요소
  • 구성요소:
    릴레이 테스트 버튼
  • UL94 가연성 등급:
    HB
  • 구성요소:
    릴레이 상태 표시기
  • UL94 가연성 등급:
    HB
  • 구성요소:
    릴레이 베이스플레이트
  • UL94 가연성 등급:
    V-0
  • 구성요소:
    릴레이 커버
  • UL94 가연성 등급:
    V-2

Insulation coordination

Märkspänning
250 V
Nedsmutsningsgrad
3
Överspänningskategori
III
Insulating material group
IIIa
Kryp- och luftsträcka styrsida - belastningssida
≥ 5.5 mm
Spänningstålighet styrsida - lastsida
4 kVeff / 1분
Dielectric strength of open contact
2 kVeff / 1 min
Impulse withstand voltage
6 kV (1.2/50 µs)
Protection degree
IP10

Further details of approvals / standards

Certifikat nr (cURus)
E312083

Connection data (control side)

Wire connection method (control side)
Screw connection
Min. rated connection clamping range (control side)
0,5 mm²
Sección de embornado nominal, máx. (lado de mando)
2,5 mm²
Coppia di serraggio min. (lato di comando)
0,5 Nm
Max. tightening torque (control side)
1,2 Nm
Dimension de la lame (côté commande)
Tamaño PH2

Connection data (load side)

Метод проводного соединения (сторона нагрузки)
Screw connection
Min. rated connection clamping range (load side)
0,5 mm²
Sección de embornado nominal, máx. (lado de carga)
4 mm²
최소 조임 토크(부하 측)
0,5 Nm
Max. utahovací moment (strana zátěže)
1,2 Nm
Fej mérete (terhelés oldal)
Gr. PH2

Connection data

Ledaranslutningsteknik
Screw connection

Classifications

ETIM 8.0
EC001437
ETIM 9.0
EC001437
ETIM 10.0
EC001437
ECLASS 14.0
27-37-16-01
ECLASS 15.0
27-37-16-01
