RCM370S15
Product image
Similar to illustration
RCM370S15

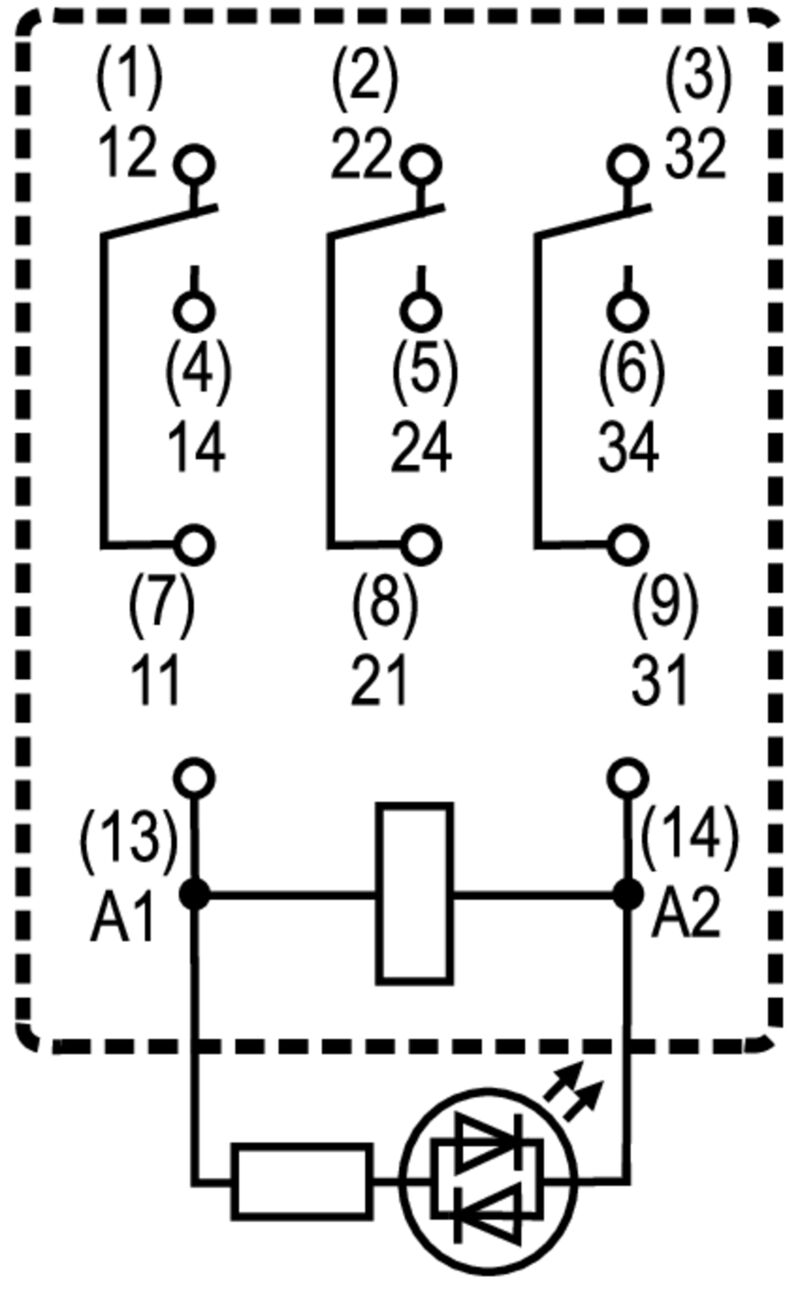

Wiring diagram
View of Pins from below
RCM370S15
Graph
DC load limit curve
Resistive load
RCM370S15
Graph
AC operational voltage range
RCM370S15
Graph
Electrical service life
250 V AC resistive load
RCM370S15
Graph
Derating curve
RCM370S15
Dimensional drawing
RCM370S15
Miscellaneous
Type codes

RCM370S15

Dette produkt er snart ikke længere tilgængeligt.

Last order date: /Date(1782770400000)/

RIDERSERIES RCM, Relay, Number of contacts: 3, CO contact AgNi, Rated control voltage: 115 V AC, Continuous current: 10 A, Plug-in connection, Test button available: Yes

Produkt ID 8689990000
Download datablad Engineering-support Produktdownloads
Tilbehør 14 Modstykker 1 Anvendte produkter 5
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Rated data UL Control side Load side General data Insulation coordination Further details of approvals / standards Connection data Classifications

Approvals

Omologazioni
![](https://assets.dam.weidmueller.com/assets/api/7849a070-6e16-4866-9b5a-c610b7f622e5/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/33feeb02-46e9-4a14-9d79-8ec5ee409fe3/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/756ea985-024d-4142-85a7-acc2e9775394/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/5855f480-81e6-48e1-aa53-1e87419df7ba/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Nr certyfikatu (cURus)
E522350

General ordering data

Version
RIDERSERIES RCM, Relay, Number of contacts: 3, CO contact AgNi, Rated control voltage: 115 V AC, Continuous current: 10 A, Plug-in connection, Test button available: Yes
Rendelési szám
8689990000
Típus
RCM370S15
GTIN (EAN)
4032248360666
Qty.
10 Styk
Delivery status
This article will no longer be available in the future.
Last order date
/Date(1782770400000)/

Dimensions and weights

Mélység
29 mm
Depth (inches)
1,142 inch
Magasság
28 mm
Height (inches)
1,102 inch
Szélesség
22,5 mm
Width (inches)
0,886 inch
Net weight
26,312 g

Temperatures

보관 온도
-40 °C...85 °C
Temperatura otoczenia
-40 °C…70 °C
Wilgotność
40 °C / 93 % rel. humidity, no condensation

Environmental Product Compliance

RoHS 준수 상태
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

Rated data UL

Certificate No. (cURus)
E522350

Control side

Rated control voltage
115 V AC
Rated current AC
9.2 mA
Märkeffekt
1058 mVA
Coil resistance
4845 Ω ± 12 %
Status indicator
red LED

Load side

Rated switching voltage
240 V AC
Continuous current
10 A
Max. switching frequency at rated load
0,1 Hz
Max. switching voltage, AC
250 V
Min. switching power
1 mA @ 24 V
10 mA @ 12 V
100 mA @ 5 V
Пусковой ток
20 A / 20 ms
AC switching capacity (resistive), max.
2500 VA
DC switching capacity (resistive), max.
240 W @ 24 V
Switch-on delay
≤ 15 ms
Switch-off delay
≤ 10 ms
Contact type
3 CO contact (AgNi)
Mechanical service life
AC coil 20 x 106 switching cycles
DC coil 30 x 106 switching cycles

General data

Dostępność przycisku testowego
Yes
Version of test button
Lockable test button
Momentary test button
Mechaniczny wskaźnik położenia przełącznika
Yes
Colour
Transparent
Klasa palności wg UL 94
V-2

Insulation coordination

Napięcie znamionowe
250 V
Stopień zanieczyszczenia
2
Kategoria przepięciowa
III
Insulating material group
IIIa
Clearance and creepage distances for control side - load side
≥ 4 mm
Dielectric strength for control side - load side
2.5 kVeff / 1 Min.
Wytrzymałość dielektryczna sąsiadujących styków
2.5 kVeff / 1 Min.
Dielectric strength of open contact
1.2 kVeff /1 min.
Impulse withstand voltage
5 kV (1.2/50 µs)
Protection degree
IP20

Further details of approvals / standards

Nr certyfikatu (CSA)
249409-2426937
Certificate No. (VDE)
40011762
Nr certyfikatu (cURus)
E522350

Connection data

Technique de raccordement de conducteurs
Plug-in connection

Classifications

ETIM 8.0
EC001437
ETIM 9.0
EC001437
ETIM 10.0
EC001437
ECLASS 14.0
27-37-16-01
ECLASS 15.0
27-37-16-01
