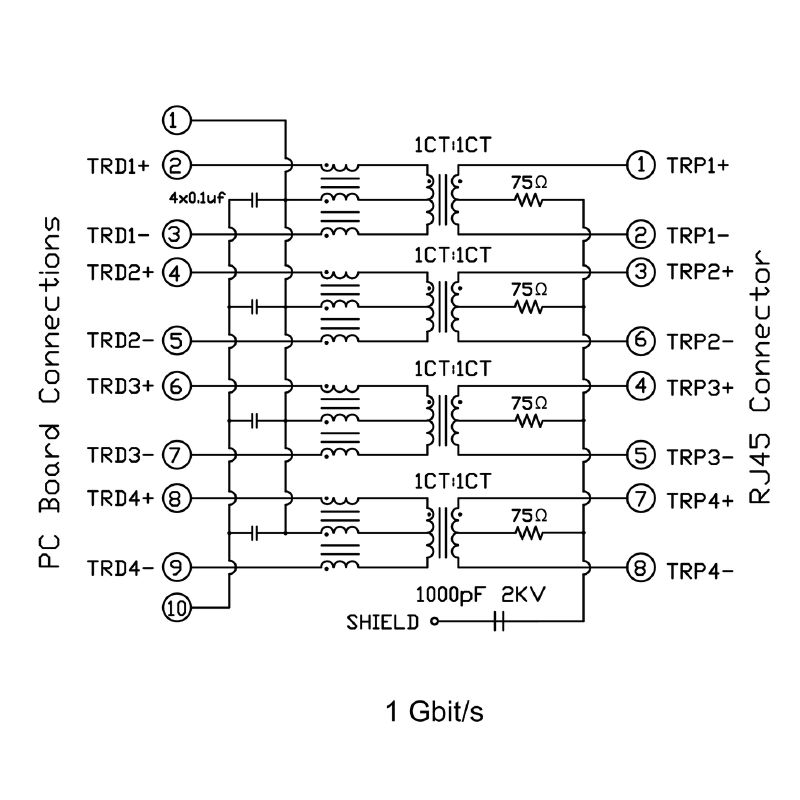

Wiring
RJ45G1 R1D 3.3E4GY/GY RL
RJ45G1 R1D 3.3E4GY/GY RL

RJ45G1 R1D 3.3E4GY/GY RL

OMNIMATE Data - RJ45 transformer jack, PCB plug-in connector, THT/THR solder connection, 90°, bottom, Yes, Plugging cycles: 750, Number of poles: 8, PA 9T, Tape

Tuotteen tunnus 2638860000
Lataa tietosivu Tekninen tuki Tuotelataukset
Vastineet 20 Samankaltaiset tuotteet 10
Approvals General ordering data Dimensions and weights Environmental Product Compliance System specifications Electrical properties Standards Material data Packing Classifications

Approvals

Approvals
![](https://assets.dam.weidmueller.com/assets/api/33feeb02-46e9-4a14-9d79-8ec5ee409fe3/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate No. (cURus)
E471884

General ordering data

Version
OMNIMATE Data - RJ45 transformer jack, PCB plug-in connector, THT/THR solder connection, 90°, bottom, Yes, Plugging cycles: 750, Number of poles: 8, PA 9T, Tape
Order No.
2638860000
Type
RJ45G1 R1D 3.3E4GY/GY RL
GTIN (EAN)
4050118657098
Qty.
200 items
Packaging
Tape

Dimensions and weights

Net weight
9,75 g

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

System specifications

Anslutningstyp
Solder connection
Anslutningsvinkel
90°
Antal poler
8
Colour of left LED
Green/yellow
Colour of right LED
Green/yellow
Delning i mm (P)
1,27 mm
Ekranowanie
Yes
Forward voltage, min.
1,8 V
Framspänning, max.
2,5 V
Framström
20 mA
Latch option
bottom
LED
Yes
Mounting onto the PCB
THT/THR solder connection
Pitch in inches (P)
0,05 "
Produktfamilj
OMNIMATE Data - RJ45 transformer jack
Skyddsklass
IP20
Solder pin dimensions
Octagonal
Soldering process
Reflow soldering
Manual soldering
Wave soldering
Stickcykler
750
Tolerance of solder pin position
± 0.1 mm
Боковая панель, свойства
Solder flange
솔더 핀 길이(l)
3,3 mm

Electrical properties

Dielectric strength, contact / contact
1000 V DC
Dielectric strength, contact / shield
1500 V DC
Insulation resistance
≥ 500 MΩ
Nominal voltage
125 V
Rated current
1.5 A

Standards

Connector standard
IEC 60603-7

Material data

Insulating material
PA 9T
Colour
black
Colour chart (similar)
RAL 9011
Insulation resistance
≥ 500 MΩ
Moisture Level (MSL)
1
UL 94 flammability rating
V-0
Contact material
Cu-alloy
Contact surface
Gold over nickel
Storage temperature, min.
-40 °C
Storage temperature, max.
85 °C
Operating temperature, min.
-40 °C
Operating temperature, max.
85 °C

Packing

Packaging
Tape
VPE length
356 mm
VPE width
353 mm
VPE height
131 mm

Classifications

ETIM 8.0
EC002637
ETIM 9.0
EC002637
ETIM 10.0
EC002637
ECLASS 14.0
27-46-02-01
ECLASS 15.0
27-46-02-01
