SAI-4-M-MVV-M12 S-COD
SAI-4-M-MVV-M12 S-COD

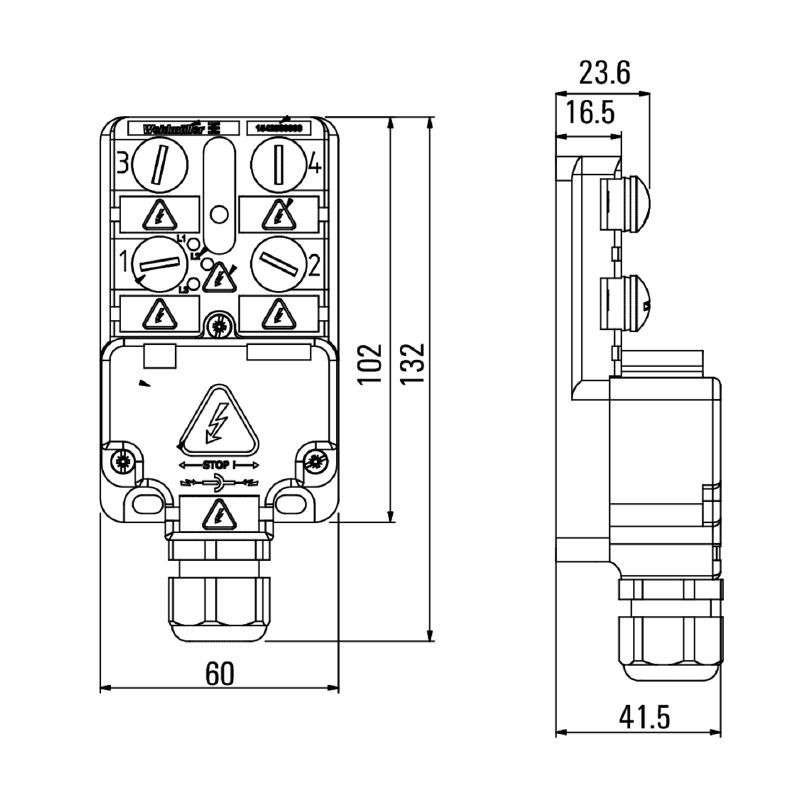

Dimensioned drawing
SAI-4-M-MVV-M12 S-COD
Wiring diagram
SAI-4-M-MVV-M12 S-COD

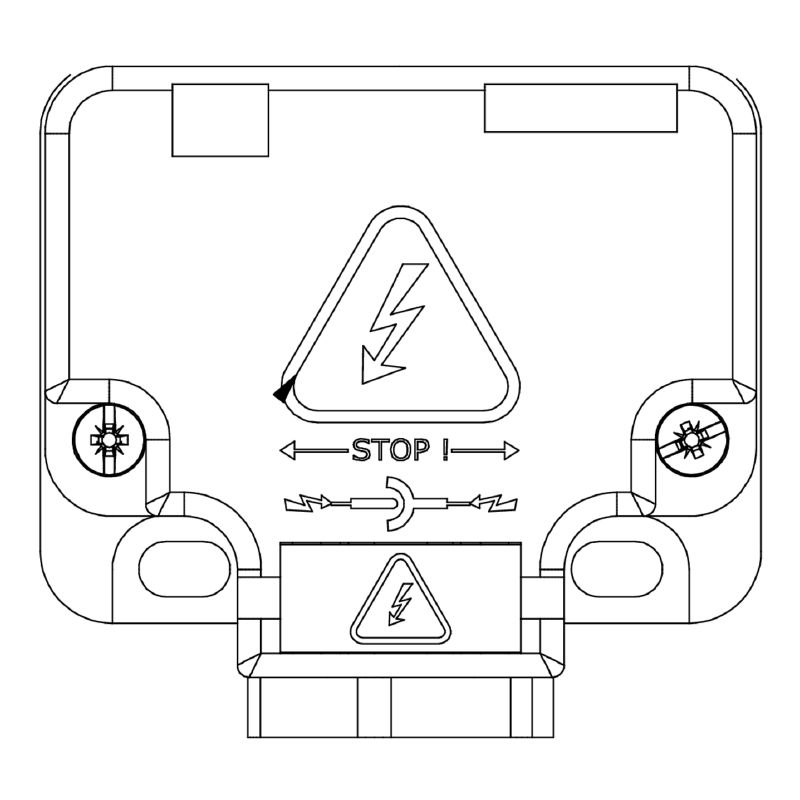

Printing

SAI-4-M-MVV-M12 S-COD

Hood version, M12, 400 V, S-coded, LED: Yes, LED initiator: , Wiring type:

Tuotteen tunnus 1542580000
Lataa tietosivu Product Downloads
Lisävarusteet 2 Samankaltaiset tuotteet 3
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Connection data Electrical data General technical data Material data Technical data cable Classifications

Approvals

Approvals
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319222/-S800/-T1z1mm-S80)
ROHS
Conform

General ordering data

Version
Hood version, M12, 400 V, S-coded, LED: Yes, LED initiator: , Wiring type:
Order No.
1542580000
Type
SAI-4-M-MVV-M12 S-COD
GTIN (EAN)
4050118347326
Qty.
1 items

Dimensions and weights

Net weight
200 g

Temperatures

Operating temperature
-20 - 80°C

Environmental Product Compliance

RoHS Compliance Status
Compliant with exemption
RoHS Exemption (if applicable/known)
6c
REACH SVHC
Lead 7439-92-1
SCIP
4060c755-8d0b-4d43-bdb3-4ffabe9d7497

Connection data

Conductor O.D., min.
6 mm
Conductor O.D., max.
12 mm
Sheathing stripping length
40 mm
Cable gland
M 20
Clamping range, min.
0,2 mm²
Clamping range, max.
6 mm²
Storage space
Standard
Distributor outlet
Hood version
Connection type PE
Screw connection

Electrical data

Rated voltage, max.
400 V
Rated voltage
400 V AC
Max. current-carrying capacity per slot
27,6 A
Total current
27.6 A
Current per signal
10 A
Electrical isolation available
No

General technical data

Plug-in station coding
S-coded
Protection degree
IP68
Number of poles
4
Number of contact sockets
4
Connection thread
M12
Pollution severity
3
Fire behaviour
V-0
Plugging cycles
≥ 50
LED
Yes
LED colour for indicating operation
yellow

Material data

Housing main material
Pocan
Material of distributor
Plastic
Housing colour
grey, RAL 7032
Hood sealing material
Viton
Screw socket
Nickel-plated CuZn
Contact material
CuZn
Contact surface
Gold-plated
Contact carrier material
PBT (UL 94 V0)

Technical data cable

Conductor O.D., max.
12 mm
Conductor O.D., min.
6 mm
Number of poles
4
Suitable for cable carriers
No

Classifications

ETIM 6.0
EC002585
ETIM 7.0
EC003558
ETIM 8.0
EC003558
ETIM 9.0
EC003558
ETIM 10.0
EC003558
ECLASS 9.0
27-44-01-08
ECLASS 9.1
27-44-01-08
ECLASS 10.0
27-44-01-11
ECLASS 11.0
27-44-01-11
ECLASS 12.0
27-44-01-11
ECLASS 13.0
27-44-01-11
ECLASS 14.0
27-44-01-11
ECLASS 15.0
27-44-01-11
