SAIE-M12BB-4S-13/14SMT
SAIE-M12BB-4S-13/14SMT

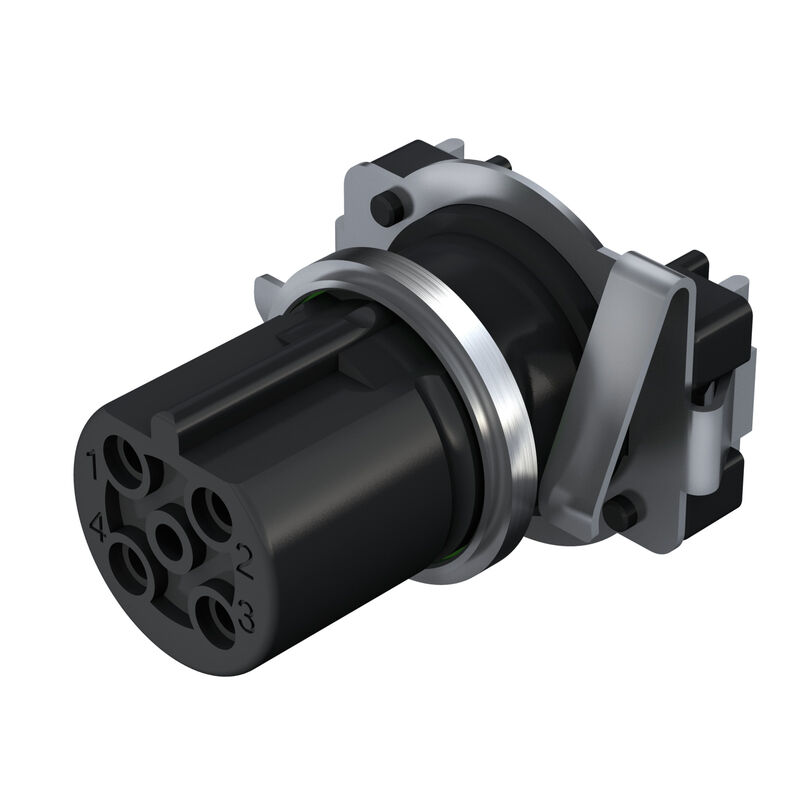

Similar to illustration
SAIE-M12BB-4S-13/14SMT

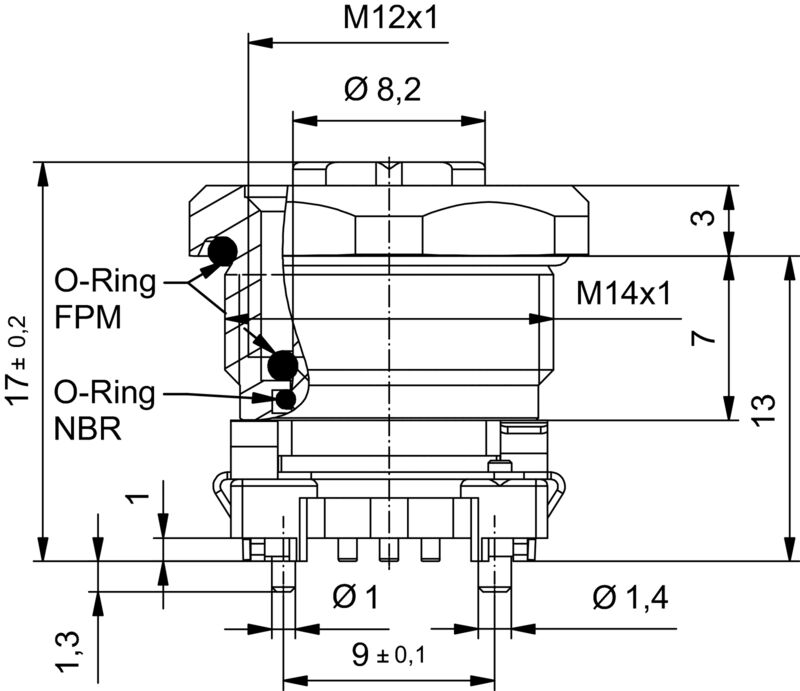

Dimensioned drawing
SAIE-M12BB-4S-13/14SMT
Pole scheme
M12 = B-coded
SAIE-M12BB-4S-13/14SMT
PCB design

SAIE-M12BB-4S-13/14SMT

Built-in plugs, M12, Mounting thread: M 14, Number of poles: 4, Strand / cable length:

Tuotteen tunnus 2423740000
Lataa tietosivu Engineering Support Product Downloads
Samankaltaiset tuotteet 26
Approvals General ordering data Dimensions and weights Environmental Product Compliance Technical data of PCB plug-in connector General Info Material data System parameters Classifications

Approvals

ROHS
Conform

General ordering data

Version
Built-in plugs, M12, Mounting thread: M 14, Number of poles: 4, Strand / cable length:
Order No.
2423740000
Type
SAIE-M12BB-4S-13/14SMT
GTIN (EAN)
4050118432190
Qty.
25 items

Dimensions and weights

Net weight
7,87 g

Environmental Product Compliance

RoHS Compliance Status
Compliant with exemption
RoHS Exemption (if applicable/known)
6c
REACH SVHC
Lead 7439-92-1
SCIP
0ea6d931-f9e9-40a6-89d9-8d67103189d3

Technical data of PCB plug-in connector

Coding
B-coded
Housing surface
nickel-plated
Housings
M12 socket
Installation height
13 mm
Mounting thread
M14
Number of poles
4
Shield connection
Yes
Nominal voltage
250 V
Rated voltage
250 V (4-pole) / 60 V (5-pole)
Nominal current
4 A
Rated current
4 A
Temperature range
-30…80 °C
Protection degree
IP67
Contact surface
Au (Gold)
Housing main material
CuZn
nickel-plated
Connection thread
M12
Tightening torque
M12: 0.8 Nm
Mounting thread
M 14
Mounting torque
  • max.:
    1,2 Nm
Mounting torque range
1.2 Nm
Mounting onto the PCB
SMD solder connection
Insulation resistance
100 MΩ
Pollution severity
3 (2 within the sealed area)
Plugging cycles
≥ 100
Contact material
Cu-alloy
Lock nut material
Nickel-plated CuZn
Material of the flange-mounted housing
Nickel-plated CuZn

General Info

Number of poles
4
Housing main material
CuZn
nickel-plated
Connection thread
M12
Contact material
Cu-alloy
Contact surface
Au (Gold)
Protection degree
IP67
Plugging cycles
≥ 100

Material data

Contact material
Cu-alloy
Contact surface
Au (Gold)

System parameters

Mounting onto the PCB
SMD solder connection
Insulation resistance
100 MΩ
Number of poles
4
Pin series quantity
1
Plugging cycles
≥ 100
Protection degree
IP67

Classifications

ETIM 6.0
EC002638
ETIM 7.0
EC003568
ETIM 8.0
EC003568
ETIM 9.0
EC003568
ETIM 10.0
EC003568
ECLASS 9.0
27-44-03-09
ECLASS 9.1
27-44-03-09
ECLASS 10.0
27-44-03-09
ECLASS 11.0
27-44-01-10
ECLASS 12.0
27-44-01-10
ECLASS 13.0
27-44-01-10
ECLASS 14.0
27-44-01-10
ECLASS 15.0
27-44-01-10
