SAIL-M12BW-4-2L20V
SAIL-M12BW-4-2L20V
Dimensioned drawing
Socket
SAIL-M12BW-4-2L20V
Pole scheme
Socket
SAIL-M12BW-4-2L20V
Wiring diagram

SAIL-M12BW-4-2L20V

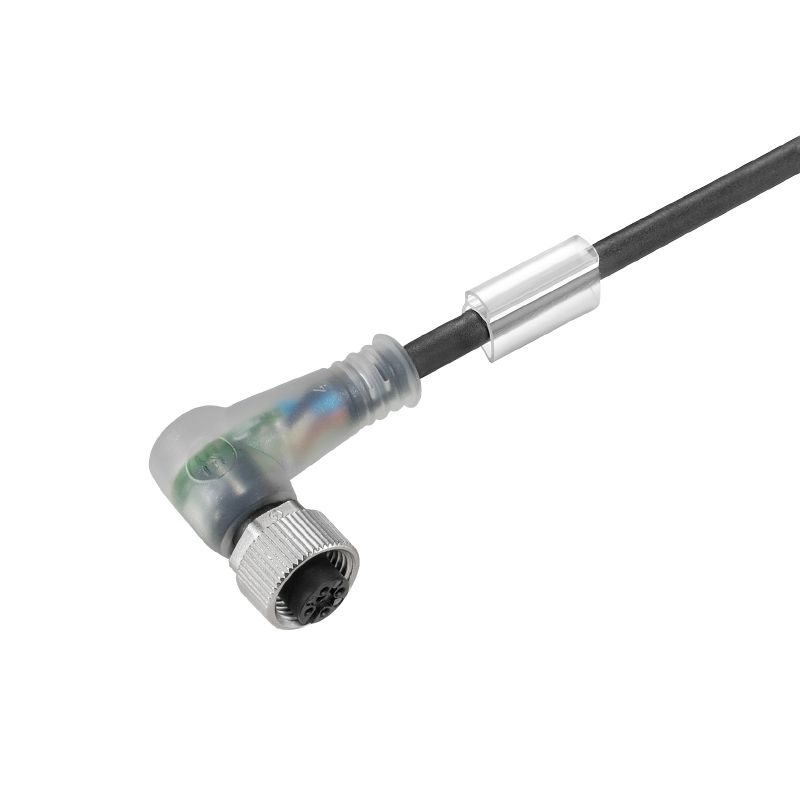

Sensor/actuator line, One end without connector, M12, Number of poles : 4, 20 m, Socket, angled, Shielded: No, LED: Yes, Sheath material: PVC, Halogen: Yes

Tuotteen tunnus 1925472000
Lataa tietosivu Tekninen tuki Tuotelataukset
Samankaltaiset tuotteet 5
Approvals General ordering data Dimensions and weights Environmental Product Compliance Technical specifications for cable General technical data Electrical properties General standards Standards Plug, left Plug, right Product images Classifications

Approvals

인증
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/7849a070-6e16-4866-9b5a-c610b7f622e5/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/5855f480-81e6-48e1-aa53-1e87419df7ba/DAP_Master_ICON,w_80,q_80)
ROHS
Conform

General ordering data

버전
Sensor/actuator line, One end without connector, M12, Number of poles : 4, 20 m, Socket, angled, Shielded: No, LED: Yes, Sheath material: PVC, Halogen: Yes
Order No.
1925472000
유형
SAIL-M12BW-4-2L20V
GTIN (EAN)
4050118455076
Qty.
1 items

Dimensions and weights

Net weight
39 g

Environmental Product Compliance

Status zgodności z dyrektywą RoHS
Compliant with exemption
RoHS Exemption (if applicable/known)
6c, 7cI
REACH SVHC
Lead 7439-92-1
SCIP
1c533b66-fcff-4da5-b89f-fd55fbf5cb55

Technical specifications for cable

Aislamiento
PVC
Cable length
20 m
Campo delle temperature, posa fissa
-30...80 °C
Core cross-section
0,34 mm²
Csavarási ellenállás
0 °/m
Gaine selon UL AWM
2464 (80 °C / 300 V)
Halogen
Yes
Hegesztési szikrákkal szembeni ellenállás
No
Keresztkötéses irradiáció
No
Longueur de câble configurable
No
Resistente alle perle di saldatura
No
Sheath material
PVC
Sheathing colour
black
Shielded
No
Suitable for cable carriers
No
Színkód gyűrű
brown
white
blue
black
온도 범위, 이동
-5...80 °C
외경
5.3 mm ± 0.2 mm
폴 수
4

General technical data

Contact surface
Gold-plated
Housing main material
PUR
Insulation resistance
108 Ω
jumpered
No
LED
Yes
Nominal current
4 A
Nominal voltage
24 V
Plugging cycles
≥ 100
Pollution severity
3
Protection degree
IP67
IP68
when screwed in
IP65
IP66
Temperature range of housing
-25…+85 °C
Threaded ring material
Diecast zinc
Tightening torque
M12: 0.8 - 1.2 Nm
Version
Socket, angled
Соединительная резьба
M12
编码
A-coded

Electrical properties

공칭 전압
24 V
절연 저항
108 Ω

General standards

Certificate No. (CSA)
200039-2372994
Connector standard
IEC 61076-2-101

Standards

Connector standard
IEC 61076-2-101

Plug, left

Plug left
M12, A-coded, IP69, female contact, angled 90°, Plastic, LED, unshielded

Plug, right

Plug right
free conductor end

Product images

Classifications

ETIM 8.0
EC001855
ETIM 9.0
EC001855
ETIM 10.0
EC001855
ECLASS 14.0
27-06-03-11
ECLASS 15.0
27-06-03-11
