SAIL-M12GM12G-CD-3.0B
SAIL-M12GM12G-CD-3.0B
Dimensioned drawing
Male, straight
SAIL-M12GM12G-CD-3.0B
Dimensioned drawing
Straight socket
SAIL-M12GM12G-CD-3.0B
Pole scheme
M12 = A-coded
SAIL-M12GM12G-CD-3.0B
Pole scheme
M12 = A-coded
SAIL-M12GM12G-CD-3.0B
Wiring diagram
SAIL-M12GM12G-CD-3.0B
The ideal tool: Screwty ® with torque function
Light, securely screwed-in round plug-in connectors. Screwty set DM / VPE: 1 / Order No.: 1920000000 Adapters: M12, M12 F, M8, M8 F

SAIL-M12GM12G-CD-3.0B

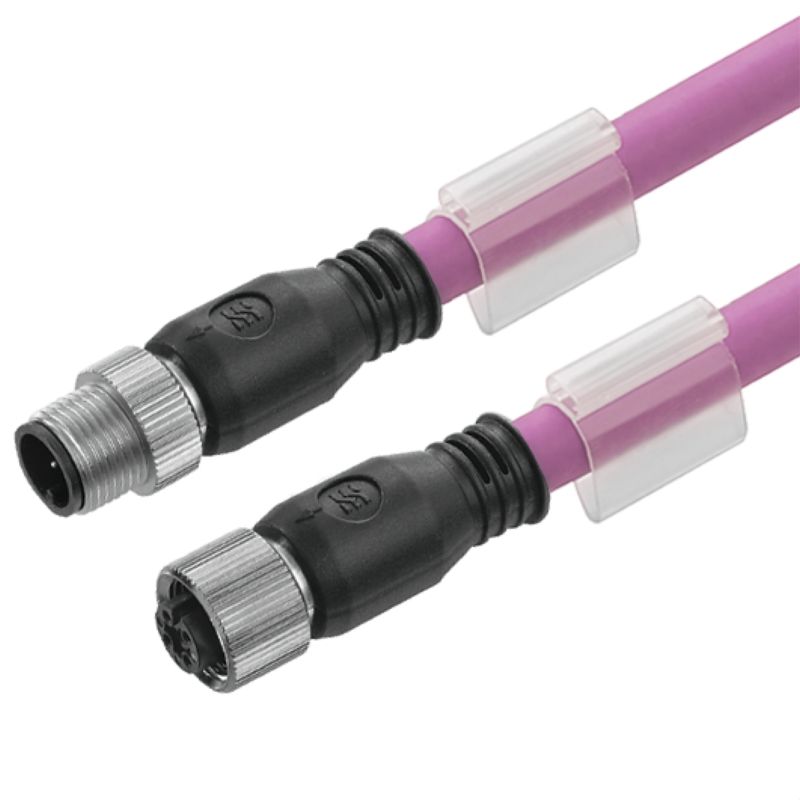

Bus line, Connecting line, M12 / M12, Number of poles: 5, 3 m, pin, straight - socket, straight, Shielded: Yes, LED: No, Sheath material: PVC, Halogen: Yes

Art.-Nr. 1060130300
Datenblatt herunterladen Product Downloads Engineering Support
Anvendte produkter 4
Approvals General ordering data Dimensions and weights Environmental Product Compliance Technical specifications for cable General technical data Electrical properties General standards Plug, left Plug, right Classifications

Approvals

Godkännanden
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319222/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319228/-S800/-T1z1mm-S80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate no. (cULus)
E307231

General ordering data

Utförande
Bus line, Connecting line, M12 / M12, Number of poles: 5, 3 m, pin, straight - socket, straight, Shielded: Yes, LED: No, Sheath material: PVC, Halogen: Yes
Art.nr.
1060130300
Typ
SAIL-M12GM12G-CD-3.0B
GTIN (EAN)
4032248809059
Qty.
1 Styk

Dimensions and weights

Net weight
220 g

Environmental Product Compliance

RoHS-kompatibilitetsstatus
Compliant with exemption
RoHS-undantag (om tillämpligt/känt)
6c
REACH SVHC
Lead 7439-92-1
SCIP
1c533b66-fcff-4da5-b89f-fd55fbf5cb55

Technical specifications for cable

Acceleration
5 m/s²
Antal poler
5
Bending cycles
3 Mio
Bending radius, min., moving
10 x cable diameter
Bending radius, min., stationary
5 x cable diameter
Cable length
3 m
Colour coding
white
blue
red
black
Configurable cable length
No
Gaine selon UL AWM
2571 (80 °C)
Halogene
Yes
Hibrid kábel
No
Irradiazione con legami trasversali
No
Isolation
PVC
Material de la funda
PVC
Resistenza alle scintille di saldatura
No
Sheathing colour
violet
Speed
180 m/s
Stíněný
Yes
Suitable for cable carriers
No
Wire cross section (Print/Online)
2 x 0.34 mm² + 2 x 0.22 mm²
Ytterdiameter
7 mm ± 0.3 mm
Zakres temperatur, stały
-40...80 °C
Диапазон температур, движущ.
-10...80 °C
Устойчивые к каплям сварочного металла
No

General technical data

Coding
A-coded
Connection thread
M12 / M12
Contact material
Ni/Au
Contact surface
Gold-plated
Housing main material
PUR
jumpered
No
LED
No
Nominal current
4 A
Nominal voltage
125 V
Plugging cycles
≥ 100
Pollution severity
3
Protection degree
IP67
Threaded ring material
Brass, nickel-plated
Tightening torque
M12: 0.8 - 1.2 Nm
Version
pin, straight - socket, straight
外壳温度范围
-25…+80 °C

Electrical properties

Nominell spänning
125 V

General standards

Certificate no. (cULus)
E307231

Plug, left

Plug left
M12, A-coded, IP67, male contact, straight, Plastic, shielded

Plug, right

Plug right
M12, A-coded, IP67, female contact, straight, Plastic, shielded

Classifications

ETIM 8.0
EC002599
ETIM 9.0
EC002599
ETIM 10.0
EC002599
ECLASS 14.0
27-06-03-08
ECLASS 15.0
27-06-03-08
