SAIL-M12GM12W-3-5.0V
SAIL-M12GM12W-3-5.0V
Dimensioned drawing
Male, straight
SAIL-M12GM12W-3-5.0V
Dimensioned drawing
Angled socket
SAIL-M12GM12W-3-5.0V
Pole scheme
Male
SAIL-M12GM12W-3-5.0V
Pole scheme
Socket
SAIL-M12GM12W-3-5.0V
Wiring diagram
Schaltbild

SAIL-M12GM12W-3-5.0V

Sensor/Aktor-Leitung, Verbindungsleitung, M12 / M12, Polzahl : 3, 5 m, Stift, gerade - Buchse, gewinkelt, Geschirmt: Nein, LED: Nein, Mantelmaterial: PVC, Halogene: Ja

Ürün No. 1925340500
Veri sayfasını indir 제품 다운로드 Инженерная поддержка
Tillbehör 7 Använda produkter 9
Zulassungen Allgemeine Bestelldaten Méretek és tömegek Umweltanforderungen Technical specifications for cable General technical data Electrical properties General standards Standards Plug, left Plug, right Product images Klassifikationen

Zulassungen

Approvals
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/0d1637a4-c7dd-4915-8bc8-4c9de8d8b393/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate no. (cULus)
E307231

Allgemeine Bestelldaten

Version

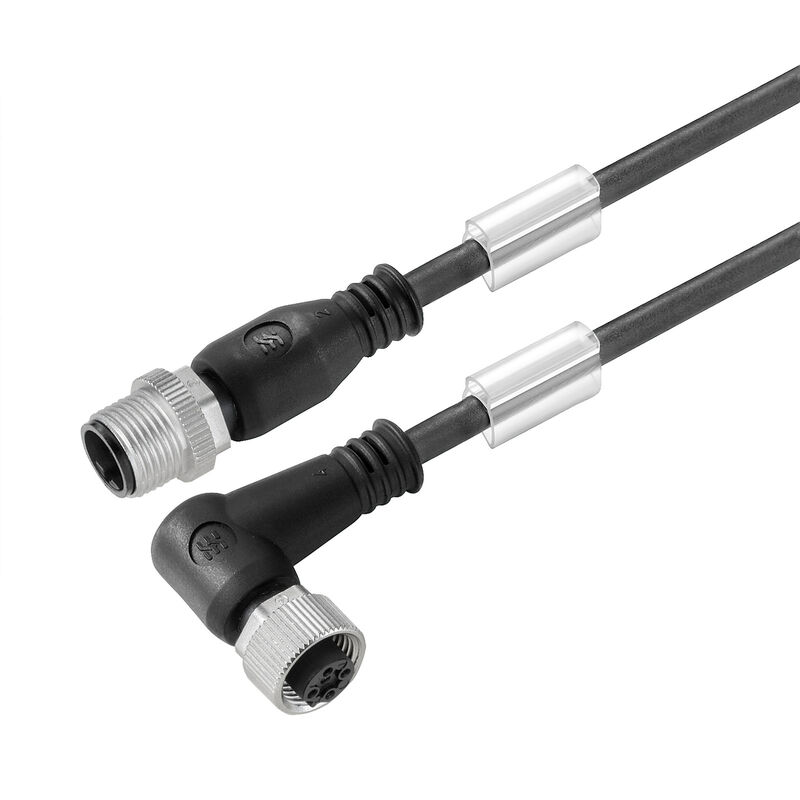

Sensor/Aktor-Leitung, Verbindungsleitung, M12 / M12, Polzahl : 3, 5 m, Stift, gerade - Buchse, gewinkelt, Geschirmt: Nein, LED: Nein, Mantelmaterial: PVC, Halogene: Ja
Order No.
1925340500
Type
SAIL-M12GM12W-3-5.0V
GTIN (EAN)
4032248567744
Qty.
1 items

Méretek és tömegek

Peso netto
174,24 g

Umweltanforderungen

RoHS Compliance Status
Konform mit Ausnahme
RoHS Exemption (if applicable/known)
6c
REACH SVHC
Lead 7439-92-1
SCIP
1c533b66-fcff-4da5-b89f-fd55fbf5cb55

Technical specifications for cable

Cable length
5 m
Colour coding
brown
blue
black
Configurable cable length
Yes
Core cross-section
0,34 mm²
Halogen
Tak
Insulation
PVC
Irradiation crosslinked
No
Number of poles
3
Outer cladding in accordance with UL AWM style
2464 (80 °C / 300 V)
Outside diameter
4.9 mm ± 0.2 mm
Resistant to welding beads
No
Sheath material
PVC
Sheathing colour
black
Shielded
No
Suitable for cable carriers
Nein
Temperature range, moving
-5...80 °C
Temperature range, stationary
-30...80 °C
Torsion resistance
0 °/m
Welding spark resistance
Nein

General technical data

Coding
A-coded
Connection thread
M12 / M12
Contact surface
Gold-plated
Housing main material
PUR
Insulation resistance
108 Ω
LED
No
Material Gewindering
Diecast zinc
Nominal current
4 A
Nominal voltage
250 V
Plugging cycles
≥ 100
Pollution severity
3
propojeno můstkem
No
Protection degree
IP67
IP68
when fully mounted
IP65
IP66
Rango de temperatura caja
-25…+85 °C
Shock and vibration proof according to
Abschnitt B
Tightening torque
M12: 0,8 - 1,2 Nm
Version
Stift, gerade - Buchse, gewinkelt

Electrical properties

Insulation resistance
108 Ω
Nominal voltage
250 V

General standards

Certificate no. (cULus)
E307231
Connector standard
IEC 61076-2-101

Standards

Connector standard
IEC 61076-2-101
Shock and vibration proof according to
Oddíl B

Plug, left

Csatlakozó, bal
M12, A-coded, IP69, male contact, straight, Plastic, unshielded

Plug, right

Csatlakozó, jobb
M12, Kodowanie A, IP69, styk żeński, zakrzywiony 90°, Tworzywo sztuczne, nieekranowane

Product images

Klassifikationen

ETIM 8.0
EC001855
ETIM 9.0
EC001855
ETIM 10.0
EC001855
ECLASS 14.0
27-06-03-11
ECLASS 15.0
27-06-03-11
