SAIL-M12GM8GR-3-10U
SAIL-M12GM8GR-3-10U
Dimensioned drawing
Male, straight
SAIL-M12GM8GR-3-10U
Dimensioned drawing
Straight socket
SAIL-M12GM8GR-3-10U
Pole scheme
Male
SAIL-M12GM8GR-3-10U
Pole scheme
Socket
SAIL-M12GM8GR-3-10U
Wiring diagram
Schaltbild

SAIL-M12GM8GR-3-10U

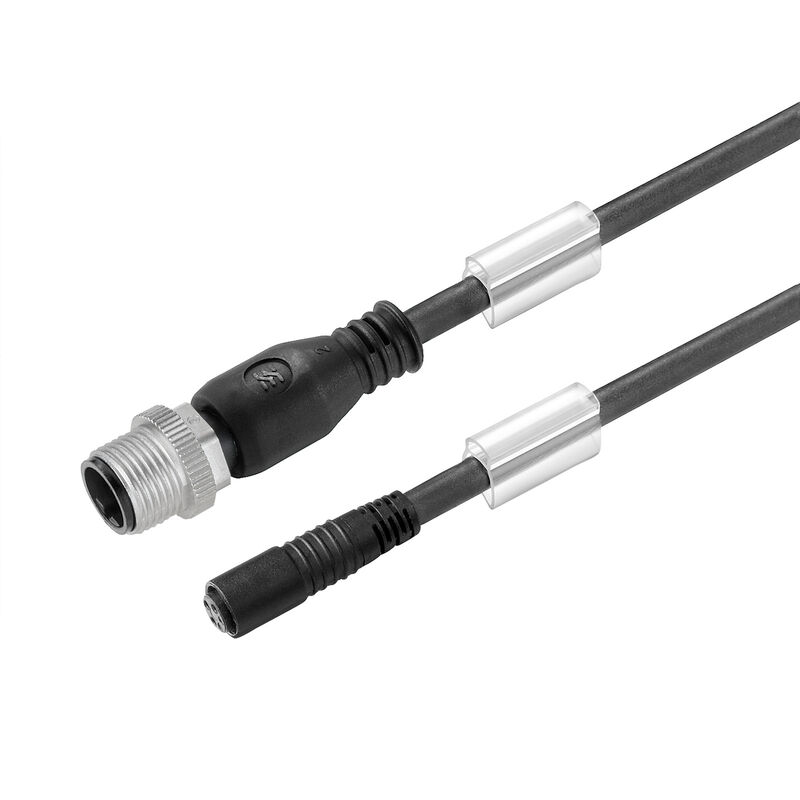

Sensor/actuator line, Connecting line, M12 / M8, Number of poles : 3, 10 m, pin, straight - socket, straight, Shielded: No, LED: No, Sheath material: PUR, Halogen: No

Produkt ID 1984531000
Download datablad Produktdownloads Engineering-support
Tilbehør 6 Anvendte produkter 11
Approvals General ordering data Dimensions and weights Environmental Product Compliance Technical specifications for cable General technical data Electrical properties Общие стандарты Стандарты Plug, left Plug, right Product images Classifications

Approvals

Zulassungen
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
ROHS
Conform

General ordering data

Ausfuehrung
Sensor/actuator line, Connecting line, M12 / M8, Number of poles : 3, 10 m, pin, straight - socket, straight, Shielded: No, LED: No, Sheath material: PUR, Halogen: No
Order No.
1984531000
Art
SAIL-M12GM8GR-3-10U
GTIN (EAN)
4032248691388
Qty.
1 Styk

Dimensions and weights

Diameter
3,6 mm
Net weight
218 g

Environmental Product Compliance

RoHS Compliance Status
Compliant with exemption
RoHS Exemption (if applicable/known)
6c
REACH SVHC
Lead 7439-92-1
SCIP
1c533b66-fcff-4da5-b89f-fd55fbf5cb55

Technical specifications for cable

Acceleration
5 m/s²
Außendurchmesser
3.6 mm + 0.15 mm
Barevné kódování
brun
bleu
noir
Bending cycles
5 Mio
Bending radius, min., moving
10 x kábelátmérő
Bending radius, min., stationary
5 x kábelátmérő
Biegezyklen bei Torsionsbeanspruchung
> 5 Mio.
Cable length
10 m
Configurable cable length
Nie
Core cross-section
0,25 mm²
Core in accordance with UL AWM style
10493 (80 °C / 300 V)
Drain wire integrated
No
Halogen
No
Hydrolysis and microbe resistant
Yes
Insulation
PP
Irradiation crosslinked
No
Outer cladding in accordance with UL AWM style
20549 (80 °C / 300 V)
Polzahl
3
Resistance to oils
Yes
Resistance to spread of flame
in accordance with IEC 60332-2-2
In accordance with UL1581 UL / CUL FT2
Schweißperlenfest
No
Sheath material
PUR
Sheathing colour
black (similar to RAL 9005)
Shielded
No
Speed
3,33 m/s
Suitable for cable carriers
Yes
Temperaturbereich, bewegt
-25...60 °C
Temperaturbereich, fest verlegt
-50...80 °C
Torsionsfestigkeit
180 °/m
Torsionslänge
1 m
Welding spark resistance
No

General technical data

IP65 (in plugged condition)
Coding
M12 = A-coded / M8 = none
Connection thread
M12/M8
Contact surface
Gold-plated
Housing main material
PUR
Insulation resistance
108 Ω
jumpered
No
LED
No
Nominal current
4 A
Nominal voltage
60 V
Plugging cycles
≥ 100
Pollution severity
3
Temperature range of housing
-25…+85 °C
Threaded ring material
Diecast zinc
PUR
Tightening torque
M12: 0.8 - 1.2 Nm
Version
pin, straight - socket, straight

Electrical properties

Isolationswiderstand
108 Ω
Nennspannung
60 V

Общие стандарты

Connector standard
IEC 61076-2-101
IEC 61076-2-104

Стандарты

Connector standard
IEC 61076-2-101
IEC 61076-2-104

Plug, left

Plug left
M12, A-coded, IP69, male contact, straight, Plastic, unshielded

Plug, right

Plug right
M8, IP69, female contact, straight, Plastic, unshielded

Product images

Classifications

ETIM 8.0
EC001855
ETIM 9.0
EC001855
ETIM 10.0
EC001855
ECLASS 14.0
27-06-03-11
ECLASS 15.0
27-06-03-11
