SAIL-M12W-5-1.5T
SAIL-M12W-5-1.5T
Dimensioned drawing
Male, angled
SAIL-M12W-5-1.5T
Pole scheme
M12 = A-coded
SAIL-M12W-5-1.5T
Wiring diagram

SAIL-M12W-5-1.5T

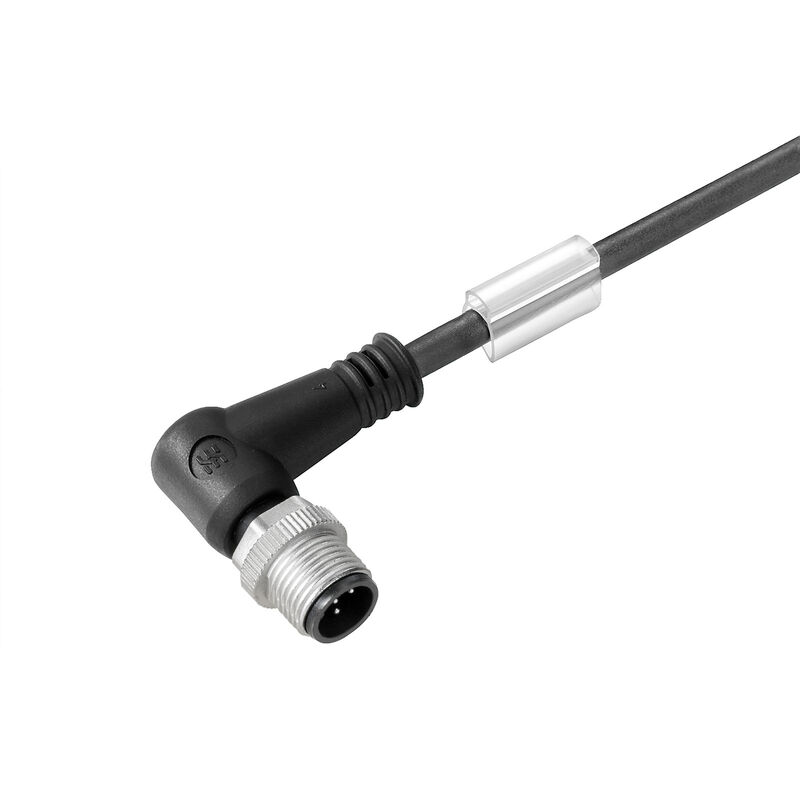

Przewód czujnik/element wykonawczy, Jeden koniec bez złącza, M12, Liczba biegunów : 5, 1.5 m, styk, 90°, Ekranowane: Nie, LED: Nie, Materiał płaszcza: PUR, Halogenki: Nie

N. articolo 1021660150
Download foglio dati Mühendislik desteği Ürün İndirmleri
Aksesuarlar 7 İlgili ürünler 4
Approvals Ogólne dane zamówieniowe Dimensions and weights Zgodność produktu z wymogami środowiska naturalnego 케이블의 기술 사양 일반 기술 데이터 전기 속성 일반 표준 표준 플러그, 좌 플러그, 우 Product images Klasyfikacje

Approvals

Approvals
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/0d1637a4-c7dd-4915-8bc8-4c9de8d8b393/DAP_Master_ICON,w_80,q_80)
ROHS
Соответствовать
UL File Number Search
[UL-webbplats](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
N° Certificato (cULus)
E307231

Ogólne dane zamówieniowe

Version
Przewód czujnik/element wykonawczy, Jeden koniec bez złącza, M12, Liczba biegunów : 5, 1.5 m, styk, 90°, Ekranowane: Nie, LED: Nie, Materiał płaszcza: PUR, Halogenki: Nie
Order No.
1021660150
Type
SAIL-M12W-5-1.5T
GTIN (EAN)
4032248735167
Qty.
1 items

Dimensions and weights

Net weight
65,12 g

Zgodność produktu z wymogami środowiska naturalnego

RoHS Compliance Status
Zgodne, z wyłączeniem
RoHS Exemption (if applicable/known)
6c
REACH SVHC
Lead 7439-92-1
SCIP
1c533b66-fcff-4da5-b89f-fd55fbf5cb55

케이블의 기술 사양

Acceleration
5 m/s²
Bending cycles
10 Mio
Bending radius, min., moving
7.5 x 케이블 직경
Bending radius, min., stationary
4 x 케이블 직경
Cable length
1,5 m
Colour coding
갈색
흰색
파란색
검은색
회색
Configurable cable length
아니요
Core cross-section
0,34 mm²
Halogen
아니요
Insulation
PP
Irradiation crosslinked
아니요
Number of poles
5
Outer cladding in accordance with UL AWM style
20233 (80 °C / 300 V)
Outside diameter
5.1 mm ± 0.2 mm
Resistant to welding beads
예
Sheath material
PUR
Sheathing colour
검정
Shielded
아니요
Speed
200 m/s
Suitable for cable carriers
예
Temperature range, moving
-30...105 °C
Temperature range, stationary
-40...105 °C
Torsion resistance
360 °/m
Welding spark resistance
예

일반 기술 데이터

AF size
12 mm
Coding
A-코딩
Connection thread
M12
Contact surface
금도금
Housing main material
PUR
Insulation resistance
108Ω
jumpered
아니요
LED
아니요
Nominal current
4 A
Nominal voltage
60 V
Par de apriete
M12: 0.8 - 1.2 Nm
Plugging cycles
≥ 100
Pollution severity
3
Protection degree
IP65
IP66
IP67
IP68
IP69
스크류된 경우
Rango de temperatura caja
-25…+85 °C
Threaded ring material
주조 아연
Version
핀, 90°

전기 속성

Insulation resistance
108Ω
Nominal voltage
60 V

일반 표준

Certificate no. (cULus)
E307231
Connector standard
IEC 61076-2-101

표준

Connector standard
IEC 61076-2-101

플러그, 좌

Plug left
M12, A-코딩, IP69, 수형 접점, 90° 꺾임, 플라스틱, 비차폐

플러그, 우

Plug right
자유 컨덕터 엔드

Product images

Klasyfikacje

ETIM 8.0
EC001855
ETIM 9.0
EC001855
ETIM 10.0
EC001855
ECLASS 14.0
27-06-03-11
ECLASS 15.0
27-06-03-11
