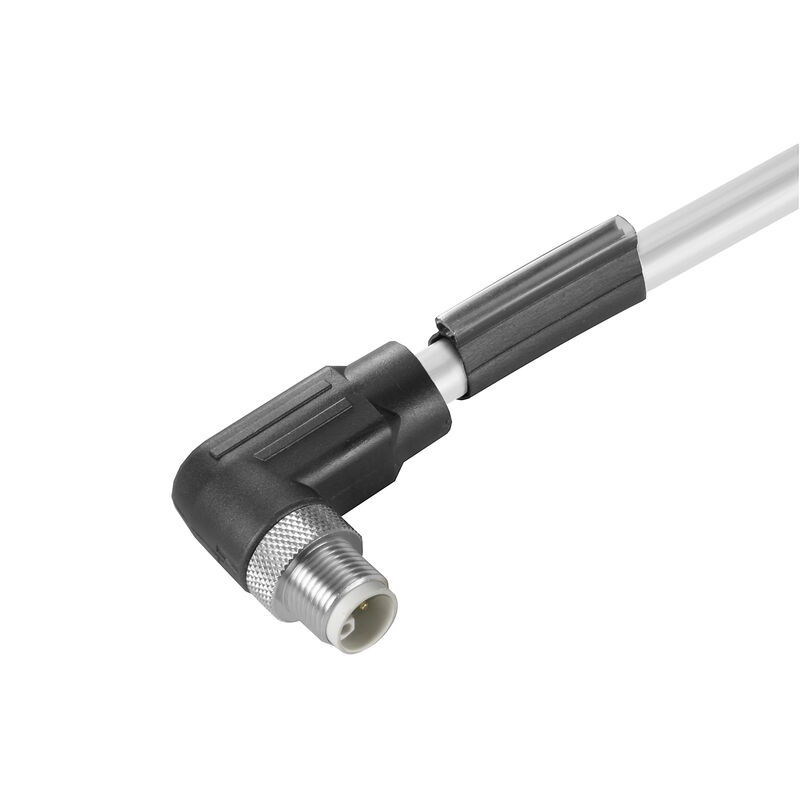

SAIL-M12W-L-5.0PGR
Sensor/actuator line, One end without connector, M12, Number of poles : 5, 5 m, pin, 90°, Shielded: No, LED: No, Sheath material: PUR, Halogen: No
Ürün No.
2455240500
Özellikler
| Version | Sensor/actuator line, One end without connector, M12, Number of poles : 5, 5 m, pin, 90°, Shielded: No, LED: No, Sheath material: PUR, Halogen: No |
| Order No. | 2455240500 |
| Type | SAIL-M12W-L-5.0PGR |
| GTIN (EAN) | 4050118470222 |
| Qty. | 1 adet |
| Net weight | 300 g |
| RoHS Compliance Status | Compliant with exemption |
| RoHS Exemption (if applicable/known) | 6c |
| REACH SVHC | Lead 7439-92-1 |
| SCIP | e8d8af70-4c85-4483-bc8c-9bc5b598e2a9 |
| Acceleration | 5 m/s² |
| Bending cycles | 10 Mio |
| Bending radius, min., moving | 7.5 x cable diameter |
| Bending radius, min., stationary | 4 x cable diameter |
| Cable length | 5 m |
| Colour coding |
brown
white blue black pink |
| Configurable cable length | No |
| Core cross-section | 1,5 mm² |
| Halogen | No |
| Insulation | PP |
| Irradiation crosslinked | No |
| Number of poles | 5 |
| Outer cladding in accordance with UL AWM style | 20939 (80 °C / 600 V) |
| Outside diameter | 8 mm ± 0.2 mm |
| Resistant to welding beads | No |
| Sheath material | PUR |
| Sheathing colour | grey |
| Shielded | No |
| Speed | 5 m/s |
| Suitable for cable carriers | Yes |
| Temperature range, moving | -30...80 °C |
| Temperature range, stationary | -40...80 °C |
| Welding spark resistance | No |
| Coding | L-coded |
| Connection thread | M12 |
| Contact surface | Gold-plated |
| Housing main material | PUR |
| Insulation strength | 108 Ω |
| jumpered | No |
| LED | No |
| Plugging cycles | ≤ 100 |
| Pollution severity | 3 |
| Protection degree |
IP65
IP67 when screwed in |
| Rated current | 16 A |
| Rated voltage | 50 V |
| Temperature range of housing | -40 … +85 ° C |
| Tightening torque | M12: 0.8 - 1.2 Nm |
| Version | pin, 90° |
| Insulation strength | 108 Ω |
| Rated voltage | 50 V |
| Certificate no. (cULus) | E257571 |
| Connector standard | IEC 61076-2-111 |
| Connector standard | IEC 61076-2-111 |
| Plug left | M12, L-coded, IP67, male contact, angled 90°, Plastic, unshielded |
| Plug right | free conductor end |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_167058) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=2455240500) |
| Product Change Notification |
[PCN-PB46-20200713-00-A de](https://mdcop.weidmueller.com/mediadelivery/asset/900_165093)
[PCN-PB46-20200713-00-A en](https://mdcop.weidmueller.com/mediadelivery/asset/900_165094) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| Brochures | [FL FIELDWIRING EN](http://download.weidmueller.com/asset/download/file/38293) |
| ETIM 6.0 | EC001855 |
| ETIM 7.0 | EC001855 |
| ETIM 8.0 | EC001855 |
| ETIM 9.0 | EC001855 |
| ECLASS 9.0 | 27-06-03-11 |
| ECLASS 9.1 | 27-06-03-11 |
| ECLASS 10.0 | 27-06-03-11 |
| ECLASS 11.0 | 27-06-03-11 |
| ECLASS 12.0 | 27-06-03-11 |
| ECLASS 13.0 | 27-06-03-11 |
| ECLASS 14.0 | 27-06-03-11 |
| Approvals |    |
| ROHS | Conform |
| UL File Number Search | [UL Website](LINK/UL_search.html) |
| Certificate no. (cULus) | E257571 |
