SAIL-M8BG-3L3.0U
SAIL-M8BG-3L3.0U
Dimensioned drawing
Straight socket
SAIL-M8BG-3L3.0U
Pole scheme
Socket
SAIL-M8BG-3L3.0U
Wiring diagram
SAIL-M8BG-3L3.0U
The ideal tool: Screwty ® with torque function
Light, securely screwed-in round plug-in connectors. Screwty set DM / VPE: 1 / Order No.: 1920000000 Adapters: M12, M12 F, M8, M8 F

SAIL-M8BG-3L3.0U

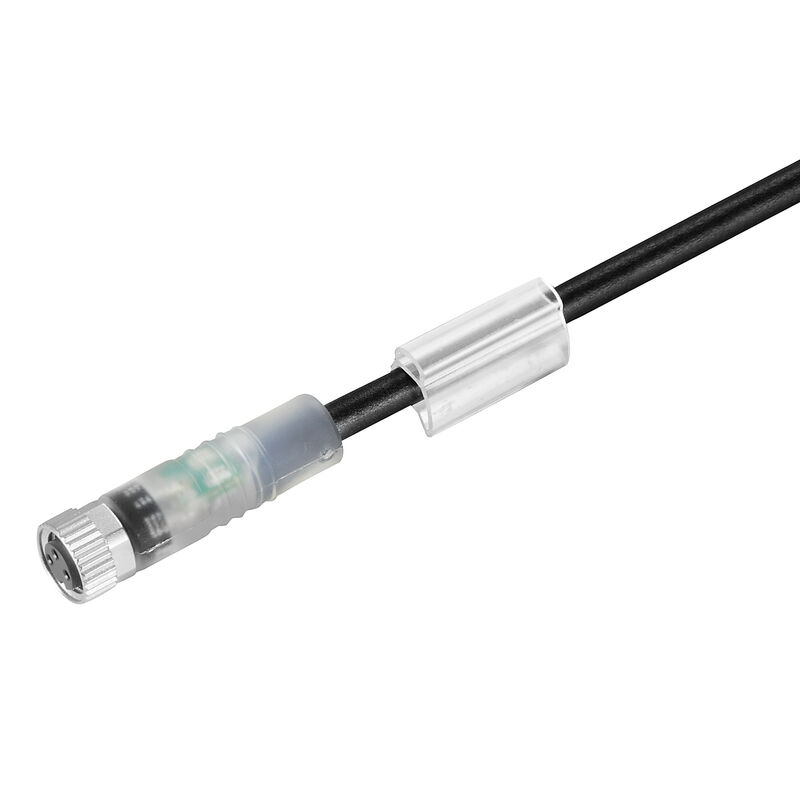

Sensor/actuator line, One end without connector, M8, Number of poles : 3, 3 m, Female socket, straight, Shielded: No, LED: Yes, Sheath material: PUR, Halogen: No

Product ID 1444180300
Gegevensblad downloaden
Toebehoren 6 Verwante producten 4
Approvals General ordering data Dimensions and weights Environmental Product Compliance Technical specifications for cable General technical data Electrical properties General standards Standards Plug, left Plug, right Klassificeringar

Approvals

Approvals
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/0d1637a4-c7dd-4915-8bc8-4c9de8d8b393/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/5855f480-81e6-48e1-aa53-1e87419df7ba/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate no. (cULus)
E307231

General ordering data

Version
Sensor/actuator line, One end without connector, M8, Number of poles : 3, 3 m, Female socket, straight, Shielded: No, LED: Yes, Sheath material: PUR, Halogen: No
Order No.
1444180300
Type
SAIL-M8BG-3L3.0U
GTIN (EAN)
4050118249620
Qty.
1 items

Dimensions and weights

Net weight
70 g

Environmental Product Compliance

RoHS Compliance Status
Compliant
REACH SVHC
Lead 7439-92-1
SCIP
ebf89fc8-a87f-4691-b87a-dfb9921774b4

Technical specifications for cable

PP
Acceleration
5 m/s²
Bending cycles at torsion
> 5 Mio.
Bending radius, min., moving
10 x cable diameter
Cable length
3 m
Core cross-section
0,25 mm²
Hajlítási ciklusok
12 Mio
Halogen
No
Kodowanie kolorami
brown
blue
black
Konfigurowalna długość kabla
No
Length of torsion
1 m
Lángterjedéssel szembeni ellenállás
in accordance with IEC 60332-2-2
In accordance with UL1581 UL / CUL FT2
Materiale della guaina
PUR
Number of poles
3
Odolnost vůči olejům
in accordance with IEC 60811:404
Odporne na hydrolizę i działanie mikroorganizmów
Yes
Odporność na iskry spawalnicze
No
Outside diameter
4.1 mm ± 0.2 mm
Rayon de courbure, min., fixe
5 x cable diameter
Rdzeń zgodnie z UL AWM style
10493 (80 °C / 300 V)
Sebesség
5 m/s
Sheathing colour
black
Shielded
No
Sieciowane radiacyjnie
No
Suitable for cable carriers
Yes
Säker mot svetsstänk
No
Temperature range, moving
-25...80 °C
Zewnętrzna okładzina zgodnie z UL AWM style
20549 (80 °C / 300 V)
Диапазон температур, стацион.
-40...80 °C
Прочность при кручении
360 °/m

General technical data

Coding
A-coded
Connection thread
M8
Contact surface
Gold-plated
Housing main material
PUR
Insulation resistance
108 Ω
jumpered
No
LED
Yes
Nominal current
4 A
Nominal voltage
24 V
Plugging cycles
≥ 100
Pollution severity
3
Protection degree
IP67
IP68
when screwed in
IP65
IP66
Temperature range of housing
-25…+85 °C
Threaded ring material
Brass, nickel-plated
Version
Female socket, straight

Electrical properties

Insulation resistance
108 Ω
Nominal voltage
24 V

General standards

Certificate no. (cULus)
E307231
Connector standard
IEC 61076-2-104

Standards

Connector standard
IEC 61076-2-104

Plug, left

Plug left
M8, IP69, female contact, straight, Plastic, LED, unshielded

Plug, right

Plug right
free conductor end

Klassificeringar

ETIM 8.0
EC001855
ETIM 9.0
EC001855
ETIM 10.0
EC001855
ECLASS 14.0
27-06-03-11
ECLASS 15.0
27-06-03-11
