SAIL-M8BW-3-35U
SAIL-M8BW-3-35U
Dimensioned drawing
Angled socket
SAIL-M8BW-3-35U
Pole scheme
Socket
SAIL-M8BW-3-35U
Wiring diagram

SAIL-M8BW-3-35U

Dit product is binnenkort niet meer beschikbaar.

Last order date: /Date(1790719200000)/

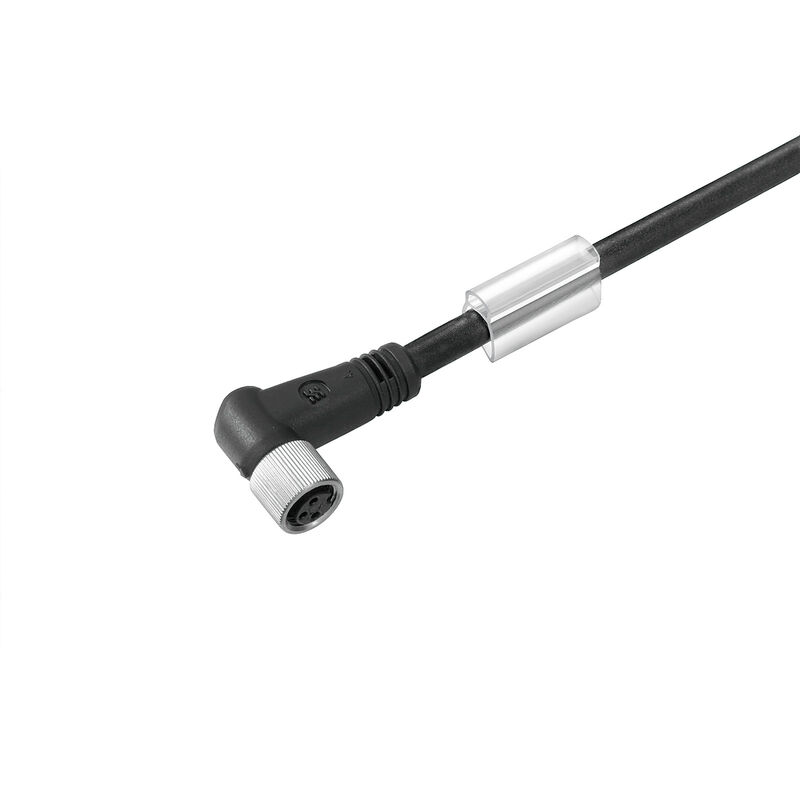

Sensor/actuator line, One end without connector, M8, Number of poles : 3, 35 m, Socket, angled, Shielded: No, LED: No, Sheath material: PUR, Halogen: No

Product ID 9457383500
Gegevensblad downloaden Engineeringondersteuning Productdownloads
Verwante producten 13
Approvals General ordering data Dimensions and weights Environmental Product Compliance Technical specifications for cable General technical data Electrical properties General standards Plug, left Plug, right Product images Classifications

Approvals

Approvals
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/0d1637a4-c7dd-4915-8bc8-4c9de8d8b393/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/5855f480-81e6-48e1-aa53-1e87419df7ba/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate no. (cULus)
E307231

General ordering data

Version
Sensor/actuator line, One end without connector, M8, Number of poles : 3, 35 m, Socket, angled, Shielded: No, LED: No, Sheath material: PUR, Halogen: No
Order No.
9457383500
Type
SAIL-M8BW-3-35U
GTIN (EAN)
4050118504309
Qty.
1 items
Delivery status
This article will no longer be available in the future.
Last order date
/Date(1790719200000)/

Dimensions and weights

Diameter
3.6 mm
Net weight
688.16 g

Environmental Product Compliance

RoHS Compliance Status
Compliant with exemption
RoHS Exemption (if applicable/known)
6c
REACH SVHC
Lead 7439-92-1
SCIP
1c533b66-fcff-4da5-b89f-fd55fbf5cb55

Technical specifications for cable

accelerazione
5 m/s²
Alogeni
No
Bending cycles
5 Mio
Bending cycles at torsion
> 5 Mio.
Bending radius, min., stationary
5 x cable diameter
Colour coding
brown
blue
black
Configurable cable length
No
Core in accordance with UL AWM style
10493 (80 °C / 300 V)
Drain wire integrated
No
Hydrolysis and microbe resistant
Yes
Idoneità all'installazione con catene portacavi
Yes
Irradiation crosslinked
No
Isolamento
PP
Köpeny színe
black (similar to RAL 9005)
Length of torsion
1 m
Longueur du câble
35 m
Number of poles
3
Olajokkal szembeni ellenállás
Yes
Outer cladding in accordance with UL AWM style
20549 (80 °C / 300 V)
Outside diameter
3.6 mm + 0.15 mm
Raggio di curvatura min., mobile
10 x cable diameter
Resistance to spread of flame
in accordance with IEC 60332-2-2
In accordance with UL1581 UL / CUL FT2
Resistant to welding beads
No
Schermato
No
Sezione del conduttore
0.25 mm²
Sheath material
PUR
Speed
3.33 m/s
Temperature range, moving
-25...60 °C
Temperature range, stationary
-50...80 °C
Torsion resistance
180 °/m
Welding spark resistance
No

General technical data

Cicli di inserimento
≥ 100
Coding
A-coded
Connection thread
M8
Contact surface
Gold-plated
Corrente nominale
4 A
Grado di lordura
3
Grado di protezione
IP69
IP65
IP66
LED
No
Material låsring
Brass, nickel-plated
Matériau de base du boîtier
PUR
Névleges feszültség
60 V
Szigetelési ellenállás
108 Ω
Temperature range of housing
-25…+85 °C
Version
Socket, angled
zmostkowany
No

Electrical properties

Insulation resistance
108 Ω
Nominal voltage
60 V

General standards

N.º de certificado (cULus)
E307231

Plug, left

Plug left
M8, IP69, female contact, angled 90°, Plastic, unshielded

Plug, right

Plug right
free conductor end

Product images

Classifications

ETIM 8.0
EC001855
ETIM 9.0
EC001855
ETIM 10.0
EC001855
ECLASS 14.0
27-06-03-11
ECLASS 15.0
27-06-03-11
