SAIL-M8BWR-3-3.0V
SAIL-M8BWR-3-3.0V
Dimensioned drawing
Angled socket
SAIL-M8BWR-3-3.0V
Pole scheme
Socket
SAIL-M8BWR-3-3.0V
Wiring diagram

SAIL-M8BWR-3-3.0V

Tämä tuote ei ole pian enää saatavana.

Last order date: /Date(1790719200000)/

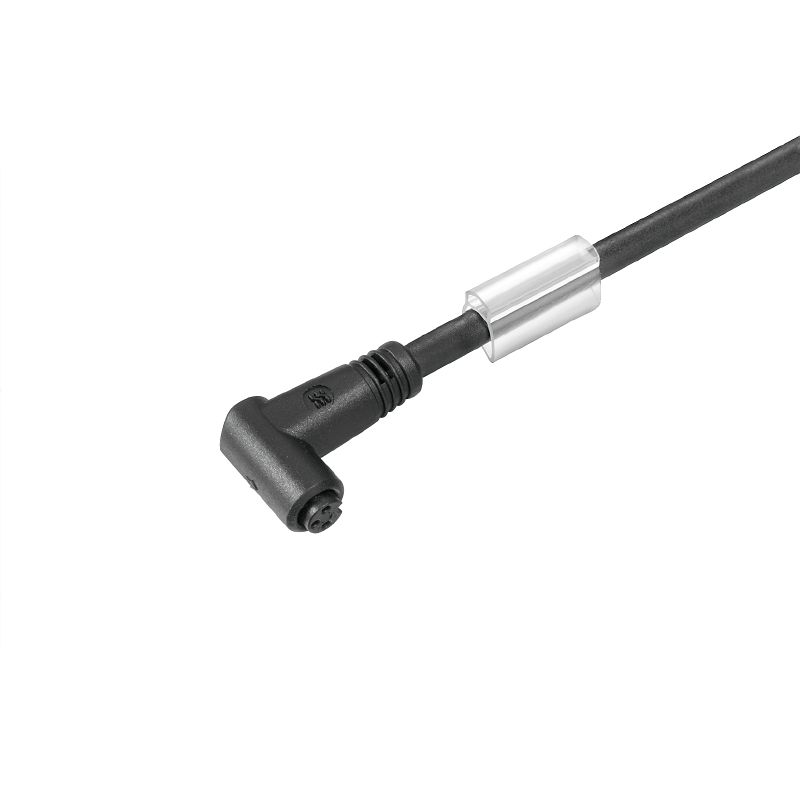

Sensor/actuator line, One end without connector, M12 / M8, Number of poles : 3, 3 m, Socket, angled, Shielded: No, LED: No, Sheath material: PVC, Halogen: Yes

Tuotteen tunnus 1948720300
Lataa tietosivu Tuotelataukset Tekninen tuki
Lisävarusteet 6 Samankaltaiset tuotteet 4
Approvals General ordering data Dimensions and weights Environmental Product Compliance Technical specifications for cable General technical data Electrical properties General standards Standards Plug, left Plug, right Classifications

Approvals

Approvals
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/0d1637a4-c7dd-4915-8bc8-4c9de8d8b393/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate no. (cULus)
E307231

General ordering data

Version
Sensor/actuator line, One end without connector, M12 / M8, Number of poles : 3, 3 m, Socket, angled, Shielded: No, LED: No, Sheath material: PVC, Halogen: Yes
Order No.
1948720300
Type
SAIL-M8BWR-3-3.0V
GTIN (EAN)
4032248626021
Qty.
1 items
Delivery status
This article will no longer be available in the future.
Last order date
/Date(1790719200000)/

Dimensions and weights

Net weight
89 g

Environmental Product Compliance

RoHS Compliance Status
Compliant with exemption
RoHS Exemption (if applicable/known)
6c
REACH SVHC
Lead 7439-92-1
SCIP
1c533b66-fcff-4da5-b89f-fd55fbf5cb55

Technical specifications for cable

Colour coding
brown
blue
black
Configurable cable length
No
Core cross-section
0,25 mm²
Halogener
Yes
Irradiation crosslinked
No
Isolering
PVC
Lunghezza del cavo
3 m
Number of poles
3
Outer cladding in accordance with UL AWM style
2464 (80 °C / 300 V)
Outside diameter
4.5 mm ± 0.2 mm
Resistant to welding beads
No
Sheath material
PVC
Temperature range, moving
-5...80 °C
Temperature range, stationary
-30...80 °C
Torsion resistance
0 °/m
Welding spark resistance
No
Экранированный
Non
シースカラー
black
케이블 캐리어에 적합
No

General technical data

Coding
A-coded
Connection thread
M12 / M8
Contact surface
Gold-plated
Housing main material
PUR
Insulation resistance
108 Ω
jumpered
No
LED
No
Nominal current
4 A
Nominal voltage
60 V
Plugging cycles
≥ 100
Pollution severity
3
Protection degree
IP65
when screwed in
Temperature range of housing
-25…+85 °C
Threaded ring material
PUR
Version
Socket, angled

Electrical properties

Insulation resistance
108 Ω
Nominal voltage
60 V

General standards

Csatlakozó, standard
IEC 61076-2-101
IEC 61076-2-104
Tanúsítvány száma (cULus)
E307231

Standards

Steckverbinder Norm
IEC 61076-2-101
IEC 61076-2-104

Plug, left

Plug left
M8, IP69, female contact, angled 90°, Plastic, unshielded

Plug, right

Plug right
free conductor end

Classifications

ETIM 8.0
EC001855
ETIM 9.0
EC001855
ETIM 10.0
EC001855
ECLASS 14.0
27-06-03-11
ECLASS 15.0
27-06-03-11
