SAIL-M8GM8W-4-3.0U

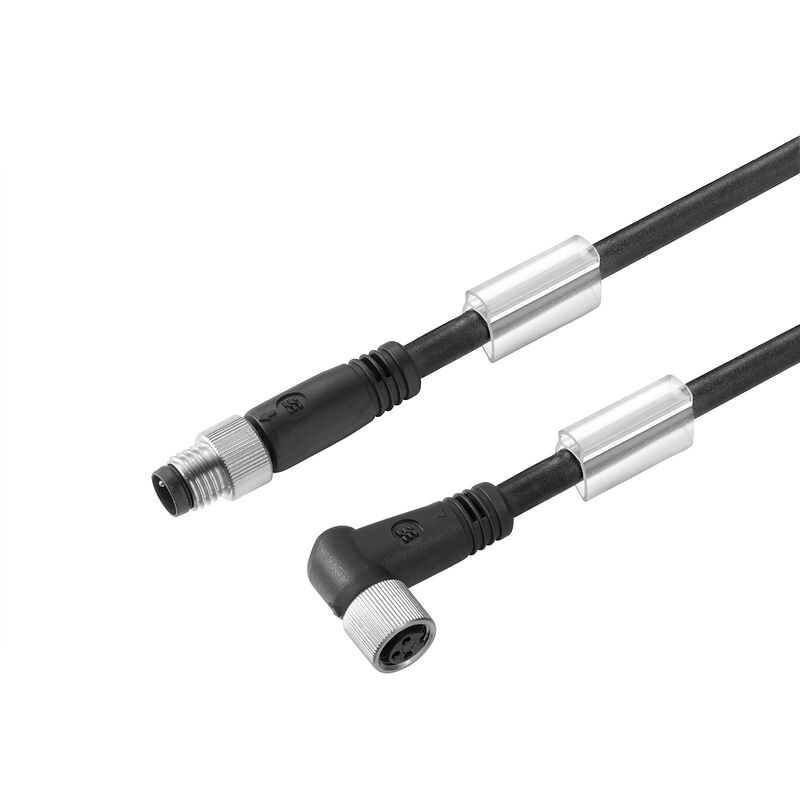

Sensor/actuator line, Connecting line, M8 / M8, Number of poles : 4, 3 m, pin, straight - socket, 90°, Shielded: No, LED: No, Sheath material: PUR, Halogen: No

Product ID 1857660300
Gegevensblad downloaden Engineering Support Product Downloads
Toebehoren 6 Verwante producten 7
Approvals General ordering data Dimensions and weights Environmental Product Compliance Technical specifications for cable General technical data Electrical properties General standards Standards Plug, left Plug, right Classifications

Approvals

Approvals
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319222/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319228/-S800/-T1z1mm-S80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate no. (cULus)
E307231

General ordering data

Version
Sensor/actuator line, Connecting line, M8 / M8, Number of poles : 4, 3 m, pin, straight - socket, 90°, Shielded: No, LED: No, Sheath material: PUR, Halogen: No
Order No.
1857660300
Type
SAIL-M8GM8W-4-3.0U
GTIN (EAN)
4032248403646
Qty.
1 items

Dimensions and weights

Net weight
73,92 g

Environmental Product Compliance

RoHS Compliance Status
Compliant with exemption
RoHS Exemption (if applicable/known)
6c
REACH SVHC
Lead 7439-92-1
SCIP
1c533b66-fcff-4da5-b89f-fd55fbf5cb55

Technical specifications for cable

Bending cycles
12 Mio
Beschleunigung
5 m/s²
Biegeradius min., bewegt
10 x cable diameter
Biegeradius, min., fest verlegt
5 x cable diameter
Cable length
3 m
Colour coding
brown
white
blue
black
Core cross-section
0,25 mm²
Flammwidrigkeit
In accordance with UL1581 UL / CUL FT2
in accordance with IEC 60332-2-2
Gaine selon UL AWM
20549 (80 °C / 300 V)
Halogen
No
Isolation
PP
Konfigurerbar kabellängd
No
LABS-free
Yes
Length of torsion
1 m
Nucleo secondo UL AWM Style
10493 (80 °C / 300 V)
Number of poles
4
Outside diameter
4.4 mm ± 0.15 mm
Resistance to oils
in accordance with IEC 60811:404
Résistant à l'hydrolyse et aux microbes
Yes
Sheath material
PUR
Sheathing colour
black
Speed
5 m/s
Stíněný
No
Suitable for cable carriers
Yes
Temperaturområde, rörligt
-25...80 °C
Torsion resistance
360 °/m
Welding spark resistance
No
Zakres temperatur, stały
-40...80 °C
Устойчивые к каплям сварочного металла
No
Циклы изгиба при скручивании
> 5 Mio.
조사 교차결합
No

General technical data

Coding
none
Connection thread
M8 / M8
Contact material
CuZn35PB2
Contact surface
Gold-plated
Housing main material
PUR
Insulation resistance
108 Ω
jumpered
No
LED
No
Nominal current
4 A
Nominal voltage
30 V
Plugging cycles
≥ 100
Pollution severity
3
Protection degree
IP65
IP66
IP67
IP68
IP69
when screwed in
Temperature range of housing
-25…+85 °C
Threaded ring material
Brass, nickel-plated
Tightening torque
M8: 0.5 - 0.6 Nm
Version
pin, straight - socket, 90°

Electrical properties

Insulation resistance
108 Ω
Nominal voltage
30 V

General standards

Connettori a norma
IEC 61076-2-104
N° Certificato (cULus)
E307231

Standards

Connettori a norma
IEC 61076-2-104

Plug, left

Plug left
connector, M8, Number of poles: 4, IP69, male contact, straight, unshielded

Plug, right

Plug right
connector, M8, Number of poles: 4, IP69, female contact, angled 90°, unshielded

Classifications

ETIM 8.0
EC001855
ETIM 9.0
EC001855
ETIM 10.0
EC001855
ECLASS 14.0
27-06-03-11
ECLASS 15.0
27-06-03-11
