SAISGZ-V-4D-6/8-M12
SAISGZ-V-4D-6/8-M12
Dimensioned drawing
SAISGZ-V-4D-6/8-M12
Pole scheme
Male connector

SAISGZ-V-4D-6/8-M12

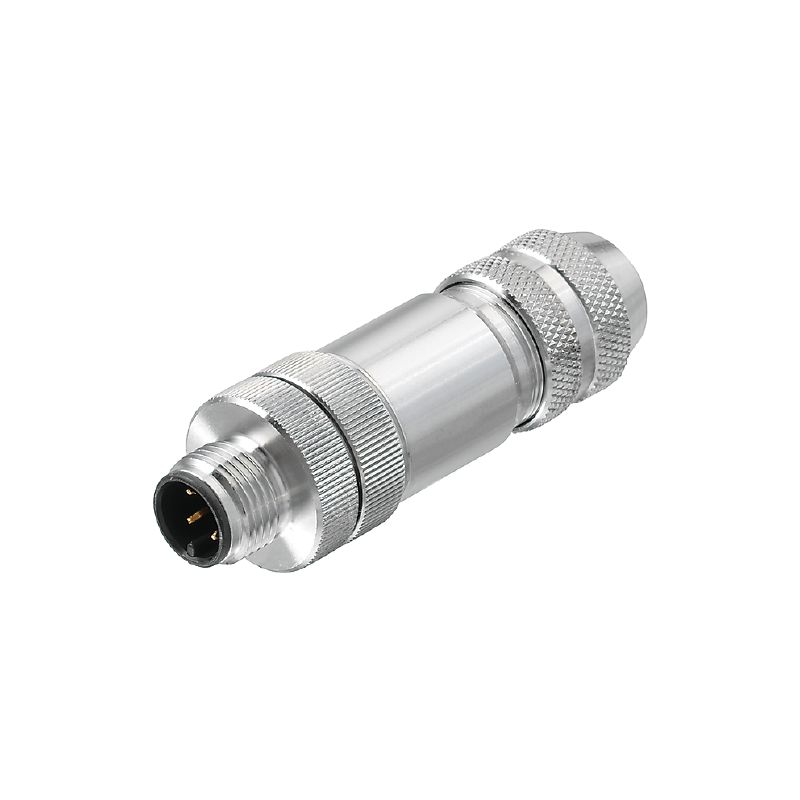

Field attachable connector, M12

Produkt ID 1920700001
Download datablad Nedladdningar av produkter Engineering-support
Anvendte produkter 5
Approvals General ordering data Dimensions and weights Environmental Product Compliance Technical data customisable plug-in connectors General Info Electrical properties Classifications

Approvals

Approvals
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/5855f480-81e6-48e1-aa53-1e87419df7ba/DAP_Master_ICON,w_80,q_80)
ROHS
Conform

General ordering data

Version
Field attachable connector, M12
Order No.
1920700001
Type
SAISGZ-V-4D-6/8-M12
GTIN (EAN)
4032248647941
Qty.
1 Styk

Dimensions and weights

Diameter
19,6 mm
Net weight
45 g

Environmental Product Compliance

RoHS Compliance Status
Compliant with exemption
RoHS Exemption (if applicable/known)
6c
REACH SVHC
Lead 7439-92-1
SCIP
0ea6d931-f9e9-40a6-89d9-8d67103189d3

Technical data customisable plug-in connectors

Cable diameter, max.
8 mm
Cable diameter, min.
6 mm
Coding
D-coded
Conductor cross-section, max.
0,5 mm²
Conductor cross-section, min.
0,25 mm²
Connection cross-section, max.
0,5 mm²
Connection cross-section, min.
0,25 mm²
Contact material
CuSn
Contact surface
Gold-plated
Gender of contact
Male
Housing main material
1.4404/316L
Insulation resistance
108 Ω
LED
No
Nominal current
4 A
Nominal voltage
125 V
Number of poles
4
Plugging cycles
≥ 100
Pollution severity
3
Protection degree
IP67
Shield connection
Yes
Temperature range of housing
-40 … +85 ° C
Threaded ring material
Stainless steel, rust-proof
Type of connection
Tension-clamp connection

General Info

Number of poles
4
Connection 1
M12
Connection 2
Tension-clamp
UL 94 flammability rating
V-0
Housing main material
1.4404/316L
Connection thread
M12
Materiál kontaktu
CuSn
Povrch kontaktu
Pozlacené
Wire connection cross section, finely stranded, min.
0,25 mm²
Sección de conexión del conductor, flexible, max.
0,5 mm²
Section de raccordement du conducteur, min.
0,25 mm²
와이어 단면, 솔리드, 최대
0,5 mm²
Protection degree
IP67
Cykle wpinania
≥ 100

Electrical properties

Insulation resistance
108 Ω
Nominal voltage
125 V

Classifications

ETIM 8.0
EC002635
ETIM 9.0
EC002635
ETIM 10.0
EC002635
ECLASS 14.0
27-44-01-16
ECLASS 15.0
27-44-01-16
