UR20-16DO-P
제품 이미지
UR20-16DO-P
Block diagram
UR20-16DO-P

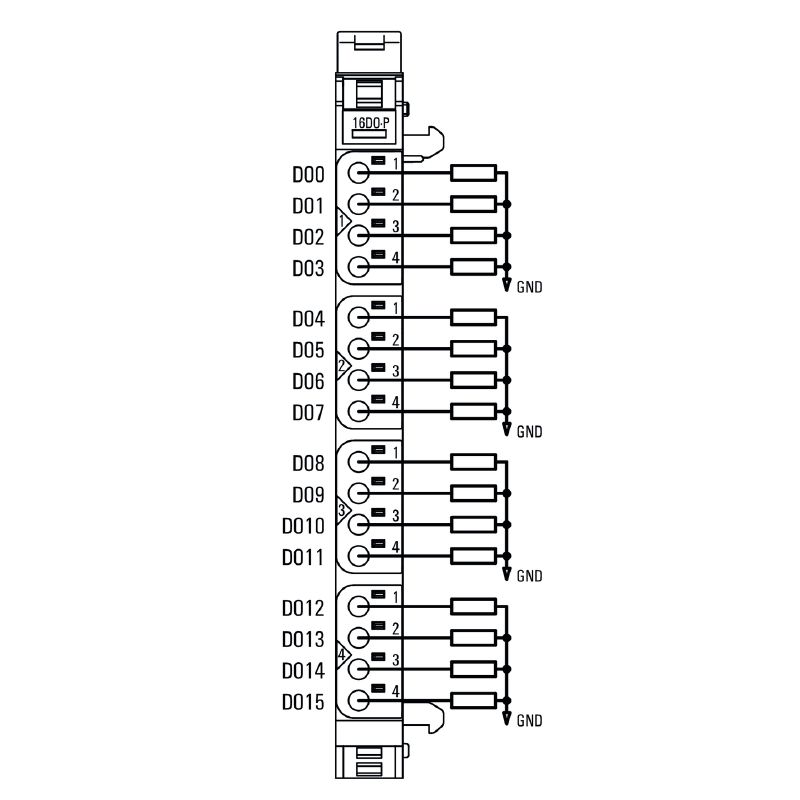

Connection diagram
UR20-16DO-P
약자 설명

UR20-16DO-P

원격 I/O 모듈, IP20, 디지털 신호, 출력, 16-채널

항목 번호 1315250000
컨피규레이터에서 열기
데이터 시트 다운로드 엔지니어링 지원 제품 다운로드
액세서리 12 예비 부품 3 개별 부품 3 관련 제품 15
승인 일반 주문 데이터 치수 및 중량 온도 환경 제품 규정 준수 digital outputs 결선 데이터 일반 데이터 전원 공급 시스템 데이터 분류

승인

Approvals
![](https://assets.dam.weidmueller.com/assets/api/63e27dd8-88d2-46a7-9840-58fe3637ac20/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/2a4a8742-86e3-45cc-8b68-a2da67801c40/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/cbf09862-97e9-475d-b71a-c6db1e3e9933/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/52b59257-358c-4bc4-9ea4-df407cebf157/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/77c071f4-46bd-4b7f-8f24-3c61d44584d2/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/d2e83968-d07b-4c8a-82b2-25cf0c69fee7/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/d1a278f5-5acb-4199-8c83-b599817086bc/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/106d65db-9035-4009-8a4b-55480269373e/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/5855f480-81e6-48e1-aa53-1e87419df7ba/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/5855f480-81e6-48e1-aa53-1e87419df7ba/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/8761d6a8-633c-4aff-8793-97a5d2b0ca50/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/dde5b188-d0b1-4486-8f22-54b343043814/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/343066b4-2123-4788-b278-3ff01ec50f19/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/0d1637a4-c7dd-4915-8bc8-4c9de8d8b393/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/4a92d911-d582-40e3-85fc-c9e9b159e140/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/2fb608f0-c73d-4515-a7a5-878046a505f4/DAP_Master_ICON,w_80,q_80)
ROHS
준수
UL File Number Search
[UL 웹사이트](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate no. (cULus)
E141197
Certificate no. (cULusEX)
E223527

일반 주문 데이터

Version
원격 I/O 모듈, IP20, 디지털 신호, 출력, 16-채널
Order No.
1315250000
Type
UR20-16DO-P
GTIN (EAN)
4050118118537
Qty.
1 items

치수 및 중량

Depth
76 mm
깊이 (인치)
2,992 inch
Height
120 mm
높이 (인치)
4,724 inch
Width
11,5 mm
폭 (인치)
0,453 inch
Length
120 mm
길이 (인치)
4,724 inch
Mounting dimension - height
128 mm
순중량
83 g

온도

Storage temperature
-40 °C ... +85 °C
Operating temperature
-20 °C...60 °C

환경 제품 규정 준수

RoHS Compliance Status
준수, 예외 존재
RoHS Exemption (if applicable/known)
7a, 7cI
REACH SVHC
Lead 7439-92-1
Diboron trioxide 1303-86-2
Lead monoxide 1317-36-8
SCIP
b5ed5bad-cbfe-4ad3-903c-fc3d1093a415
제품 탄소 발자국
  • 요람에서 게이트까지:
    8,684 kg CO2 eq.

digital outputs

Actuator connection
1 와이어
Carico ohmico (min. 47 Ω)
1 kHz
Feedback-free
예
Individual channel diagnosis
아니요
Inductive load (DC13)
0,2 Hz
Insulation
500 V (채널 대 채널)
Lamp load (12 W)
1 kHz
Leakage current
<0.5 mA
Max. response time, high
100 µs
Max. válaszidő, alacsony
250 µs
Module diagnosis
예
Number of digital outputs
16
Obciążenie indukcyjne
  • 주파수:
    0,2 Hz
  • 용도 카테고리:
    DC13
  • 주파수:
    1 kHz
  • 용도 카테고리:
    DC13
  • 버전:
    적합한 환류 다이오드 있음
Output current as per application
  • 최소:
    0 mA
  • 공칭:
    8 000 mA
  • 최대:
    8 000 mA
Output current per module, max.
8 000 mA
Output voltage, max.
24 V
Prąd wyjściowy na kanał, maks.
500 mA
Response time of the protective circuit (current limiting)
<100μs
Samtidighetsfaktor
  • 최소:
    0 %
  • 공칭:
    100 %
  • 최대:
    100 %
Short-circuit-proof
예(온도 차단)
Skyddskoppling
Constant current with thermal switch-off and automatic restart
Switch-off energy (inductive)
<150 mJ / 채널
Switching frequency, lamp load
1 kHz
Type
램프 부하
옴
유도

결선 데이터

Type of connection
PUSH IN
Wire connection cross section, finely stranded, max.
1,5 mm²
Wire connection cross section, finely stranded, min.
0,14 mm²
Wire cross-section, finely stranded, max. (AWG)
AWG 16
Wire cross-section, finely stranded, min. (AWG)
AWG 26
Wire cross-section, solid, max.
1,5 mm²
Wire cross-section, solid, max. (AWG)
AWG 16
Wire cross-section, solid, min.
0,14 mm²
Wire cross-section, solid, min. (AWG)
AWG 26

일반 데이터

Air humidity (operation)
10% ~ 95%, 비응축(DIN EN 61131-2 준수)
Air humidity (storage)
10% ~ 95%, 비응축(DIN EN 61131-2 준수)
Air humidity (transport)
10% ~ 95%, 비응축(DIN EN 61131-2 준수)
Air pressure (operation)
DIN EN 61131-2에 따라 795 hPa(높이 ≤ 2000 m) 이상
Air pressure (storage)
DIN EN 61131-2에 따라 1013 hPa(높이 0 m) - 700 hPa(높이 3000 m)
Air pressure (transport)
DIN EN 61131-2에 따라 1013 hPa(높이 0 m) - 700 hPa(높이 3000 m)
Mounting rail
TS 35
Pollution severity
2
Shock
15g/11ms, 반정현파, IEC 60068-2-27 규격
Surge voltage category
II
Test voltage
500 V
UL 94 flammability rating
V-0
Vibration resistance
IEC 60068-2-6에 따라 5 Hz ≤ f ≤ 8.4 Hz: 3.5 mm 진폭
IEC 60068-2-6에 따라 8.4 Hz ≤ f ≤ 150 Hz: 1 g 가속

전원 공급

Current consumption from IOUT (the respective power segment)
25 mA + load
Current consumption from Isys, typ.
8 mA
Supply voltage
24 V DC +20 %/ -15 %
시스템 버스 경유

시스템 데이터

Connection type
PUSH IN
Diagnostic data
1 Bit
Field bus protocol
PROFINET IRT
PROFINET RT
CC-Link IE TSN
IEC 61162-450
PROFIBUS DP-V1
EtherCAT
Modbus/TCP
EtherNet/IP
CANopen
DeviceNet
POWERLINK
CC-Link
Galvanic isolation
전류 경로 간의 500 V DC
Interface
U-remote 시스템 버스
Module type
디지털 출력 모듈
Possible connection
1 컨덕터
Process data
2 Byte
Transmission speed of system bus, max.
48 MBit/s

분류

ETIM 8.0
EC001599
ETIM 9.0
EC001599
ETIM 10.0
EC001599
ECLASS 14.0
27-24-26-04
ECLASS 15.0
27-24-26-04
