Surge protection for instrumentation and control, Surge protection for measurement and control, UP(L/N-PE) ≤ 100 V

Ürün No. 1064980000
Konfigüratörde aç
Veri sayfasını indir Mühendislik desteği Ürün İndirmleri
Aksesuarlar 3 aksesuarıdır 4 İlgili ürünler 5
Approvals General ordering data Dimensions and weights Temperatures Probability of failure Environmental Product Compliance Rated data UL CSA protection data Datos generales Insulation coordination acc. to EN 50178 IEC / EN névleges adatok Further details of approvals Connection data Electrical data General data Important note Classifications Tender specification sheets

Approvals

Homologaciones
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/2fe64228-e403-4415-b85f-44f3a8f8bb2c/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/c809b3ab-e765-499c-852e-d528779da9f7/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/f2570d3e-3e62-4056-9c95-fe925a1a2b86/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/a5387a11-3584-42f1-9c6a-815af76ec080/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Núm. de certificación (UL)
E311081

General ordering data

Versión
Surge protection for instrumentation and control, Surge protection for measurement and control, UP(L/N-PE) ≤ 100 V
Código
1064980000
Tipo
VSSC6 RS485
GTIN (EAN)
4032248830220
Cantidad
10 adet

Dimensions and weights

Profundidad
81 mm
Depth (inches)
3.189 inch
Altura
88.5 mm
Height (inches)
3.484 inch
Anchura
6.2 mm
Width (inches)
0.244 inch
Longitud
88.5 mm
Length (inches)
3.484 inch
Net weight
42 g

Temperatures

Temperatura de almacenamiento
-40 °C...80 °C
Temperatura de servicio
-40 °C...70 °C
Humedad
5...96 %

Probability of failure

SIL in compliance with IEC 61508
3
MTTF
1,903 a
SFF
94.58 %
λges
60
PFH en 1*10-9 1/h
3.25

Environmental Product Compliance

Estado de cumplimiento de la directiva RoHS
Compliant with exemption
Exención RoHS (si procede/conocida)
7a, 7cI
REACH SVHC
Lead 7439-92-1
SCIP
71e97bb7-979f-4330-94c0-20c629bb05e3

Rated data UL

Certificate No. (UL)
E311081
UL certificate
[UL Zertifikat](PDF/E311081VOL1SEC3.pdf)

CSA protection data

Input-current, max. II
500 mA
Internal capacity, max. CI
2 nF

Datos generales

Colour
fekete
Design
Terminal
Isolating function
No
Mounting rail
TS 35
Optical function display
No
Protection degree
IP20
Segment
Measurement - Monitoring - Setting
UL 94 flammability rating
V-0
Version
Surge protection for measurement and control

Insulation coordination acc. to EN 50178

Pollution severity
2
Surge voltage category
III

IEC / EN névleges adatok

Corriente de descarga Imáx. (8/20µs) conductor PE
10 kA
Corriente de descarga Imáx. (8/20µs) conductor-conductor
10 kA
Corriente de fuga In (8/20µs) conductor-conductor
2.5 kA
Corriente de fuga In (8/20µs) conductor-PE
2.5 kA
Discharge current, max. (8/20 µs)
20 kA
Insertion loss
113.7 MHz
Lightning test current Iimp (10/350 µs)
0.5 kA
Lightning test current, Iimp (10/350 µs) Wire-PE
0.5 kA
Max. continuous voltage, Uc (DC)
15 V
Number of poles
1
Overload - failure mode
Modus 2
Protection level UP (typ.)
≤ 100 V
Pulse-reset capacity
≤ 15 ms
Rated current IN
500 mA
Rated voltage (DC)
12 V
Requirements category acc. to IEC 61643-21
C2
C3
D1
Resistencia a la corriente de choque C2
2.5 kA 8/20 µs 5 kV 1.2/50 µs
Response time / fallback time
<1 ns
Standards
IEC 61643-21
Surge current-carrying capacity C3
10 A 10/1000 µs
Surge current-carrying capacity D1
0.5 kA 10/350 μs
Voltage type
DC
Volume resistance
1.8 Ω 10 %

Further details of approvals

GOST certificate
[GOST-Zertifikat](PDF/7950_n1-n4.pdf)

Connection data

Stripping length
10 mm
Type of connection
Screw connection
Tightening torque, min.
0.5 Nm
Tightening torque, max.
0.8 Nm
Clamping range, min.
0.5 mm²
Clamping range, max.
4 mm²
Wire cross-section, solid, min.
0.5 mm²
Wire cross-section, solid, max.
6 mm²
Conductor cross-section, flexible, AEH (DIN 46228-1), min.
0.5 mm²
Conductor cross-section, flexible, AEH (DIN 46228-1), max.
4 mm²
Connection cross-section, stranded, min.
0.5 mm²
Connection cross-section, stranded, max.
4 mm²

Electrical data

Voltage type
DC

General data

Number of poles
1
Protection degree
IP20
Colour
black

Important note

Información de producto
Mode 2: State where the voltage-limiting part of the SPD was short-circuited due to a very low impedance within the SPD. The line is inoperable, but the measuring equipment is still protected by means of a short-circuit.

Classifications

ETIM 8.0
EC000943
ETIM 9.0
EC000943
ETIM 10.0
EC000943
ECLASS 14.0
27-17-90-90
ECLASS 15.0
27-17-90-90

Tender specification sheets

Long specification

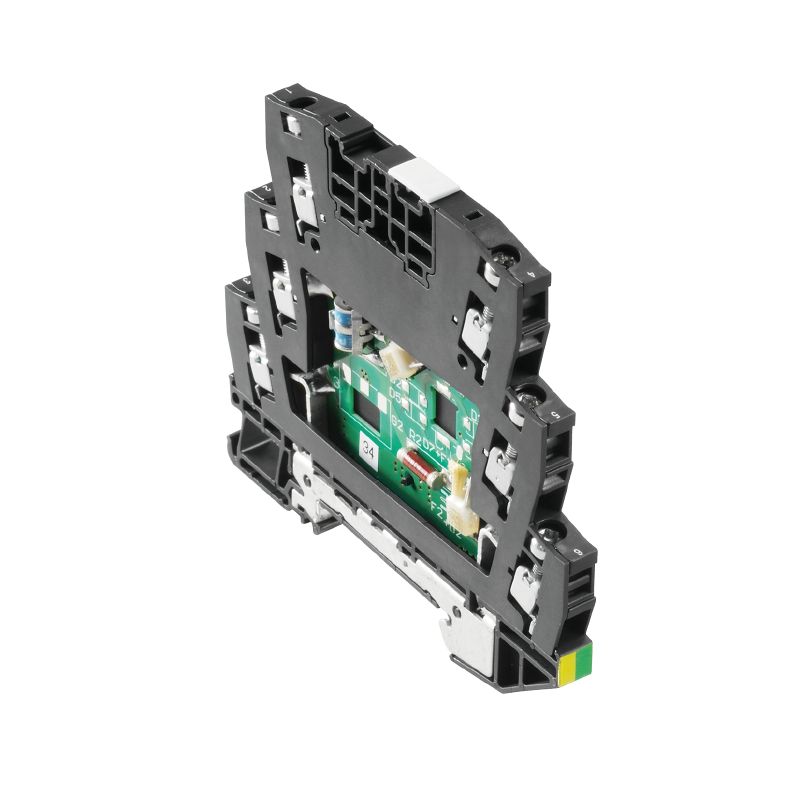

Surge protection in a one piece, 6.2 mm wide DIN rail module for a RS 422 / RS 485 signal circuit with 12 V DC, 2-wire technology. A RS 422 / RS 485 data signal with max. 0.6A can be protected here. When the terminal is fitted, a simultaneous electrically conducting contact is made between the mounting rail (earth) and the reference potential (ground) of the protection circuit in the terminal. Optical identification of the terminal based on the type of protected switching and the voltage level. The terminal can be labelled or marked.
Short specification
Surge protection in a one piece, 6.2 mm wide DIN rail module for a RS 422 / RS 485 signal circuit with 2-wire technology. Version: 12V DC
