WBB WDK2.5/BL5.08

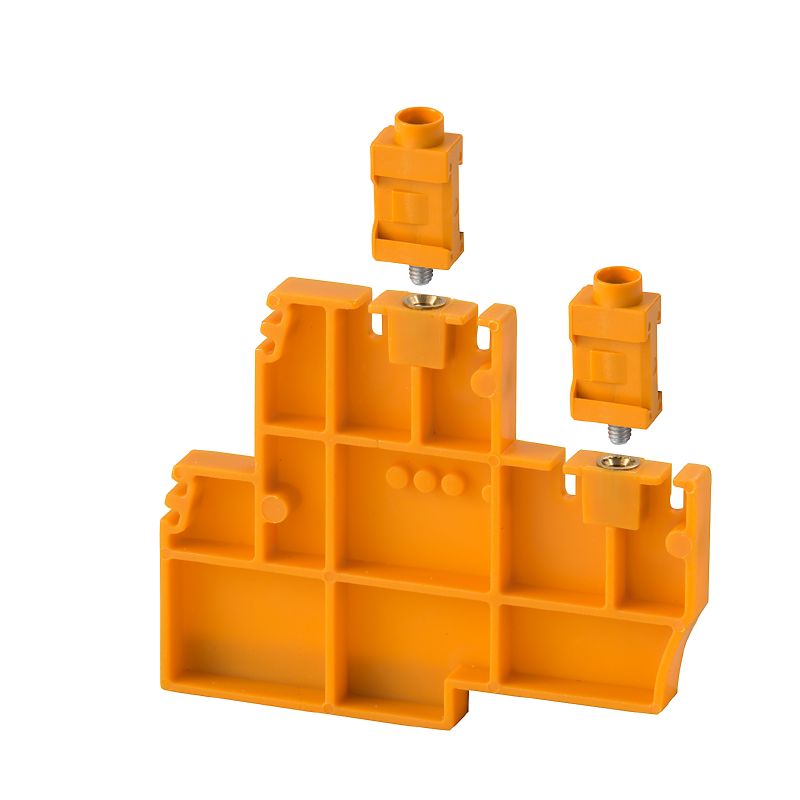

Product image

WBB WDK2.5/BL5.08

Partition plate (terminal), orange, Height: 58 mm, Width: 5 mm, V-2, PA 66

Product ID 1072660000
Gegevensblad downloaden Engineering Support Product Downloads
Is accessoire van 2 Verwante producten 76
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Material data System specifications Additional technical data General Classifications

Approvals

ROHS
Conform

General ordering data

Version
Partition plate (terminal), orange, Height: 58 mm, Width: 5 mm, V-2, PA 66
Order No.
1072660000
Type
WBB WDK2.5/BL5.08
GTIN (EAN)
4008190470555
Qty.
10 items

Dimensions and weights

Depth
45,2 mm
Depth (inches)
1,78 inch
Height
58 mm
Height (inches)
2,283 inch
Width
5 mm
Width (inches)
0,197 inch
Net weight
8,5 g

Temperatures

Skladovací teplota
-25 °C...55 °C
Ambient temperature
-5 °C…40 °C
Continuous operating temp., min.
-50 °C
Continuous operating temp., max.
100 °C

Environmental Product Compliance

Stav souladu se směrnicí RoHS
Compliant with exemption
RoHS Exemption (if applicable/known)
6c
REACH SVHC
Lead 7439-92-1
SCIP
936a8f21-8ce1-4838-a60e-9ad69268c052

Material data

Basic material
PA 66
Colour
orange
UL 94 flammability rating
V-2

System specifications

Version
End and intermediate plate

Additional technical data

Installation advice
Direct mounting
Snap-on
No

General

Návod k instalaci
Direct mounting

Classifications

ETIM 8.0
EC000886
ETIM 9.0
EC000886
ETIM 10.0
EC000886
ECLASS 14.0
27-25-03-01
ECLASS 15.0
27-25-03-01
