ZDUB 2.5-2/4AN/DM OR

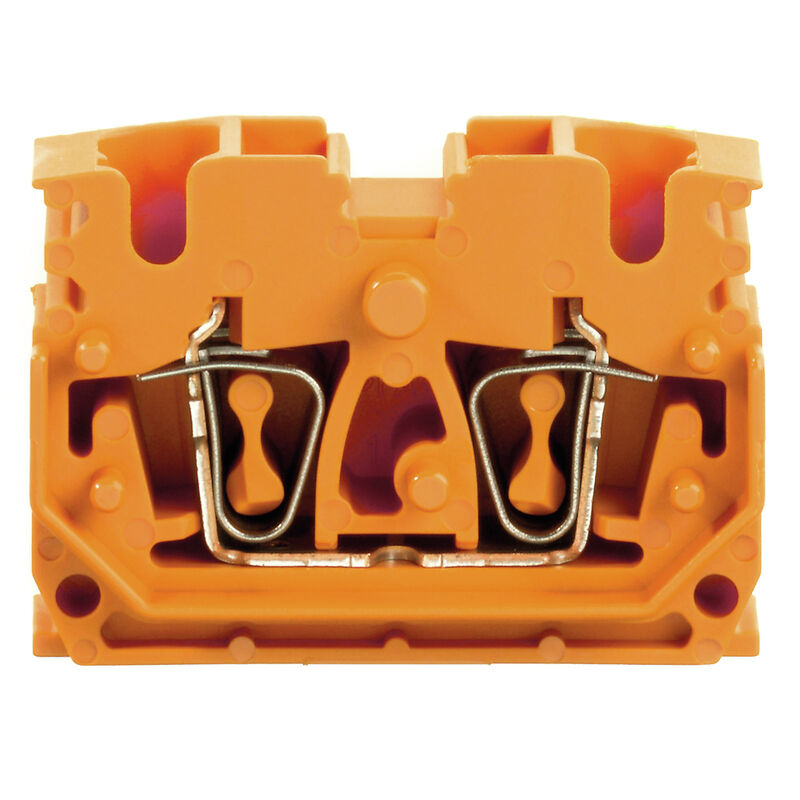

Product image
ZDUB 2.5-2/4AN/DM OR

ZDUB 2.5-2/4AN/DM OR

Z-series, Feed-through terminal, Rated cross-section: 2.5 mm², Tension-clamp connection, orange, Direct mounting

Product ID 1704560000
Gegevensblad downloaden Engineeringondersteuning Productdownloads
Toebehoren 12 Verwante producten 50
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Material data Rating data IECEx/ATEX System specifications Additional technical data Conductors for clamping (additional connection) Conductors for clamping (rated connection) CSA rating data Dimensions General Rating data UL rating data Classifications

Approvals

Approvals
![](https://assets.dam.weidmueller.com/assets/api/8761d6a8-633c-4aff-8793-97a5d2b0ca50/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/7849a070-6e16-4866-9b5a-c610b7f622e5/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/33feeb02-46e9-4a14-9d79-8ec5ee409fe3/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/680ba583-8621-4d57-b79a-2859678ecdf9/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/2fb608f0-c73d-4515-a7a5-878046a505f4/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/52b59257-358c-4bc4-9ea4-df407cebf157/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/5855f480-81e6-48e1-aa53-1e87419df7ba/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/5855f480-81e6-48e1-aa53-1e87419df7ba/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate No. (cURus)
E60693
Certifikat nr (cURusEX)
E184763

General ordering data

Version
Z-series, Feed-through terminal, Rated cross-section: 2.5 mm², Tension-clamp connection, orange, Direct mounting
Order No.
1704560000
Type
ZDUB 2.5-2/4AN/DM OR
GTIN (EAN)
4008190948306
Qty.
100 items

Dimensions and weights

Depth
24 mm
Depth (inches)
0,945 inch
Height
33,5 mm
Height (inches)
1,319 inch
Width
10,2 mm
Width (inches)
0,402 inch
Nettovikt
7,62 g

Temperatures

Storage temperature
-25 °C...55 °C
Ambient temperature
-5 °C…40 °C
Continuous operating temp., min.
-50 °C
Continuous operating temp., max.
120 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

Material data

Grundläggande material
Wemid
Färgkod
orange
Brännbarhetsklass enligt UL 94
V-0

Rating data IECEx/ATEX

Certificate No. (ATEX)
DEMKO16ATEX1808U
Certificate No. (IECEX)
IECEXULD16.0036U
Max. voltage (ATEX)
550 V
Current (ATEX)
21 A
Wire cross section max. (ATEX)
2.5 mm²
Max. voltage (IECEX)
550 V
Current (IECEX)
21 A
Wire cross section max. (IECEX)
2.5 mm²
Marking EN 60079-7
Ex eb II C Gb
Ex 2014/34/EU label
II 2 G D

System specifications

Utförande
Tension-clamp connection
can only be bridged at the clamping point
One end without connector
Ändplatta krävs
Yes
Number of potentials
1
Number of levels
1
Number of clamping points per level
4
Antal potentialer per våning
1
Nivåer internt överkopplade
Yes
PE-anslutning
No
Montageskena obestyckad
TS 35
N-Funktion
No
PE-Funktion
No
PEN-Funktion
No

Additional technical data

explosionstestat utförande
Yes
Monteringsanvisning
Direct mounting
Monteringstyp
Direct mounting
Öppna sidor
right

Conductors for clamping (additional connection)

Connection type, additional connection
Tension-clamp connection

Conductors for clamping (rated connection)

Blade size
0.6 x 3.5 mm
Connection direction
top
Gauge to IEC 60947-1
A2
Keresztmetszet csatlakoztatott vezetékhez, finomsodratú, érvéghüvelyekkel és műanyag gallérokkal DIN 46228/4, névleges csatlakozás, min.
0,13 mm²
Number of connections
4
Section de raccordement du conducteur, AWG, min.
AWG 26
Sezione di collegamento cavo, flessibile con terminali DIN 46228/1, max.
1,5 mm²
Sezione di collegamento cavo, flessibile con terminali DIN 46228/1, min.
0,13 mm²
Sezione di collegamento cavo, flessibile, max.
2,5 mm²
Stripping length
10 mm
Type of connection
Tension-clamp connection
Upínací rozsah, max.
4 mm²
Upínací rozsah, min.
0,13 mm²
Wire connection cross section AWG, max.
AWG 12
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.
1,5 mm²
결선 단면적, 가는 꼬임, 최소
0,13 mm²
결선 단면적, 꼬임, 최대
4 mm²
결선 단면적, 꼬임, 최소
0,13 mm²
와이어 결선 단면, 가는 꼬임, 최소
0,13 mm²
와이어 결선 단면적, 경질 코어 최대
4 mm²
와이어 결선 단면적, 경질 코어, 최소
0,13 mm²

CSA rating data

Certifikat nr. (CSA)
12400-379
Ledararea max. (CSA)
12 AWG
Ledararea min. (CSA)
26 AWG
Spänning grupp C (CSA)
600 V
Ström Gr C (CSA)
25 A

Dimensions

TS 15 offset
17 mm

General

Installation advice
Direct mounting
Mounting rail
TS 35
Standards
IEC 60947-7-1
Wire connection cross section AWG, max.
AWG 12
Wire connection cross section AWG, min.
AWG 26

Rating data

Märkarea
2,5 mm²
Märkspänning
800 V
Märkspänning DC
800 V
Märkström
24 A
Ström med max. ledare
30 A
Normer
IEC 60947-7-1
Genomgångsmotstånd enligt IEC 60947-7-x
1,33 mΩ
Märkstötspänning
8 kV
Förlusteffekt enligt IEC 60947-7-x
0,77 W
Pollution severity
3

UL rating data

Certifikat nr (cURus)
E60693
Ledarstorlek Factory wiring max (cURus)
12 AWG
Ledarstorlek Factory wiring min (cURus)
26 AWG
Ledarstorlek Field wiring max (cURus)
12 AWG
Ledarstorlek Field wiring min (cURus)
26 AWG
Spänning grupp C (cURus)
600 V
Ström grupp C (cURus)
20 A

Classifications

ETIM 8.0
EC000897
ETIM 9.0
EC000897
ETIM 10.0
EC000897
ECLASS 14.0
27-25-01-01
ECLASS 15.0
27-25-01-01
