Egenskaber
| Version | Distribution terminal with fuse, PUSH IN, 4 mm², 250 V, 6.3 A, dark beige |
| Order No. | 2460120000 |

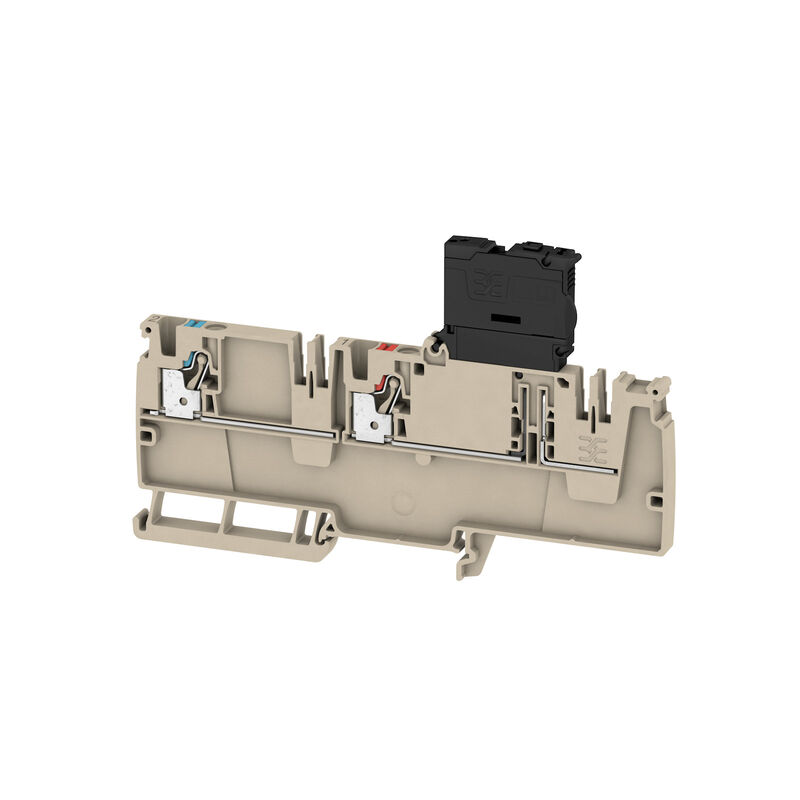

| Type | AAP22 4 LI-FS 100-250V |
| GTIN (EAN) | 4050118475548 |
| Qty. | 50 Styk |
| Depth | 82 mm |
| Depth (inches) | 3,228 inch |
| Depth including DIN rail | 82,5 mm |
| Height | 129 mm |
| Height (inches) | 5,079 inch |
| Width | 6,1 mm |
| Width (inches) | 0,24 inch |
| Net weight | 25,7 g |
| Storage temperature | -25 °C...55 °C |
| Continuous operating temp., min. | -60 °C |
| Continuous operating temp., max. | 130 °C |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Material | Wemid |
| Colour | dark beige |
| Colour of operational elements |
red
blue |
| UL 94 flammability rating | V-0 |
| Certificate No. (ATEX) | TUEV17ATEX8064U |
| Certificate No. (IECEX) | IECEXTUR17.0030U |
| Current (ATEX) | 6.3 A |
| Wire cross section max. (ATEX) | 4 mm² |
| Current (IECEX) | 6.3 A |
| Wire cross section max. (IECEX) | 4 mm² |
| Marking EN 60079-7 | Ex ec II C Gc |
| Ex 2014/34/EU label | II 2 G D |
| Version | with LED |
| End cover plate required | Yes |
| Number of potentials | 2 |
| Number of levels | 1 |
| Rail | TS 35 |
| Installation advice | Rail |
| Open sides | right |
| Snap-on | No |
| Type of fixing | Snap-on |
| Type of mounting | TS 35 |
| With snap-in pegs | No |
| Connection type, additional connection | PUSH IN |
| Blade size | 0.6 x 3.5 mm |
| Clamping range, max. | 4 mm² |
| Clamping range, min. | 0,14 mm² |
| Connection cross-section, stranded, max. | 4 mm² |
| Connection cross-section, stranded, min. | 0,5 mm² |
| Connection direction | top |
| Gauge to IEC 60947-1 | A4 |
| Number of connections | 2 |
| Stripping length | 12 mm |
| Tube length for twin wire-end ferrule |
|
| Tube length for wire-end ferrule with plastic collar DIN 46228/4 |
|
| Tube length for wire-end ferrule without plastic collar DIN 46228/1 |
|
| Twin wire-end ferrules, max. | 1,5 mm² |
| Twin wire-end ferrules, min. | 0,5 mm² |
| Type of connection | PUSH IN |
| Type of connection 2 | PUSH IN |
| Wire connection cross section AWG, max. | AWG 12 |
| Wire connection cross section AWG, min. | AWG 26 |
| Wire connection cross section, finely stranded, max. | 4 mm² |
| Wire connection cross section, finely stranded, min. | 0,5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max. | 4 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min. | 0,5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max. | 4 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min. | 0,5 mm² |
| Wire connection cross-section, solid core, max. | 4 mm² |
| Wire connection cross-section, solid core, min. | 0,5 mm² |
| Certificate No. (CSA) | 200039-70089609 |
| Current size B (CSA) | 10 A |
| Current size D (CSA) | 10 A |
| Voltage size B (CSA) | 300 V |
| Voltage size D (CSA) | 300 V |
| Wire cross section max. (CSA) | 10 AWG |
| Wire cross section min. (CSA) | 26 AWG |
| Installation advice | Rail |
| Rail | TS 35 |
| Standards |
In accordance with IEC 60947-7-1
In accordance with IEC 60947-7-3 |
| Wire connection cross section AWG, max. | AWG 12 |
| Wire connection cross section AWG, min. | AWG 26 |
| Rated cross-section | 4 mm² |
| Rated voltage | 250 V |
| Rated voltage to adjoining terminal | 500 V |
| Rated DC voltage | 250 V |
| Rated current | 6,3 A |
| Current at maximum wires | 6,3 A |
| Standards |
In accordance with IEC 60947-7-1
In accordance with IEC 60947-7-3 |
| Volume resistance according to IEC 60947-7-x | 1 mΩ |
| Rated impulse withstand voltage | 4 kV |
| Power loss in accordance with IEC 60947-7-x | 1,02 W |
| Pollution severity | 2 |
| Surge voltage category | III |
| Certificate No. (cURus) | E60693 |
| Conductor size Factory wiring max. (cURus) | 10 AWG |
| Conductor size Factory wiring min. (cURus) | 26 AWG |
| Conductor size Field wiring max. (cURus) | 10 AWG |
| Conductor size Field wiring min. (cURus) | 26 AWG |
| Current size B (cURus) | 10 A |
| Current size D (cURus) | 10 A |
| Voltage size B (cURus) | 300 V |
| Voltage size D (cURus) | 300 V |
| Product information | The voltage depends on the selected fuse element or the selected indicator light |
| Approval/Certificate/Document of Conformity |
[IECEX_TUR_17.0030U.pdf](https://mdcop.weidmueller.com/mediadelivery/asset/900_58132)
[ATEX Certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_58169) [DE PT0205 20171010 058 ISSUE01.pdf](https://mdcop.weidmueller.com/mediadelivery/asset/900_68338) [Attestation of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_85530) [DNVGL certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_152120) [CCC Ex Certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_178464) [DNV Certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_320351) [UKCA declaration of conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_284542) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_39689) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.2460120000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=2460120000) |
| WSCAD Universe | [WSCAD data](https://wscaduniverse.com/part-detail?manufacturerId=88&type=0&partNumber=2460120000&norm=0) |
| Tender specification |
[Klippon® Connect 2460120000 DE](https://mdcop.weidmueller.com/mediadelivery/asset/900_76072)
[Klippon® Connect 2460120000 EN](https://mdcop.weidmueller.com/mediadelivery/asset/900_76075) |
| User Documentation |
[NTI AAP22 4 LO-LO](https://mdcop.weidmueller.com/mediadelivery/asset/900_85535)
[NTI AAP22 LI-FS](https://mdcop.weidmueller.com/mediadelivery/asset/900_85536) [StorageConditionsTerminalBlocks](https://mdcop.weidmueller.com/mediadelivery/asset/900_87149) [AAP Terminal Blocks for control voltage distribution](https://mdcop.weidmueller.com/mediadelivery/asset/900_102992) [User Manual AFS](https://mdcop.weidmueller.com/mediadelivery/asset/900_229204) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000899 |
| ETIM 7.0 | EC000899 |
| ETIM 8.0 | EC000899 |
| ETIM 9.0 | EC000899 |
| ECLASS 9.0 | 27-14-11-16 |
| ECLASS 9.1 | 27-14-11-16 |
| ECLASS 10.0 | 27-14-11-16 |
| ECLASS 11.0 | 27-14-11-16 |
| ECLASS 12.0 | 27-14-11-16 |
| ECLASS 13.0 | 27-25-01-13 |
| ECLASS 14.0 | 27-25-01-13 |
| Approvals |         |
| ROHS | Conform |
| UL File Number Search | [UL Website](LINK/UL_search.html) |
| Certificate No. (cURus) | E60693 |
