Eigenschappen
| Version | Photovoltaics |
| Order No. | 3077660000 |

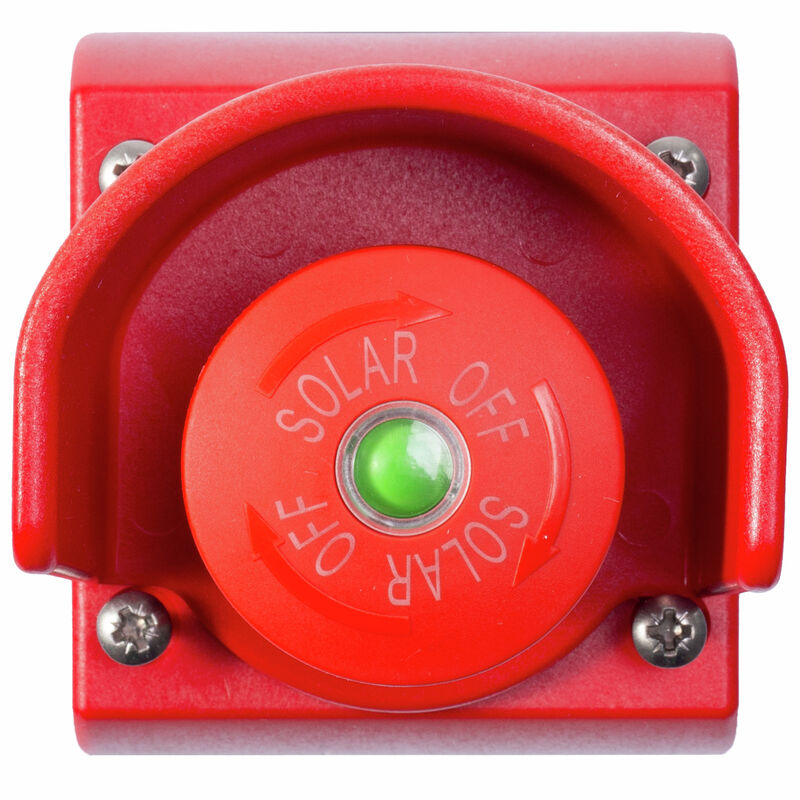

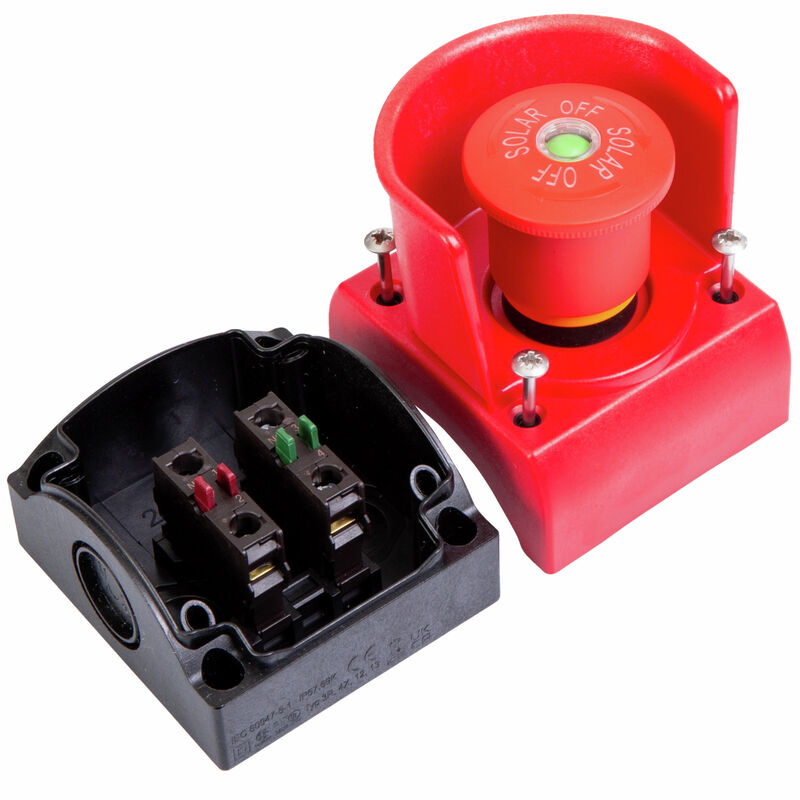

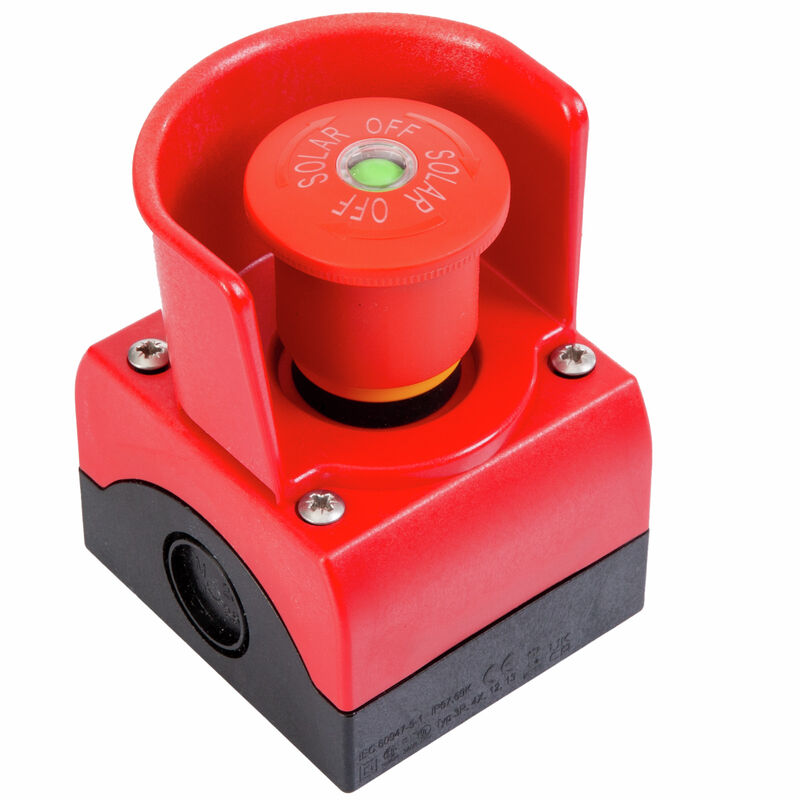

| Type | AC SB E 5A 1POL PO 06KV |
| GTIN (EAN) | 4099987081887 |
| Qty. | 1 items |
| Depth | 117 mm |
| Depth (inches) | 4,606 inch |
| Height | 80 mm |
| Height (inches) | 3,15 inch |
| Width | 72 mm |
| Width (inches) | 2,835 inch |
| Net weight | 233 g |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Degree of protection (NEMA) | 1 |
| Diameter of button element | 45 mm |
| Max. continuous voltage, Uc (AC) | 500 V |
| Max. continuous voltage, Uc (DC) | 212 V |
| Number of contacts as NC contact | 1 |
| Number of contacts as NO contact | 1 |
| Status indicator | 2-stage |
| Status indicator available | Yes |
| Type of mounting | 4 screws |
| Unlocking method | Turn-release |
| White paper |
[Fact Sheet DE PV Feuerwehrschalter](https://mdcop.weidmueller.com/mediadelivery/asset/900_310692)
[Fact Sheet EN PV Fireman switch](https://mdcop.weidmueller.com/mediadelivery/asset/900_310693) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 7.0 | EC002034 |
| ETIM 8.0 | EC002034 |
| ETIM 9.0 | EC002034 |
| ECLASS 11.0 | 27-37-12-44 |
| ECLASS 12.0 | 27-37-12-44 |
| ECLASS 13.0 | 27-37-12-44 |
| ECLASS 14.0 | 27-37-12-44 |
| Approvals |  |
| ROHS | Conform |
