AP ADK1

AP ADK1

Bu ürün yakında mevcut olmayacak.

Available until: 30.06.2026

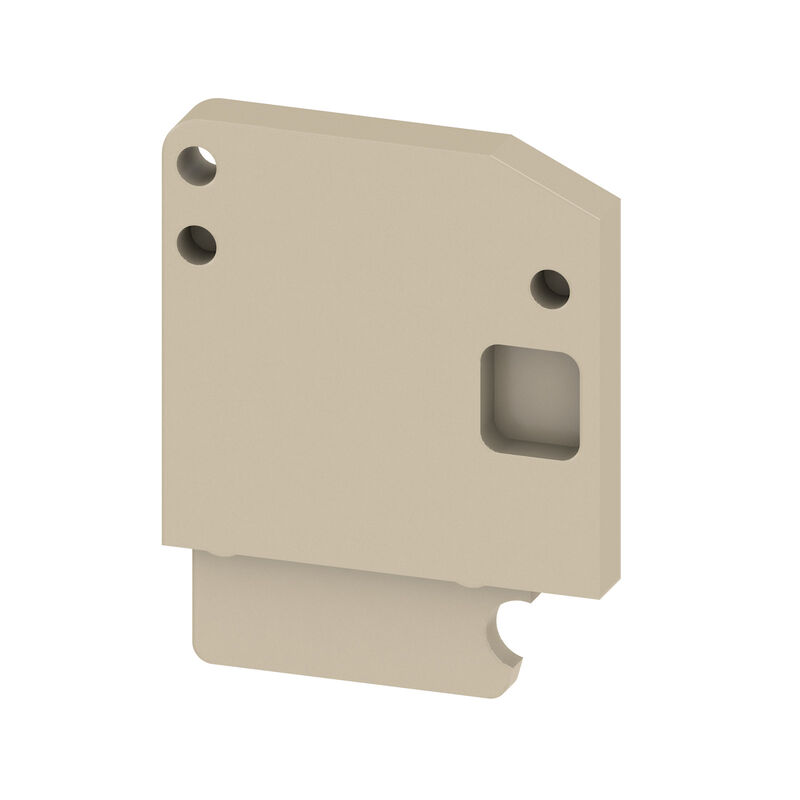

SAK Series, End plate, 3 mm, beige, Direct mounting

Ürün No. 0476260000
Veri sayfasını indir Engineering Support
İlgili ürünler 426
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Material data System specifications Additional technical data General Classifications

Approvals

ROHS
Conform

General ordering data

Verze
SAK Series, End plate, 3 mm, beige, Direct mounting
Číslo objednávky
0476260000
Type
AP ADK1
GTIN (EAN)
4008190158194
Qty.
50 adet
Delivery status
This article will no longer be available in the future.
Available until
30.06.2026

Dimensions and weights

Hloubka
28,1 mm
Depth (inches)
1,106 inch
Height
22 mm
Height (inches)
0,866 inch
Width
3 mm
Width (inches)
0,118 inch
Net weight
1,014 g

Temperatures

Storage temperature
-25 °C...55 °C
Ambient temperature
-5 °C…40 °C
Continuous operating temp., min.
-50 °C
Continuous operating temp., max.
100 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%
Product Carbon Footprint
  • Cradle to gate:
    0.014 kg CO2eq.

Material data

Grundläggande material
PA 66
Colour
beige
Classe d'infiammabilità UL 94
V-2

System specifications

Változat
End plate

Additional technical data

Installation advice
Direct mounting
Snap-on
Yes

General

Einbauhinweis
Direct mounting

Classifications

ETIM 8.0
EC000886
ETIM 9.0
EC000886
ETIM 10.0
EC000886
ECLASS 14.0
27-25-03-01
ECLASS 15.0
27-25-03-01
