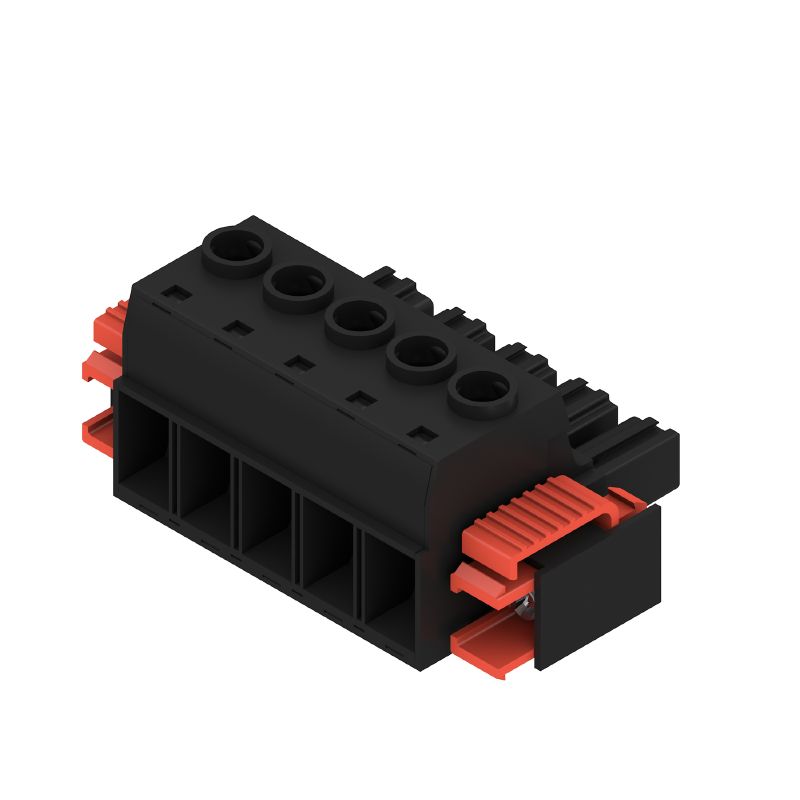

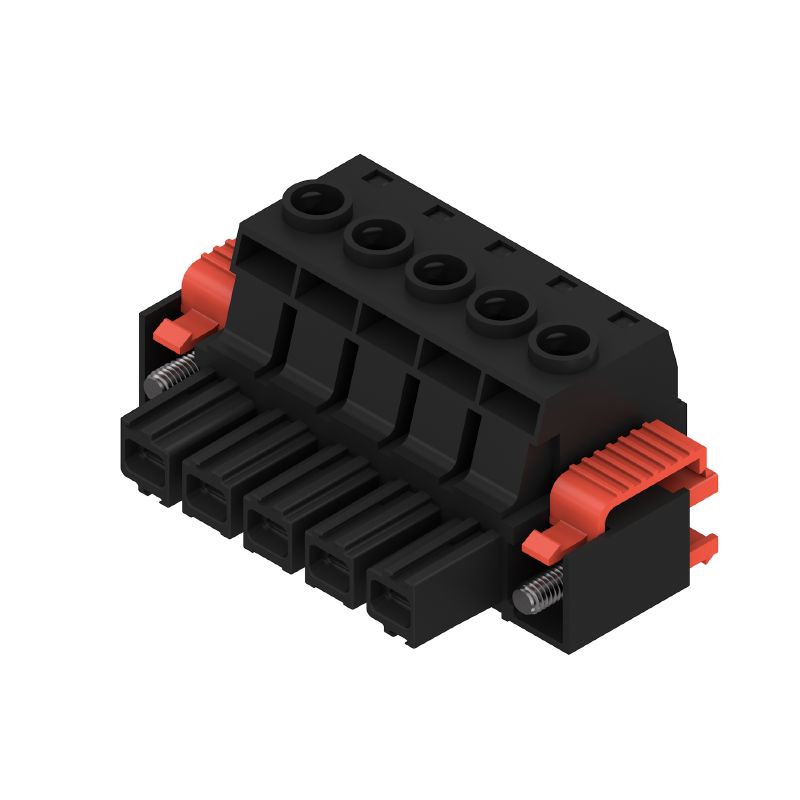

BUZ 10.16HP/05/180SF AG BK BX — Product image

Gegevensblad downloaden Verwante producten

BUZ 10.16HP/05/180SF AG BK BX

PCB plug-in connector, female plug, 10.16 mm, Number of poles: 5, 180°, Clamping yoke connection, Clamping range, max. : 16 mm², Box

Product ID 1924740000

Eigenschappen

General ordering data

Version	PCB plug-in connector, female plug, 10.16 mm, Number of poles: 5, 180°, Clamping yoke connection, Clamping range, max. : 16 mm², Box
Order No.	1924740000
Type	BUZ 10.16HP/05/180SF AG BK BX
GTIN (EAN)	4032248564897
Qty.	16 items
Product data	IEC: 1000 V / 78.3 A / 0.2 - 16 mm² UL: 600 V / 60 A / AWG 22 - AWG 4
Packaging	Box

Dimensions and weights

Net weight

66,875 g

Environmental Product Compliance

RoHS Compliance Status	Compliant without exemption
REACH SVHC	No SVHC above 0.1 wt%

System Parameters

Product family	OMNIMATE Power - series BU/SU 10.16HP
Type of connection	Field connection
Wire connection method	Clamping yoke connection
Pitch in mm (P)	10,16 mm
Pitch in inches (P)	0,4 "
Conductor outlet direction	180°
Number of poles	5
L1 in mm	40,64 mm
L1 in inches	1,6 "
Number of rows	1
Pin series quantity	1
Rated cross-section	16 mm²
Touch-safe protection acc. to DIN VDE 57 106	Safe from finger touch
Touch-safe protection acc. to DIN VDE 0470	IP 20
Volume resistance	4.50 mΩ
Can be coded	Yes
Stripping length	12 mm
Tightening torque for screw flange, min.	0,3 Nm
Tightening torque for screw flange, max.	0,4 Nm
Tightening torque, min.	1,2 Nm
Tightening torque, max.	2 Nm
Clamping screw	M 4
Screwdriver blade	1.0 x 5.5
Screwdriver blade standard	DIN 5264 ISO 8764/2-PZ
Plugging cycles	25
Plugging force/pole, max.	15,5 N
Pulling force/pole, max.	14,5 N

Material data

Insulating material	PA GF
Colour	black
Colour chart (similar)	RAL 9011
Insulating material group	I
Comparative Tracking Index (CTI)	≥ 600
UL 94 flammability rating	V-0
Contact material	Cu-alloy
Contact surface	silver-plated
Layer structure of plug contact	≥ 3 µm Ag
Storage temperature, min.	-40 °C
Storage temperature, max.	70 °C
Operating temperature, min.	-50 °C
Operating temperature, max.	130 °C
Temperature range, installation, min.	-25 °C
Temperature range, installation, max.	130 °C

Conductors suitable for connection

Clamping range, min.	0,2 mm²
Clamping range, max.	16 mm²
Wire connection cross section AWG, min.	AWG 22
Wire connection cross section AWG, max.	AWG 4
Solid, min. H05(07) V-U	0,2 mm²
Solid, max. H05(07) V-U	16 mm²
Stranded, min. H07V-R	6 mm²
Stranded, max. H07V-R	16 mm²
Flexible, min. H05(07) V-K	0,5 mm²
Flexible, max. H05(07) V-K	16 mm²
w. plastic collar ferrule, DIN 46228 pt 4, min.	0,25 mm²
w. plastic collar ferrule, DIN 46228 pt 4, max.	16 mm²
w. wire end ferrule, DIN 46228 pt 1, min.	0,25 mm²
w. wire end ferrule, DIN 46228 pt 1, max.	16 mm²
Plug gauge in accordance with EN 60999 a x b; ø	5.3mm (B6)
Clampable conductor	Cross-section for conductor connection: Type: fine-wired nominal: 0,5 mm² wire end ferrule: Stripping length: nominal: 14 mm Recommended wire-end ferrule: 1076980000 Cross-section for conductor connection: Type: fine-wired nominal: 1 mm² wire end ferrule: Stripping length: nominal: 15 mm Recommended wire-end ferrule: 9025930000 Cross-section for conductor connection: Type: fine-wired nominal: 1,5 mm² wire end ferrule: Stripping length: nominal: 15 mm Recommended wire-end ferrule: 9019140000 Stripping length: nominal: 12 mm Recommended wire-end ferrule: 9004060000 Cross-section for conductor connection: Type: fine-wired nominal: 0,75 mm² wire end ferrule: Stripping length: nominal: 14 mm Recommended wire-end ferrule: 9025910000 Cross-section for conductor connection: Type: fine-wired nominal: 2,5 mm² wire end ferrule: Stripping length: nominal: 14 mm Recommended wire-end ferrule: 9019170000 Stripping length: nominal: 12 mm Recommended wire-end ferrule: 0186100000 Cross-section for conductor connection: Type: fine-wired nominal: 4 mm² wire end ferrule: Stripping length: nominal: 12 mm Recommended wire-end ferrule: 0244100000 Stripping length: nominal: 14 mm Recommended wire-end ferrule: 9019200000 Cross-section for conductor connection: Type: fine-wired nominal: 6 mm² wire end ferrule: Stripping length: nominal: 14 mm Recommended wire-end ferrule: 0533500000 Stripping length: nominal: 12 mm Recommended wire-end ferrule: 0191900000 Cross-section for conductor connection: Type: fine-wired nominal: 10 mm² wire end ferrule: Stripping length: nominal: 12 mm Recommended wire-end ferrule: 0282900000 Stripping length: nominal: 15 mm Recommended wire-end ferrule: 0534200000 Cross-section for conductor connection: Type: fine-wired nominal: 16 mm² wire end ferrule: Stripping length: nominal: 12 mm Recommended wire-end ferrule: 0492500000 Stripping length: nominal: 15 mm Recommended wire-end ferrule: 0565900000
Reference text	Length of ferrules is to be chosen depending on the product and the rated voltage.

Rated data acc. to IEC

tested acc. to standard	IEC 60664-1 IEC 61984
Rated current, min. number of poles (Tu=20°C)	78,3 A
Rated current, max. number of poles (Tu=20°C)	67,9 A
Rated current, min. number of poles (Tu=40°C)	70,6 A
Rated current, max. number of poles (Tu=40°C)	61,3 A
Rated voltage for surge voltage class / pollution degree II/2	1.000 V
Rated voltage for surge voltage class / pollution degree III/2	1.000 V
Rated voltage for surge voltage class / pollution degree III/3	1.000 V
Rated impulse voltage for surge voltage class/ pollution degree II/2	6 kV
Rated impulse voltage for surge voltage class/ pollution degree III/2	8 kV
Rated impulse voltage for surge voltage class/ contamination degree III/3	8 kV
Short-time withstand current resistance	3 x 1s mit 1000 A
Clearance, min.	15,1 mm
Creepage distance, min.	15,1 mm

Rated data acc. to CSA

Institute (CSA)	CSA
Certificate No. (CSA)	200039-1842490
Rated voltage (Use group B / CSA)	600 V
Rated voltage (Use group C / CSA)	600 V
Rated voltage (Use group D / CSA)	600 V
Rated current (Use group B / CSA)	60 A
Rated current (Use group C / CSA)	60 A
Rated current (Use group D / CSA)	5 A
Wire cross-section, AWG, min.	AWG 22
Wire cross-section, AWG, max.	AWG 4
Reference to approval values	Specifications are maximum values, details - see approval certificate.

Rated data acc. to UL 1059

Institute (cURus)	CURUS
Certificate No. (cURus)	E60693
Rated voltage (Use group B / UL 1059)	600 V
Rated voltage (Use group C / UL 1059)	600 V
Rated voltage (Use group D / UL 1059)	600 V
Rated current (Use group B / UL 1059)	60 A
Rated current (Use group C / UL 1059)	60 A
Rated current (Use group D / UL 1059)	5 A
Wire cross-section, AWG, min.	AWG 22
Wire cross-section, AWG, max.	AWG 4
Reference to approval values	Specifications are maximum values, details - see approval certificate.

Packing

Packaging	Box
VPE length	353 mm
VPE width	139 mm
VPE height	49 mm

Type tests

Test: Durability of markings	Standard: taking pattern from DIN EN 61984 section 7.3.2 / 04.02 DIN EN 60068-2-70 / 07.96 Test: mark of origin, type identification, pitch, approval marking cULus, type of material, durability Evaluation: available
Test: Clampable cross section	Standard: DIN EN 60999-1 section 7 and 9.1 / 12.00, DIN EN 60947-1 section 8.2.4.5.1 / 12.99 Conductor type: Type of conductor and conductor cross-section: solid 0.5 mm² Type of conductor and conductor cross-section: stranded 0.5 mm² Type of conductor and conductor cross-section: solid 16 mm² Type of conductor and conductor cross-section: stranded 16 mm² Type of conductor and conductor cross-section: AWG 22/1 Type of conductor and conductor cross-section: AWG 22/19 Type of conductor and conductor cross-section: AWG 6/1 Type of conductor and conductor cross-section: AWG 6/19 Evaluation: passed
Test for damage to and accidental loosening of conductors	Standard: DIN EN 60999-1 section 9.4 / 12.00 Requirement: 0.2 kg Conductor type: Type of conductor and conductor cross-section: solid 0.2 mm² Evaluation: passed Requirement: 0.3 kg Conductor type: Type of conductor and conductor cross-section: stranded 0.5 mm² Type of conductor and conductor cross-section: AWG 22/1 Type of conductor and conductor cross-section: AWG 22/19 Evaluation: passed Requirement: 2.9 kg Conductor type: Type of conductor and conductor cross-section: solid 16 mm² Type of conductor and conductor cross-section: stranded 16 mm² Type of conductor and conductor cross-section: AWG 6/7 Evaluation: passed
Pull-out test	Standard: DIN EN 60999-1 section 9.5 / 12.00 Requirement: ≥10 N Conductor type: Type of conductor and conductor cross-section: solid 0.2 mm² Evaluation: passed Requirement: ≥15 N Conductor type: Type of conductor and conductor cross-section: AWG 22/1 Type of conductor and conductor cross-section: AWG 22/19 Evaluation: passed Requirement: ≥20 N Conductor type: Type of conductor and conductor cross-section: H05V-K0.5 Evaluation: passed Requirement: ≥100 N Conductor type: Type of conductor and conductor cross-section: H07V-U16 Type of conductor and conductor cross-section: H07V-K16 Type of conductor and conductor cross-section: AWG 6/7 Evaluation: passed

Important note

IPC conformity

Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request.

Notes

Additional variants on request

Rated current related to rated cross-section & min. No. of poles.

Wire end ferrule with plastic collar to DIN 46228/4

Wire end ferrule without plastic collar to DIN 46228/1

P on drawing = pitch

Rated data refer only to the component itself. Clearance and creepage distances to other components are to be designed in accordance with the relevant application standards.

For all applications with flange we recommend to fix the pin header with the help of the soldering flange or a self-tapping screw on the board.

In accordance with IEC 61984, OMNIMATE-connectors are connectors without breaking capacity (COC). During designated use, connectors are not allowed to be engaged or disengaged when live or under load

Long term storage of the product with average temperature of 50 °C and maximum humidity 70%, 36 months

Downloads

Approval/Certificate/Document of Conformity	[Declaration of the Manufacturer](https://mdcop.weidmueller.com/mediadelivery/asset/900_39474)
Engineering Data	[CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_64906)
Eplan Data Portal	[Eplan data](https://dataportal.eplan.com/part-details/WEI.1924740000)
CADENAS eCATALOG	[CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1924740000)
Product Change Notification	[20220208 Visual change Temporarily different color for connectors and accessories](https://mdcop.weidmueller.com/mediadelivery/asset/900_251161) [20220208 Visuelle Änderung Vorübergehend anderer Farbton für Steckverbinder und Zubehör](https://mdcop.weidmueller.com/mediadelivery/asset/900_251162)
User Documentation	[QR-Code product handling video](https://mdcop.weidmueller.com/mediadelivery/asset/900_78428)
Catalogues	[Catalogues in PDF-format](LINK/Catalog.html)
Brochures	[FL DRIVES EN](http://download.weidmueller.com/asset/download/file/40061) [MB DEVICE MANUF. EN](http://download.weidmueller.com/asset/download/file/38257) [PO OMNIMATE EN](http://download.weidmueller.com/asset/download/file/38132) [FL DRIVES DE](http://download.weidmueller.com/asset/download/file/40062) [FL HEATING ELECTR EN](http://download.weidmueller.com/asset/download/file/38195) [FL APPL_INVERTER EN](http://download.weidmueller.com/asset/download/file/38256) [FL_BASE_STATION_EN](http://download.weidmueller.com/asset/download/file/38194) [FL ELEVATOR EN](http://download.weidmueller.com/asset/download/file/38203) [FL POWER SUPPLY EN](http://download.weidmueller.com/asset/download/file/38213) [FL 72H SAMPLE SER EN](http://download.weidmueller.com/asset/download/file/38294) [PO OMNIMATE EN](http://download.weidmueller.com/asset/download/file/38132)

Classifications

ETIM 6.0	EC002638
ETIM 7.0	EC002638
ETIM 8.0	EC002638
ETIM 9.0	EC002638
ECLASS 9.0	27-44-03-09
ECLASS 9.1	27-44-03-09
ECLASS 10.0	27-44-03-09
ECLASS 11.0	27-46-02-02
ECLASS 12.0	27-46-02-02
ECLASS 13.0	27-46-02-02
ECLASS 14.0	27-46-02-02

Approvals

Approvals	![CSA](/picture/CSA.gif) ![CURUS](/picture/CURUS.gif)
ROHS	Conform
UL File Number Search	[UL Website](LINK/UL_search.html)
Certificate No. (cURus)	E60693
