Eigenschappen

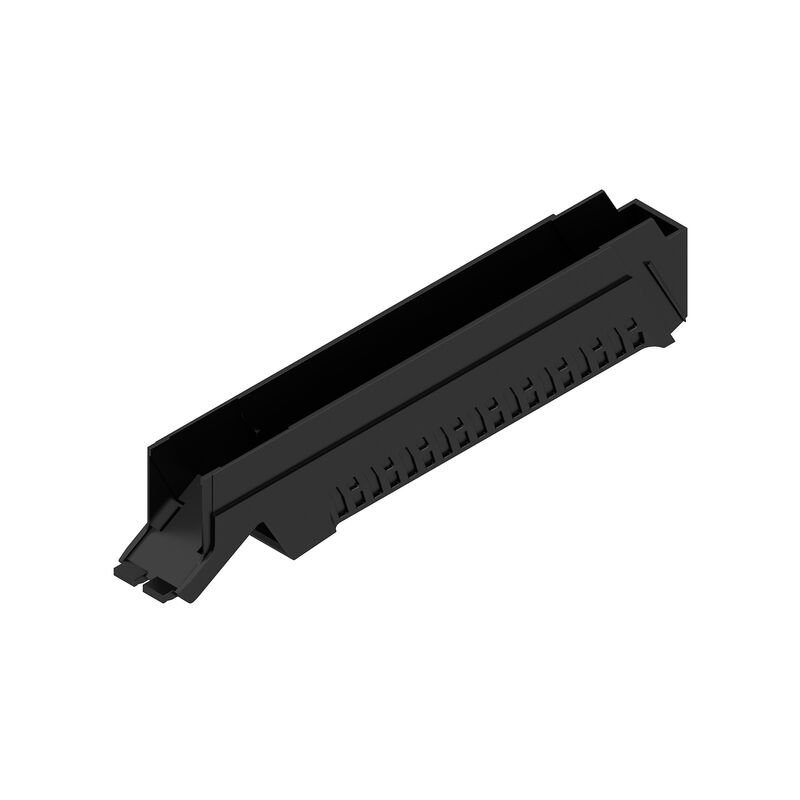

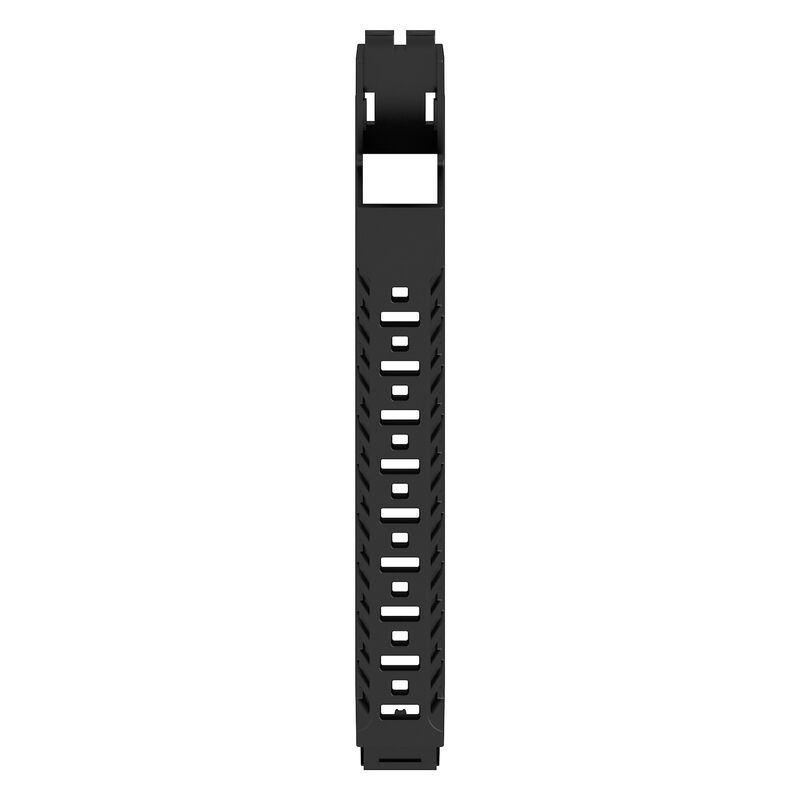

| Version | Side element, OMNIMATE Housing - series CH20M black, Side element, Width: 12.5 mm |
| Order No. | 1104210000 |
| Type | CH20M12 S PSCSC BK 2010 |
| GTIN (EAN) | 4032248878772 |
| Qty. | 14 items |

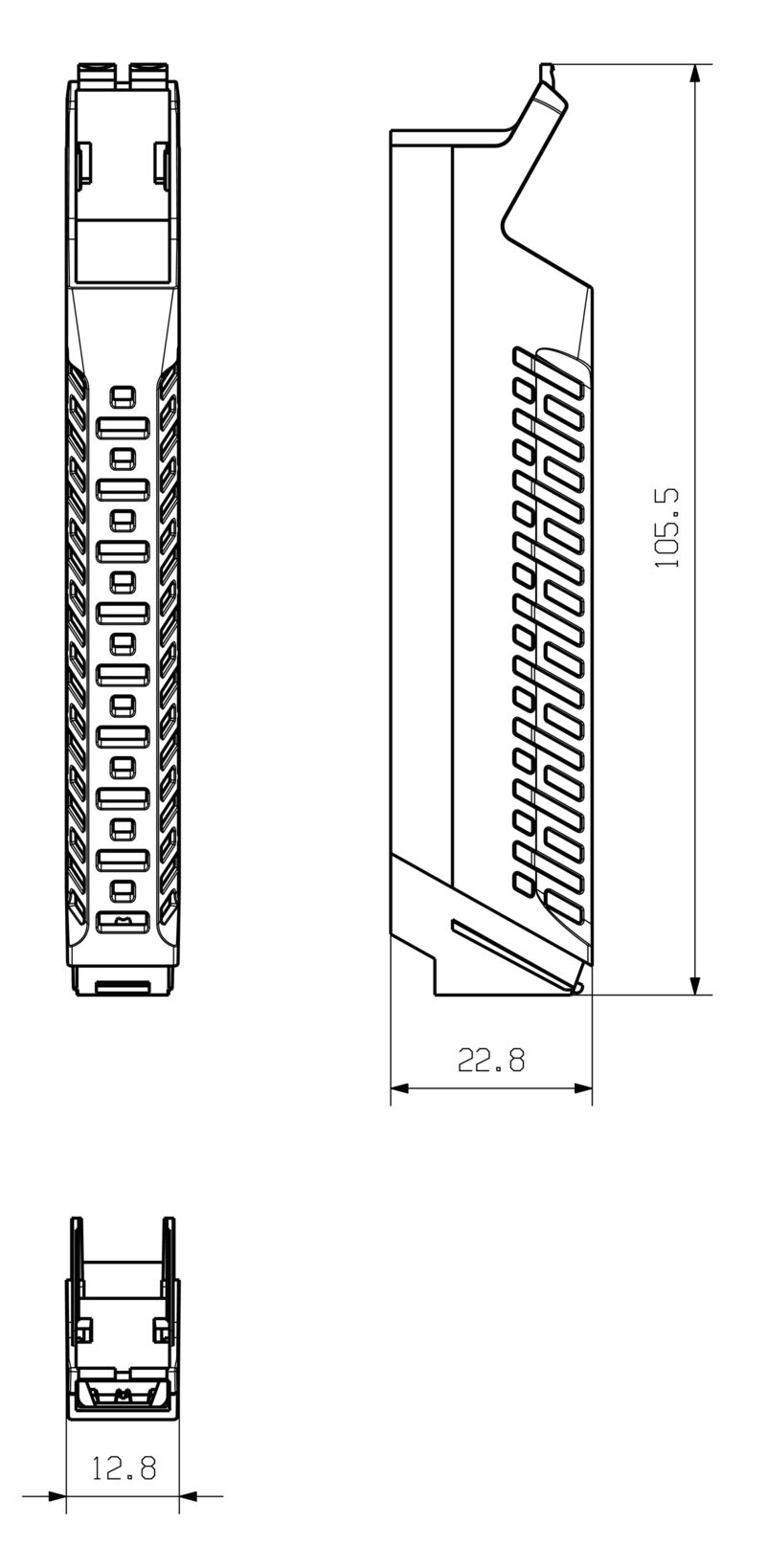

| Depth | 105,5 mm |
| Depth (inches) | 4,154 inch |
| Height | 22,8 mm |
| Height (inches) | 0,898 inch |
| Width | 12,5 mm |
| Width (inches) | 0,492 inch |
| Net weight | 7,76 g |
| Operating temperature range | -40 °C...120 °C |
| Humidity | 5 - 93% rel. humidity, Tu = 40°C, no condensation |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Comparative Tracking Index (CTI) | 600 ≤ CTI |
| Insulating material | PA 66 GF 30 |
| Insulating material group | I |
| Material | Plastic |
| Surface finish | untreated |
| UL 94 flammability rating | V-0 |
| Colour | black |
| Colour chart (similar) | RAL 9011 |
| Encapsulation option | No |
| Protection degree | IP20 in installed state |
| Cut out as preperation for functional port integrated | No |
| Number of connection levels | 1 |
| Number of poles, max. | 2 |
| Number of slots for female plugs | 1 |
| Number of ventilation openings | 2 |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_70145) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.1104210000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1104210000) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| Brochures |
[FL ANALO.SIGN.CONV. EN](http://download.weidmueller.com/asset/download/file/38237)
[MB DEVICE MANUF. EN](http://download.weidmueller.com/asset/download/file/38257) [FL MACHINE SAFETY EN](http://download.weidmueller.com/asset/download/file/38228) [FL 72H SAMPLE SER EN](http://download.weidmueller.com/asset/download/file/38294) [PO OMNIMATE EN](http://download.weidmueller.com/asset/download/file/38132) [PO OMNIMATE EN](http://download.weidmueller.com/asset/download/file/38132) |
| ETIM 7.0 | EC001031 |
| ETIM 8.0 | EC001031 |
| ETIM 9.0 | EC001031 |
| ECLASS 11.0 | 27-18-27-92 |
| ECLASS 12.0 | 27-18-27-92 |
| ECLASS 13.0 | 27-19-06-02 |
| ECLASS 14.0 | 27-19-06-02 |
| ROHS | Conform |
