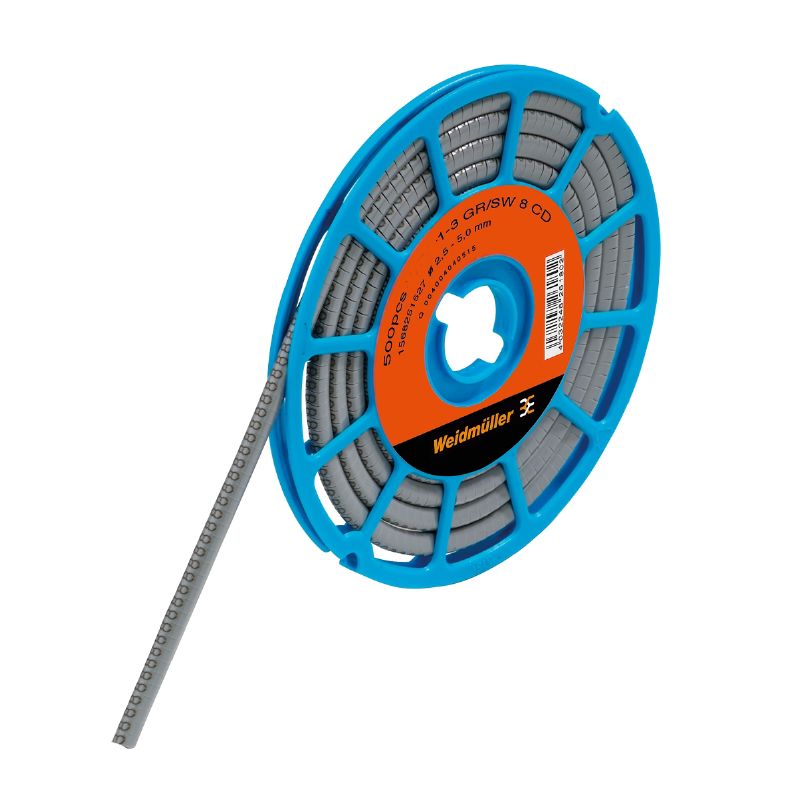

CLI C 1-3 GR/SW 8 CD

CableLine, Conductor and cable markers, 2.5 - 5 mm, 3 x 4.2 mm, grey

Product ID 1568251527

Version	CableLine, Conductor and cable markers, 2.5 - 5 mm, 3 x 4.2 mm, grey
Order No.	1568251527
Type	CLI C 1-3 GR/SW 8 CD
GTIN (EAN)	4032248261956
Qty.	500 items

Operating temperature range

-30...80 °C

RoHS Compliance Status	Compliant without exemption
REACH SVHC	No SVHC above 0.1 wt%

Colour	grey
Colour of printing	black
Halogen	Yes
Insulation cross-section, max.	5
Material	PVC, soft, without Cadmium
Material colour according to resistance code	8
Number of markers per combination	1 Reel = Conductor and cable markers
Number of markers per packaging unit	Form of supply: Reel
Operating temperature range	-30...80 °C
Operating temperature range, max.	80 °C
Operating temperature range, min.	-30 °C
Orientation of print	horizontal
Printed characters	Numbers
Printing	8
Printing method	hot-embossing
Recommended industries	Process Machinery
Type of printing	Standard
UL 94 flammability rating	V-0
Version	CD
Width	4,2 mm

Conductor cross-section, max.	4 mm²
Conductor cross-section, min.	1,5 mm²
Conductor O.D.	2.5 - 5 mm
Conductor O.D., max.	5 mm
Conductor O.D., min.	2,5 mm
Cross-section for connected wire	1.5 - 4 mm²
Halogen	Yes

Eplan Data Portal	[Eplan data](https://dataportal.eplan.com/part-details/WEI.1568251527)
Product Change Notification	[PCN CableLine_DE](https://mdcop.weidmueller.com/mediadelivery/asset/900_49687) [PCN CableLine_EN](https://mdcop.weidmueller.com/mediadelivery/asset/900_49688)
Catalogues	[Catalogues in PDF-format](LINK/Catalog.html)

ROHS

Conform
