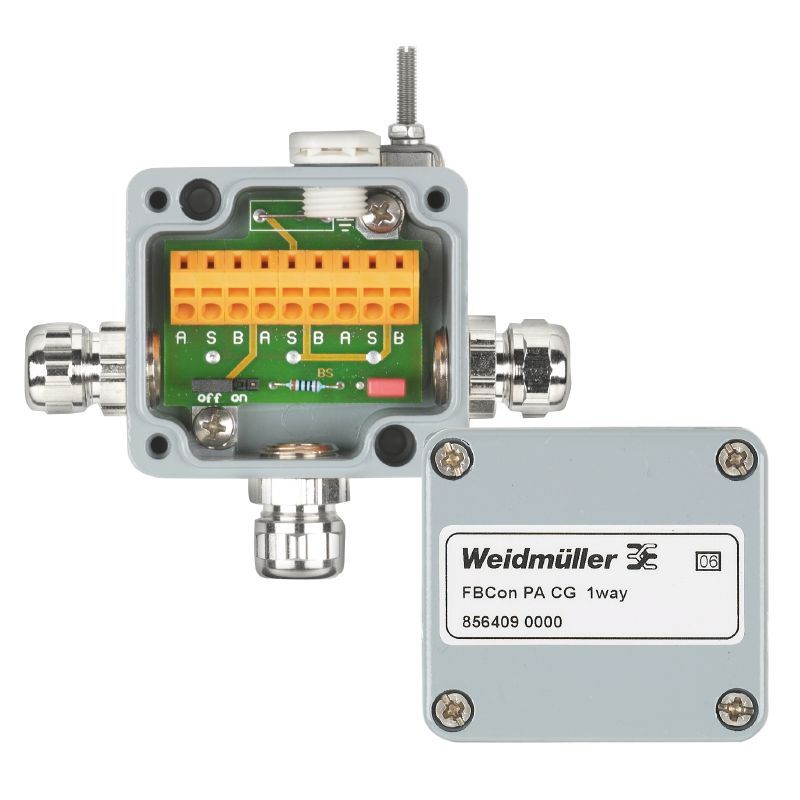

Standard distributor with current limiting, 1-channel distributor LIMITER, IP66, IP67, Round

Product ID 2623870000
Gegevensblad downloaden Engineeringondersteuning Productdownloads
Verwante producten 22
Approvals General ordering data Dimensions and weights Temperatures Probability of failure Environmental Product Compliance Connection data Technical data Part description Classifications

Approvals

Approvals
![](https://assets.dam.weidmueller.com/assets/api/0d1637a4-c7dd-4915-8bc8-4c9de8d8b393/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate no. (cULus)
E141197

General ordering data

Version
Standard distributor with current limiting, 1-channel distributor LIMITER, IP66, IP67, Round
Order No.
2623870000
Type
FBCON PA CG 1WAY LIMITER
GTIN (EAN)
4050118627381
Qty.
1 items
Delivery status
Discontinued
Last order date
/Date(1764457200000)/

Dimensions and weights

Depth
34 mm
Depth (inches)
1,339 inch
Height
34 mm
Height (inches)
1,339 inch
Width
64 mm
Width (inches)
2,52 inch
Net weight
266 g

Temperatures

Storage temperature
-40 °C...80 °C
Operating temperature
-40 °C...75 °C
Humidity
5...95 %, no condensation

Probability of failure

SIL enligt IEC 61508
None

Environmental Product Compliance

RoHS Compliance Status
Compliant with exemption
RoHS Exemption (if applicable/known)
6c, 7a, 7cI
REACH SVHC
Lead 7439-92-1
SCIP
3a5f5913-76fc-4ff5-8563-4463f80bbe02

Connection data

Clamping range, min.
4 mm²
Clamping range, max.
6 mm²

Technical data

Buszrendszer
Profibus-PA
Foundation Fieldbus
Cable entry
Round
Conductor O.D., max.
9,5 mm
Degré de pollution
3
Design of housing
With pressure compensation element
Diámetro externo del conductor, min.
6,5 mm
Housing main material
Aluminium
AISi12
Aluminum
Kabelová těsnění
Brass cable gland
Limitazione di corrente
adjustable
20 mA, 40 mA, 60 mA
Number of poles
3
Pobór mocy w stanie gotowości
7 mA
Protection degree
IP66
IP67
Type of distribution
1-channel distributor LIMITER
Type of mounting
surface-mounted
Поверхность корпуса
powder coating
작동 전압
30 V

Part description

Product description
The device is an active field distributor for the fieldbus systems Profibus PA and Foundation Fieldbus H1. The device complies with protection class IP66/IP67. Functional description The device connects up to eight field devices with one fieldbus segment. An adjustable current monitoring per spur line protects the trunk line from short circuits or overload (see figure B1). Suppressor diodes protect the connected field devices from surge voltages. A red LED indicates a short circuit or overload on the spur line. A green LED indicates sufficient voltage supply on the trunk line. The device supports earthing concepts with multi-point screen earthing or single-point screen earthing. The earthing concepts are explained in the Profibus PA and Foundation Fieldbus guidelines.
