Eigenschappen

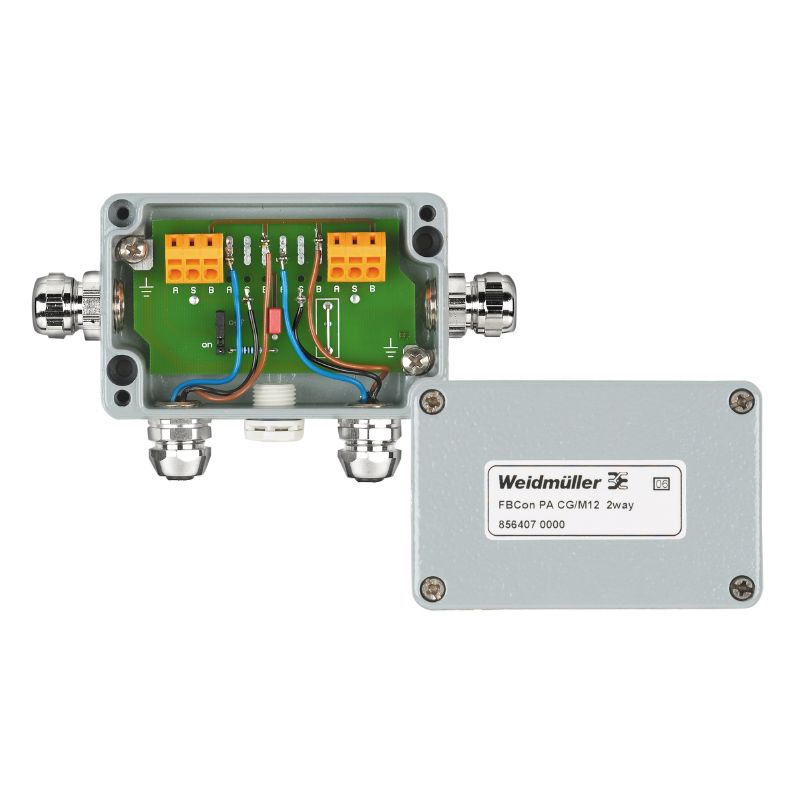

| Version | Standard distributor, 2-way distributor, IP66, Branch line M12 |
| Order No. | 8564070000 |
| Type | FBCON PA CG/M12 2WAY |
| GTIN (EAN) | 4032248236602 |
| Qty. | 1 items |
| Height | 37 mm |
| Height (inches) | 1,457 inch |
| Width | 64 mm |
| Width (inches) | 2,52 inch |
| Length | 98 mm |
| Length (inches) | 3,858 inch |
| Net weight | 344 g |
| Storage temperature | -40 °C...80 °C |
| Operating temperature | -40 °C...75 °C |
| SIL in compliance with IEC 61508 | None |
| RoHS Compliance Status | Compliant with exemption |
| RoHS Exemption (if applicable/known) | 6bI, 6c, 7cI |
| REACH SVHC | Lead 7439-92-1 |
| SCIP | 3a5f5913-76fc-4ff5-8563-4463f80bbe02 |
| Bus system |
Profibus-PA
Foundation Fieldbus |
| Cable entry | Branch line M12 |
| Cable glands | Brass cable gland |
| Conductor O.D., max. | 9,5 mm |
| Conductor O.D., min. | 5,5 mm |
| Connection type PE | M12 spur line |
| Contact carrier material | Brass |
| Contact material | CuZnAu |
| Design of housing | With pressure compensation element |
| Housing main material |
Aluminium
Aluminum |
| Number of contact sockets | 2 |
| Operating voltage | 10 ... 31 V DC |
| Operating voltage Umax, max. | 32 V |
| Pollution severity | 3 |
| Protection degree | IP66 |
| Type of distribution | 2-way distributor |
| Type of mounting | surface-mounted |
| Approval/Certificate/Document of Conformity |
[Certification UL for Canada](https://mdcop.weidmueller.com/mediadelivery/asset/900_317640)
[Certification UL for US](https://mdcop.weidmueller.com/mediadelivery/asset/900_317641) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_317598) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=8564070000) |
| Product Change Notification | [20220208 Technical change to FBCon field distributors (passive, with aluminum housings)](https://mdcop.weidmueller.com/mediadelivery/asset/900_251153) |
| Software | [WI-Segment-Calculator](https://mdcop.weidmueller.com/mediadelivery/asset/900_90759) |
| User Documentation |
[Application-Guide-Planning and installing Fieldbus networks-using-FBCon_english_deutsch](https://mdcop.weidmueller.com/mediadelivery/asset/900_90760)
[FBCon Segment Calculator_english](https://mdcop.weidmueller.com/mediadelivery/asset/900_101984) [Instruction sheet](https://mdcop.weidmueller.com/mediadelivery/asset/900_317163) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC001604 |
| ETIM 7.0 | EC001604 |
| ETIM 8.0 | EC001604 |
| ETIM 9.0 | EC001604 |
| ECLASS 9.0 | 27-24-26-08 |
| ECLASS 9.1 | 27-24-26-08 |
| ECLASS 10.0 | 27-24-26-08 |
| ECLASS 11.0 | 27-24-26-08 |
| ECLASS 12.0 | 27-44-01-11 |
| ECLASS 13.0 | 27-44-01-11 |
| ECLASS 14.0 | 27-44-01-11 |
| Approvals |  |
| ROHS | Conform |
| UL File Number Search | [UL Website](LINK/UL_search.html) |
| Certificate no. (cULus) | E141197 |
Toebehoren
-
Product ID:1785120200VPE:1 items
Bus line, One end without connector, M12, Number of poles: 2, 2 m, pin, straight, Shielded: Yes, LED: No, Sheath material: PVC, Halogen: Yes
-
Product ID:1719550000VPE:100 items
GWDR NP (flat gasket - neoprene), Sealing ring, PG 9, Neoprene
-
Product ID:1569070000VPE:50 items
VG MS (standard brass cable gland), Cable glands, straight, PG 9, 6 mm, OD min. 4 - OD max. 8 mm, IP54, IP66, IP67, IP68 - 5 bar (30 min.), IP69K, Brass, nickel-plated
-
Product ID:1772210000VPE:50 items
VG MS (standard brass cable gland), Cable glands, straight, M 16, 7 mm, OD min. 4 - OD max. 8 mm, IP54, IP66, IP67, IP68 - 5 bar (30 min.), IP69K, Brass, nickel-plated
-
