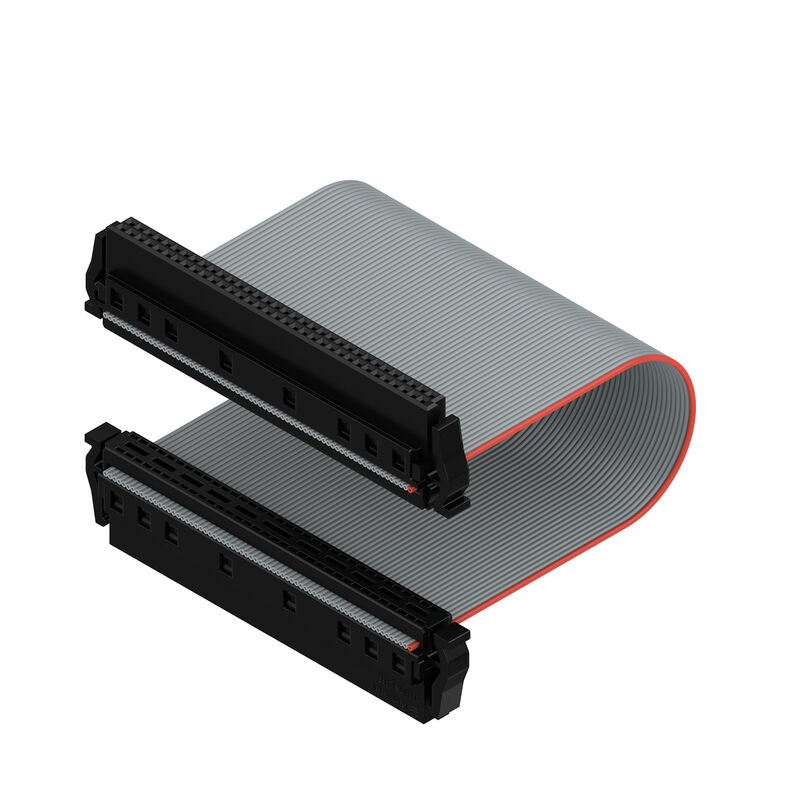

Product image
FC10 TN/68A S1 B BX

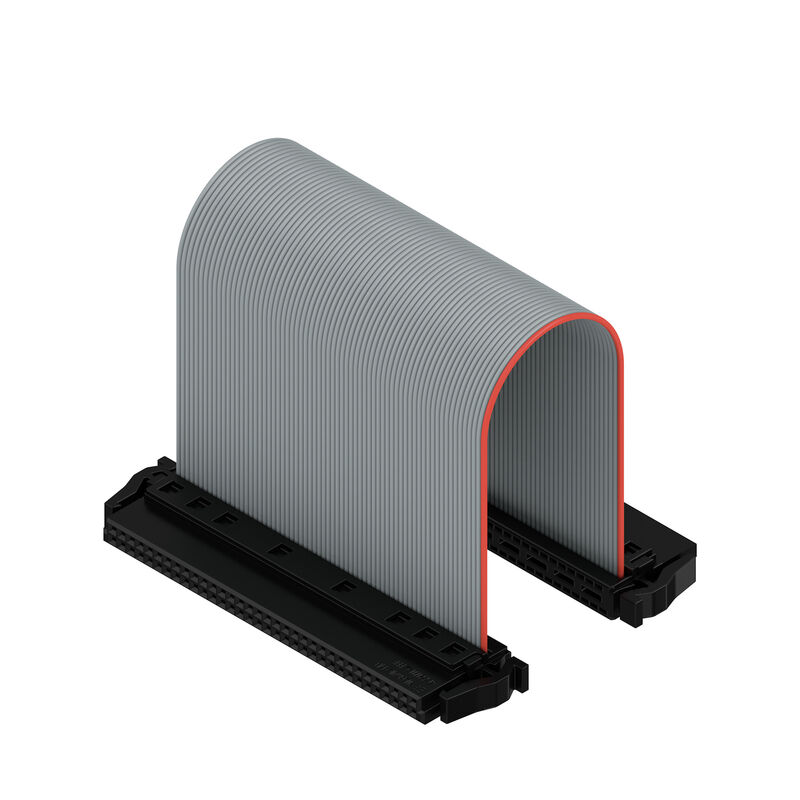

Product image
FC10 TN/68A S1 B BX
FC10 TN/68A S1 B BX
FC10 TN/68A S1 B BX

FC10 TN/68A S1 B BX

PCB plug-in connector, female plug, Pitch in mm (P): 1.27 mm, Number of poles: 68, Box

Produkt ID 2827330000
Download datablad Engineering Support Product Downloads
Anvendte produkter 27
Approvals General ordering data Rozměry a hmotnosti Environmental Product Compliance System Parameters Material data Conductors suitable for connection Rated data acc. to IEC Packing Important note Classifications

Approvals

ROHS
Conform

General ordering data

Version
PCB plug-in connector, female plug, Pitch in mm (P): 1.27 mm, Number of poles: 68, Box
Order No.
2827330000
Type
FC10 TN/68A S1 B BX
GTIN (EAN)
4064675363934
Qty.
10 Styk
Product data
IEC: / 1.9 A
UL:
Packaging
Box

Rozměry a hmotnosti

Net weight
14,4 g

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

System Parameters

Product family
OMNIMATE Signal - Board-to-Board
Type of connection
Insulation displacement connection (IDC)
Wire connection method
IDC terminal
Cable length
100 mm
Pitch in mm (P)
1,27 mm
Pitch in inches (P)
0,05 "
Conductor outlet direction
90°/270°
Number of poles
68
Number of rows
2
Pin series quantity
2
Tipo de protección
IP20
Volume resistance
<25 mΩ
Plugging cycles
500
Plugging force/pole, max.
0,6 N
Force d'extraction/pôle, max.
0,6 N

Material data

Insulating material
LCP
Colour
grey
Colour chart (similar)
RAL 7035
Insulation resistance
≥ 20 MΩ
Moisture Level (MSL)
1
UL 94 flammability rating
V-0
Contact base material
Copper alloy
Material de contacto
Aleación de Cu
Contact surface
Ni/Au
Layer structure of plug contact
≥ 2 µm Ni / ≥ 0.4 µm PdNi / ≥ 0.05 µm Au
Température de stockage, min.
-40 °C
보관 온도, 최대
70 °C
작동 온도, 최소
-40 °C
Temperatura pracy, max.
125 °C

Conductors suitable for connection

Wire connection cross section AWG, min.
AWG 30/1, 30/7
Wire connection cross section AWG, max.
AWG 30/1, 30/7

Rated data acc. to IEC

Rated current, min. number of poles (Tu=20°C)
1,9 A
Clearance, min.
0,4 mm
Creepage distance, min.
0,4 mm

Packing

Packaging
Box
VPE length
155 mm
VPE width
64 mm
VPE height
38 mm

Important note

IPC conformity
Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request.

Classifications

ETIM 8.0
EC002599
ETIM 9.0
EC002599
ETIM 10.0
EC002599
ECLASS 14.0
27-06-03-08
ECLASS 15.0
27-06-03-08
