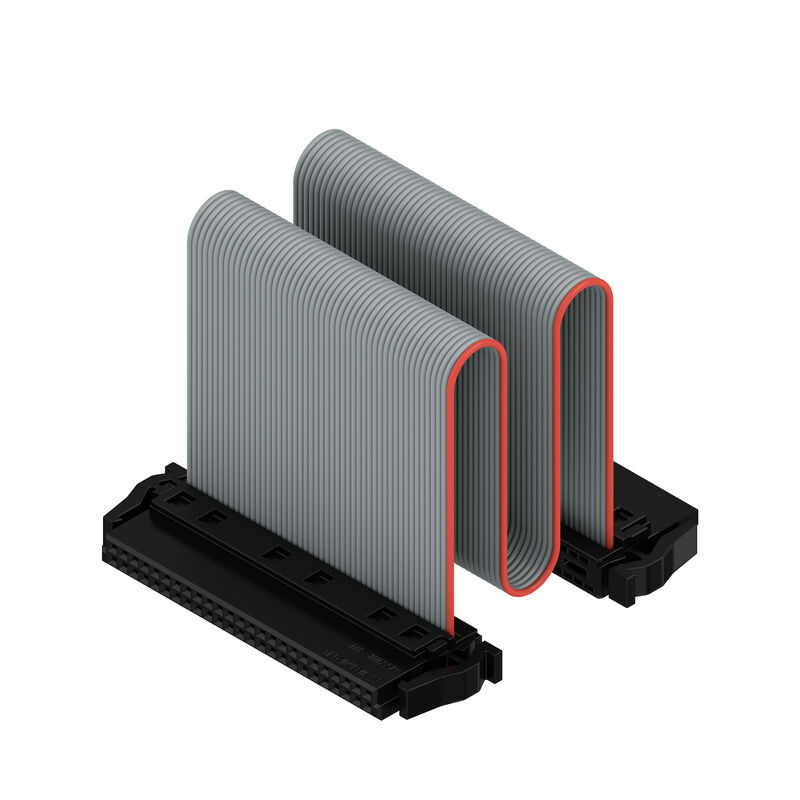

FC20 TN/50A S1 B BX
Product image
FC20 TN/50A S1 B BX
Product image
FC20 TN/50A S1 B BX
FC20 TN/50A S1 B BX
FC20 TN/50A S1 B BX

FC20 TN/50A S1 B BX

PCB plug-in connector, female plug, Pitch in mm (P): 1.27 mm, Number of poles: 50, Box

Product ID 2827280000
Gegevensblad downloaden Engineering Support Product Downloads
Verwante producten 27
Approvals General ordering data Dimensions and weights Environmental Product Compliance System Parameters Material data Conductors suitable for connection Rated data acc. to IEC Packing Important note Classifications

Approvals

ROHS
Conform

General ordering data

버전
PCB plug-in connector, female plug, Pitch in mm (P): 1.27 mm, Number of poles: 50, Box
Nr zam.
2827280000
유형
FC20 TN/50A S1 B BX
GTIN (EAN)
4064675363880
Qty.
10 items
Product data
IEC: / 1.9 A
UL:
Packaging
Box

Dimensions and weights

Net weight
14,2 g

Environmental Product Compliance

RoHS 준수 상태
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

System Parameters

Product family
OMNIMATE Signal - Board-to-Board
Anschlussart
Insulation displacement connection (IDC)
Técnica de conexión de conductores
IDC terminal
Cable length
200 mm
Raszter mm-ben (P)
1,27 mm
Pitch in inches (P)
0,05 "
Conductor outlet direction
90°/270°
Number of poles
50
Number of rows
2
Pin series quantity
2
Protection degree
IP20
Volume resistance
<25 mΩ
Plugging cycles
500
Plugging force/pole, max.
0,6 N
Pulling force/pole, max.
0,6 N

Material data

Insulating material
LCP
Colour
grey
Tabela kolorów (podobny)
RAL 7035
Insulation resistance
≥ 20 MΩ
Moisture Level (MSL)
1
UL 94 flammability rating
V-0
Contact base material
Copper alloy
Contact material
Cu-alloy
Contact surface
Ni/Au
Layer structure of plug contact
≥ 2 µm Ni / ≥ 0.4 µm PdNi / ≥ 0.05 µm Au
Storage temperature, min.
-40 °C
Storage temperature, max.
70 °C
Operating temperature, min.
-40 °C
Operating temperature, max.
125 °C

Conductors suitable for connection

Поперечное сечение подключаемого провода AWG, мин.
AWG 30/1, 30/7
Wire connection cross section AWG, max.
AWG 30/1, 30/7

Rated data acc. to IEC

Märkström, min. antal poler (Tu=20°C)
1,9 A
Clearance, min.
0,4 mm
Creepage distance, min.
0,4 mm

Packing

Embalaje
Box
Longitud de VPE
155 mm
Anchura VPE
64 mm
VPE height
38 mm

Important note

IPC 준수
Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request.

Classifications

ETIM 8.0
EC002599
ETIM 9.0
EC002599
ETIM 10.0
EC002599
ECLASS 14.0
27-06-03-08
ECLASS 15.0
27-06-03-08
