Eigenschappen

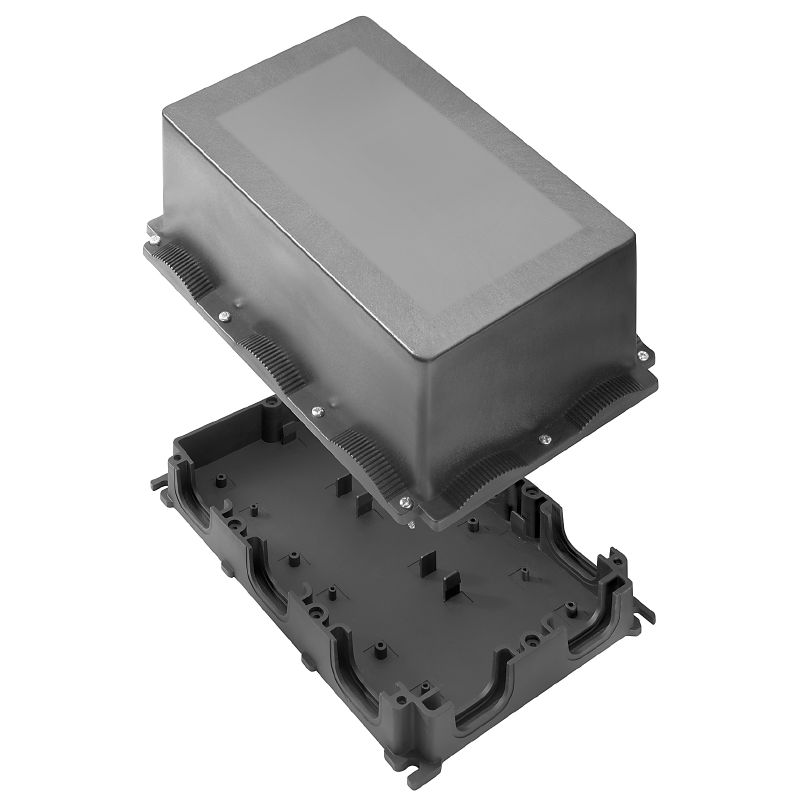

| Version | FieldPower® enclosures, 196 mm, 284 mm, 155 mm, IP65, in complete state, glass-fibre reinforced polycarbonate, black |
| Order No. | 2632930000 |
| Type | FP ENC BSBS 155 3M |
| GTIN (EAN) | 4050118664508 |
| Qty. | 1 items |
| Depth | 155 mm |
| Depth (inches) | 6,102 inch |
| Height | 196 mm |
| Height (inches) | 7,717 inch |
| Width | 284 mm |
| Width (inches) | 11,181 inch |
| Net weight | 990,86 g |
| Storage temperature | -40 °C...85 °C |
| Operating temperature | -40 °C...85 °C |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | Potassium perfluorobutane sulfonate 29420-49-3 |
| SCIP | 5f19cd84-8946-4797-9386-3ac323b95c10 |
| Material | Polycarbonate, glass fibre reinforced |
| Enclosure material | glass-fibre reinforced polycarbonate |
| Silicone | No |
| Colour | black |
| Protection degree |
IP65
in complete state |
| UL 94 flammability rating | 5VA |
| Torque for lid screws | 2 Nm |
| Lid attachment | TX20 screws |
| Type of mounting |
Screw mounting
Fixing lugs |
| Installation advice | Lid screws included |
| Approval/Certificate/Document of Conformity |
[UL Certificate FieldPower® complete enclosures](https://mdcop.weidmueller.com/mediadelivery/asset/900_252846)
[Manufacturer's Declaration FieldPower® Enclosure parts](https://mdcop.weidmueller.com/mediadelivery/asset/900_263559) |
| Engineering Data |
[CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_205604)
[Application notes -- Application note FieldPower® size 2 and 3 plastic enclosure temperature information](https://mdcop.weidmueller.com/mediadelivery/asset/900_245107) [Application notes -- Applikationshinweis FieldPower® Größe 2 und 3 Kunststoffgehäuse Temperaturbewertung](https://mdcop.weidmueller.com/mediadelivery/asset/900_245108) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=2632930000) |
| User Documentation | [Manual FieldPower® enclosure size 3](https://mdcop.weidmueller.com/mediadelivery/asset/900_79207) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000261 |
| ETIM 7.0 | EC000261 |
| ETIM 8.0 | EC000261 |
| ETIM 9.0 | EC000261 |
| ECLASS 9.0 | 27-18-01-01 |
| ECLASS 9.1 | 27-18-92-90 |
| ECLASS 10.0 | 27-18-01-01 |
| ECLASS 11.0 | 27-18-01-01 |
| ECLASS 12.0 | 27-18-01-01 |
| ECLASS 13.0 | 27-18-01-01 |
| ECLASS 14.0 | 27-18-01-01 |
| Approvals |  |
| ROHS | Conform |
| UL File Number Search | [UL Website](LINK/UL_search.html) |
| Certificate no. (cULus) | E256877 |
Toebehoren
-
Product ID:1772460000VPE:100 items
SKMU PA (plastic locknut), Locknut, M 20, 6 mm, Polyamid 6 (PA6 - GF30)
-
Product ID:1957620000VPE:1 items
FieldPower® contact element, AC, IP20, Insulation displacement connection (IDC), PUSH IN, Number of poles : 5
-
-
Product ID:2811470000VPE:50 items
VG K (standard plastic cable gland), Cable glands, straight, M 20, 10 mm, OD min. 10 - OD max. 14 mm, IP54, IP66, IP67, IP68 - 5 bar (30 min.), Polyamide 6
-
Product ID:1772300000VPE:50 items
VG K (standard plastic cable gland), Cable glands, straight, M 20, 10 mm, OD min. 6 - OD max. 12 mm, IP54, IP66, IP67, IP68 - 5 bar (30 min.), Polyamide 6
-
Product ID:2633510000VPE:5 items
Field Power® terminal rail, Steel, galvanized, 142 mm, for plastic lid
-
Product ID:2633520000VPE:5 items
Field Power® terminal rail, Steel, galvanized, 230 mm, for plastic lid
-
Product ID:2633460000VPE:5 items
Field Power® terminal rail, Steel, galvanized, 230 mm, for base part
-
Product ID:2633450000VPE:5 items
Field Power® terminal rail, Steel, galvanized, 142 mm, for base part
-
Product ID:1170690000VPE:10 items
Field Power® terminal rail, Steel, galvanized, 54 mm, for base part
-
Product ID:1534930000VPE:1 items
FieldPower® contact element, DC, IP20, Insulation displacement connection (IDC), PUSH IN, Number of poles : 5
-
Product ID:1269960000VPE:1 items
FieldPower® contact element, AC, IP20, Insulation displacement connection (IDC), PUSH IN, Number of poles : 5
-
Product ID:2491870000VPE:10 items
Field Power® sealing insert, Seal, IP54, with corresponding enclosure, EPDM
-
Product ID:2443760000VPE:10 items
Field Power® sealing insert, Slotted sealing insert, IP54, in combination with RKDG D17 PT6, with corresponding enclosure, TPE-V
-
Product ID:1069060000VPE:10 items
Field Power® sealing insert, Seal, IP54, with corresponding enclosure, EPDM
-
Product ID:1114530000VPE:10 items
Field Power® sealing insert, Seal, IP54, with corresponding enclosure, EPDM
-
Product ID:4323240000VPE:10 items
Field Power® sealing insert, Blank seal, IP65, with corresponding enclosure, EPDM
-
Product ID:4324010000VPE:10 items
Field Power® sealing insert, Foldable seal, IP65 with corresponding housing, IP65, with corresponding enclosure, EPDM
-
Product ID:2443800000VPE:10 items
Field Power® sealing insert, Slotted sealing insert, IP54, in combination with RKDG D17 PT6, with corresponding enclosure, TPE-V
-
Product ID:4323210000VPE:10 items
Field Power® sealing insert, Foldable seal, IP65 with corresponding housing, IP65, with corresponding enclosure, EPDM
-
Product ID:2545550000VPE:1 items
Field Power® sealing insert, Seal with connection thread, IP65, with corresponding enclosure, EPDM
-
Product ID:4329610000VPE:10 items
Field Power® sealing insert, Foldable seal, IP65 with corresponding housing, IP65, with corresponding enclosure, EPDM
-
Product ID:4323220000VPE:10 items
Field Power® sealing insert, Foldable seal, IP65 with corresponding housing, IP65, with corresponding enclosure, EPDM
-
Product ID:2545540000VPE:1 items
Field Power® sealing insert, Seal with connection thread, IP65, with corresponding enclosure, EPDM
-
Product ID:4323230000VPE:10 items
Field Power® sealing insert, Foldable seal, IP65 with corresponding housing, IP65, with corresponding enclosure, EPDM
-
Product ID:1532200000VPE:1 items
Adapter, Field Power® sealing insert, HQ adapter, IP65, with corresponding enclosure, Polycarbonate, glass fibre reinforced, lockable: No
-
Product ID:1532210000VPE:1 items
Adapter, Field Power® sealing insert, HQ adapter, IP65, with corresponding enclosure, Polycarbonate, glass fibre reinforced, lockable: Yes
-
-
Product ID:1126840000VPE:1 items
FieldPower® contact element, DC, IP20, Insulation displacement connection (IDC), PUSH IN, Number of poles : 5
Afzonderlijke onderdelen
-
Product ID:2632810000VPE:1 items
FieldPower® enclosures, 196 mm, 284 mm, 42 mm, IP65, in closed state, glass-fibre reinforced polycarbonate, black
-
Product ID:2632820000VPE:1 items
FieldPower® enclosures, 191 mm, 279 mm, 113 mm, IP65, in complete state, glass-fibre reinforced polycarbonate, black
