Eigenschappen

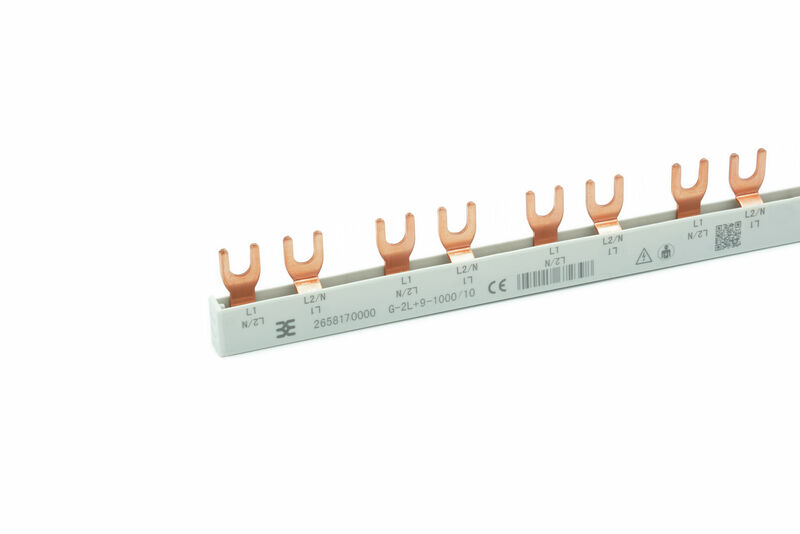

| Version | Phase busbar (Terminals), 63, Number of poles: 46, Insulated: Yes, 10 |
| Order No. | 2658170000 |

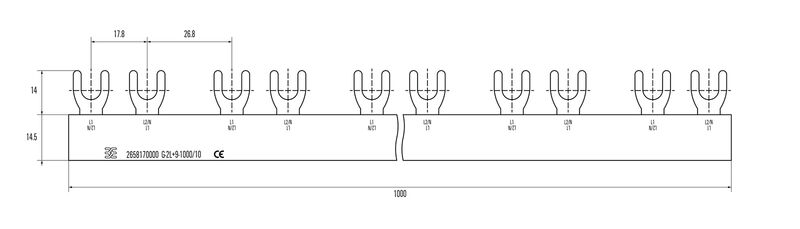

| Type | G-2L+9-1000/10 |
| GTIN (EAN) | 4050118672350 |
| Qty. | 25 items |
| Depth | 9,3 mm |
| Depth (inches) | 0,366 inch |
| Height | 28,5 mm |
| Height (inches) | 1,122 inch |
| Width | 1.016 mm |
| Width (inches) | 40 inch |
| Net weight | 65,52 g |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Colour | grey |
| Explosion-tested version | No |
| Pitch in mm (P) | 17,8 mm |
| Number of poles | 46 |
| Rated cross-section | 10 mm² |
| Rated voltage | 400 V |
| Rated current | 63 A |
| Approval/Certificate/Document of Conformity | [CE Declaration of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_165103) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 7.0 | EC000215 |
| ETIM 8.0 | EC000215 |
| ETIM 9.0 | EC000215 |
| ECLASS 11.0 | 27-37-13-06 |
| ECLASS 12.0 | 27-37-13-06 |
| ECLASS 13.0 | 27-37-13-06 |
| ECLASS 14.0 | 27-37-13-06 |
| Approvals |  |
| ROHS | Conform |
Toebehoren
-
-
-
-
-
-
Product ID:2659040000VPE:10 items
Terminal cover, yellow, Height: 18.3 mm, Width: 8.1 mm, Depth: 18 mm
-
Product ID:2658980000VPE:10 items
Terminal cover, grey, Height: 9.3 mm, Width: 8.2 mm, Depth: 14.5 mm
