G-3L-1000/10 C

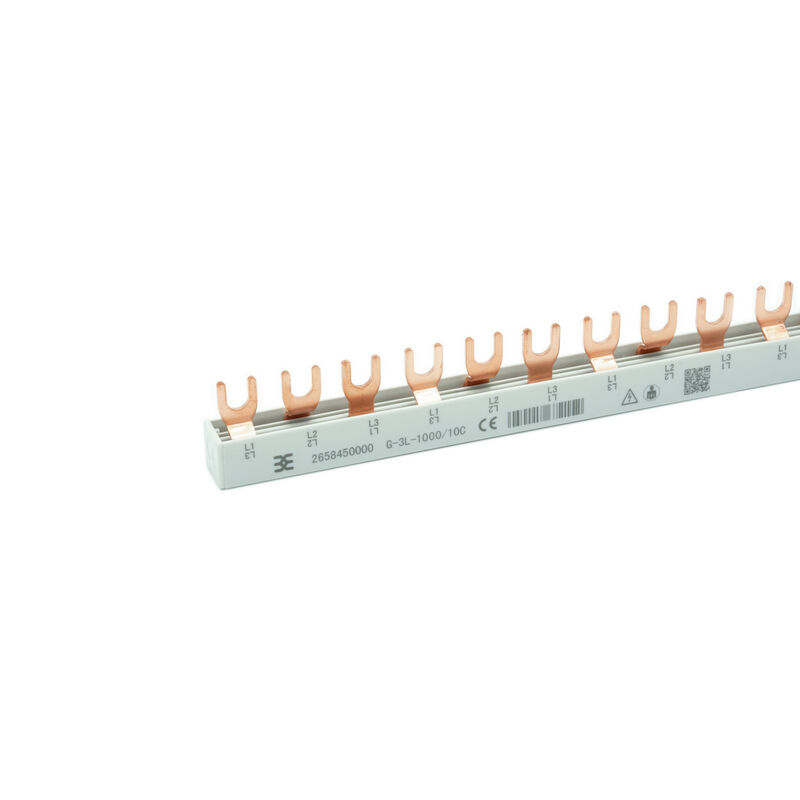

Product image
Similar to illustration
G-3L-1000/10 C

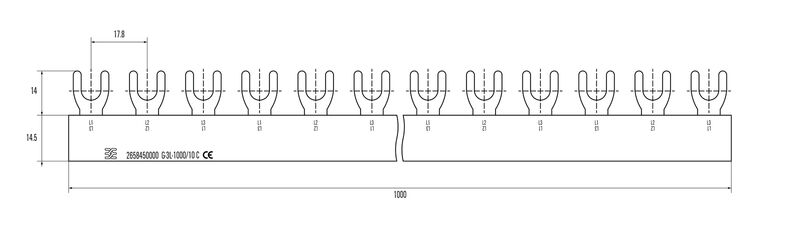

Drawing
G-3L-1000/10 C

G-3L-1000/10 C

Tämä tuote ei ole enää saatavana.

Phase busbar (Terminals), 63, Number of poles: 57, Insulated: Yes, 10

Tuotteen tunnus 2658450000
Lataa tietosivu Product Downloads
Approvals General ordering data Dimensions and weights Temperatures Shoda produktu s prostředím Material data Additional technical data Mått General Rating data Besorolások

Approvals

Approvals
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319222/-S800/-T1z1mm-S80)
ROHS
준수

General ordering data

Version
Phase busbar (Terminals), 63, Number of poles: 57, Insulated: Yes, 10
Order No.
2658450000
Type
G-3L-1000/10 C
GTIN (EAN)
4050118672077
Qty.
20 adet
Delivery status
This article will no longer be available in the future.
Available until
01.06.2025

Dimensions and weights

Depth
15,4 mm
Tiefe (inch)
0,606 inch
Height
31 mm
Hauteur (pouces)
1,22 inch
Width
1 016 mm
Width (inches)
40 inch
Net weight
114,5 g

Temperatures

Ambient temperature
-5 °C…40 °C

Shoda produktu s prostředím

RoHS Compliance Status
Compliant without exemption
REACH SVHC
0.1 wt% 이상의 SVHC 없음

Material data

Colour
grey

Additional technical data

Explosion-tested version
No

Mått

Pitch in mm (P)
17,8 mm

General

Number of poles
57

Rating data

Rated cross-section
10 mm²
Rated voltage
400 V
Znamionowe natężenie prądu
63 A

Besorolások

ETIM 8.0
EC000215
ETIM 9.0
EC000215
ETIM 10.0
EC000215
ECLASS 14.0
27-37-13-06
ECLASS 15.0
27-37-13-06
