G-3L-27-1000/10
G-3L-27-1000/10

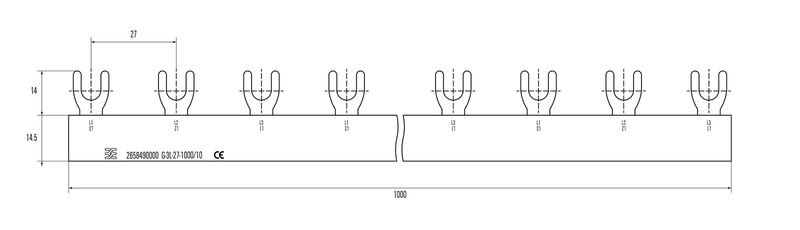

Drawing
G-3L-27-1000/10

G-3L-27-1000/10

Dit product is niet meer beschikbaar.

Phase busbar (Terminals), 63, Number of poles: 36, Insulated: Yes, 10

Product ID 2658490000
Gegevensblad downloaden Product Downloads
Toebehoren 5
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Material data Additional technical data Dimensions General Rating data Product images Classifications

Approvals

Dopuszczenia
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319222/-S800/-T1z1mm-S80)
ROHS
Conform

General ordering data

Verze
Phase busbar (Terminals), 63, Number of poles: 36, Insulated: Yes, 10
Číslo objednávky
2658490000
Típus
G-3L-27-1000/10
GTIN (EAN)
4050118672039
Förp.
20 items
Delivery status
This article will no longer be available in the future.
Available until
01.06.2025

Dimensions and weights

Profundidad
15,4 mm
Depth (inches)
0,606 inch
Posizione verticale
31 mm
Height (inches)
1,22 inch
Largeur
1 016 mm
Width (inches)
40 inch
Net weight
105,75 g

Temperatures

Температура окружающей среды
-5 °C…40 °C

Environmental Product Compliance

Status zgodności z dyrektywą RoHS
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

Material data

Colour
grey

Additional technical data

Проверенное на взрывозащищенность исполнение
No

Dimensions

Delning i mm (P)
27 mm

General

Количество полюсов
36

Rating data

Расчетное сечение
10 mm²
Номинальное напряжение
400 V
Nominal current
63 A

Product images

Classifications

ETIM 8.0
EC000215
ETIM 9.0
EC000215
ETIM 10.0
EC000215
ECLASS 14.0
27-37-13-06
ECLASS 15.0
27-37-13-06
