Eigenschappen

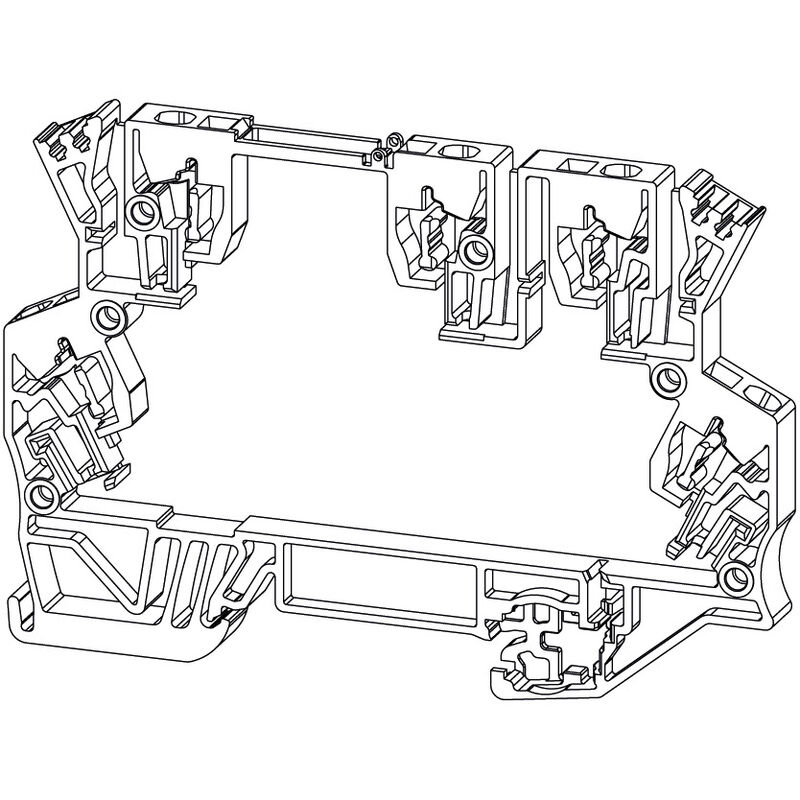

| Version | Mounting rail housing, OMNIMATE Housing - TERMINALBOX grey-beige, Housing base part, Connection technology, FE contact, Width: 6 mm |
| Order No. | 2312290000 |
| Type | GH MCZUE1.5/UE 1674 |
| GTIN (EAN) | 4032248726738 |
| Qty. | 100 items |
| Height | 63 mm |
| Height (inches) | 2,48 inch |
| Width | 6 mm |
| Width (inches) | 0,236 inch |
| Length | 91 mm |
| Length (inches) | 3,583 inch |
| Net weight | 12,76 g |
| Comparative Tracking Index (CTI) | 600 ≤ CTI |
| Insulating material | PA 66 |
| Insulating material group | I |
| UL 94 flammability rating | V-0 |
| Colour | grey-beige |
| Encapsulation option | Yes |
| Protection degree | IP20 |
| Rail |
TS 32
TS 35 |
| PCB thickness | 1 mm |
| Tolerance for the PCB shape | ±0.1 mm |
| Tolerance of circuit board thickness | ±0.1 mm |
| Alternitive colours | More on request |
| Customer specific cutouts possible | No |
| Customer specific labelling possible | Yes |
| Number of connection levels | 2 |
| Number of PCBs, max. | 1 |
| Cross-connection | Yes |
| Type of connection |
without
Connection element |
| Flip cover mountable | Yes |
| Marker integrateable | Yes |
| Cut out in clip-on foot area as preperation for |
PE-contact
Contact included! |
| Engineering Data |
[CAD data -- PCB contour with soldering pads](https://mdcop.weidmueller.com/mediadelivery/asset/900_72615)
[CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_212815) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| Brochures |
[FL ANALO.SIGN.CONV. EN](http://download.weidmueller.com/asset/download/file/38237)
[MB DEVICE MANUF. EN](http://download.weidmueller.com/asset/download/file/38257) [FL MACHINE SAFETY EN](http://download.weidmueller.com/asset/download/file/38228) [FL 72H SAMPLE SER EN](http://download.weidmueller.com/asset/download/file/38294) [PO OMNIMATE EN](http://download.weidmueller.com/asset/download/file/38132) [PO OMNIMATE EN](http://download.weidmueller.com/asset/download/file/38132) |
| ETIM 7.0 | EC001031 |
| ETIM 8.0 | EC001031 |
| ETIM 9.0 | EC001031 |
| ECLASS 11.0 | 27-18-27-92 |
| ECLASS 12.0 | 27-18-27-92 |
| ECLASS 13.0 | 27-19-06-01 |
| ROHS | Conform |
Toebehoren
-
Product ID:1527970000VPE:60 items
Cross-connector (terminal), Plugged, Number of poles: 4, Pitch in mm (P): 6.10, Insulated: Yes, 32 A, orange
-
Product ID:2561670000VPE:5 items
Cross-connector (terminal), Plugged, Number of poles: 32, Pitch in mm (P): 6.00, Insulated: Yes, 32 A, orange
-
Product ID:1527940000VPE:60 items
Cross-connector (terminal), Plugged, Number of poles: 3, Pitch in mm (P): 6.10, Insulated: Yes, 32 A, orange
-
Product ID:1527980000VPE:60 items
Cross-connector (terminal), Plugged, Number of poles: 5, Pitch in mm (P): 6.10, Insulated: Yes, 32 A, orange
-
Product ID:1528070000VPE:20 items
Cross-connector (terminal), Plugged, Number of poles: 9, Pitch in mm (P): 6.10, Insulated: Yes, 32 A, orange
-
Product ID:1527990000VPE:20 items
Cross-connector (terminal), Plugged, Number of poles: 6, Pitch in mm (P): 6.10, Insulated: Yes, 32 A, orange
-
Product ID:1528020000VPE:20 items
Cross-connector (terminal), Plugged, Number of poles: 7, Pitch in mm (P): 6.10, Insulated: Yes, 32 A, orange
-
Product ID:1528090000VPE:20 items
Cross-connector (terminal), Plugged, Number of poles: 10, Pitch in mm (P): 6.10, Insulated: Yes, 32 A, orange
-
Product ID:1528030000VPE:20 items
Cross-connector (terminal), Plugged, Number of poles: 8, Pitch in mm (P): 6.10, Insulated: Yes, 32 A, orange
-
Product ID:2561580000VPE:5 items
Cross-connector (terminal), Plugged, Number of poles: 30, Pitch in mm (P): 6.10, 32 A, orange
-
Product ID:1528130000VPE:5 items
Cross-connector (terminal), Plugged, Number of poles: 50, Pitch in mm (P): 6.10, Insulated: Yes, 32 A, orange
-
Product ID:1527930000VPE:60 items
Cross-connector (terminal), Plugged, Number of poles: 2, Pitch in mm (P): 6.10, Insulated: Yes, 32 A, orange
-
-
